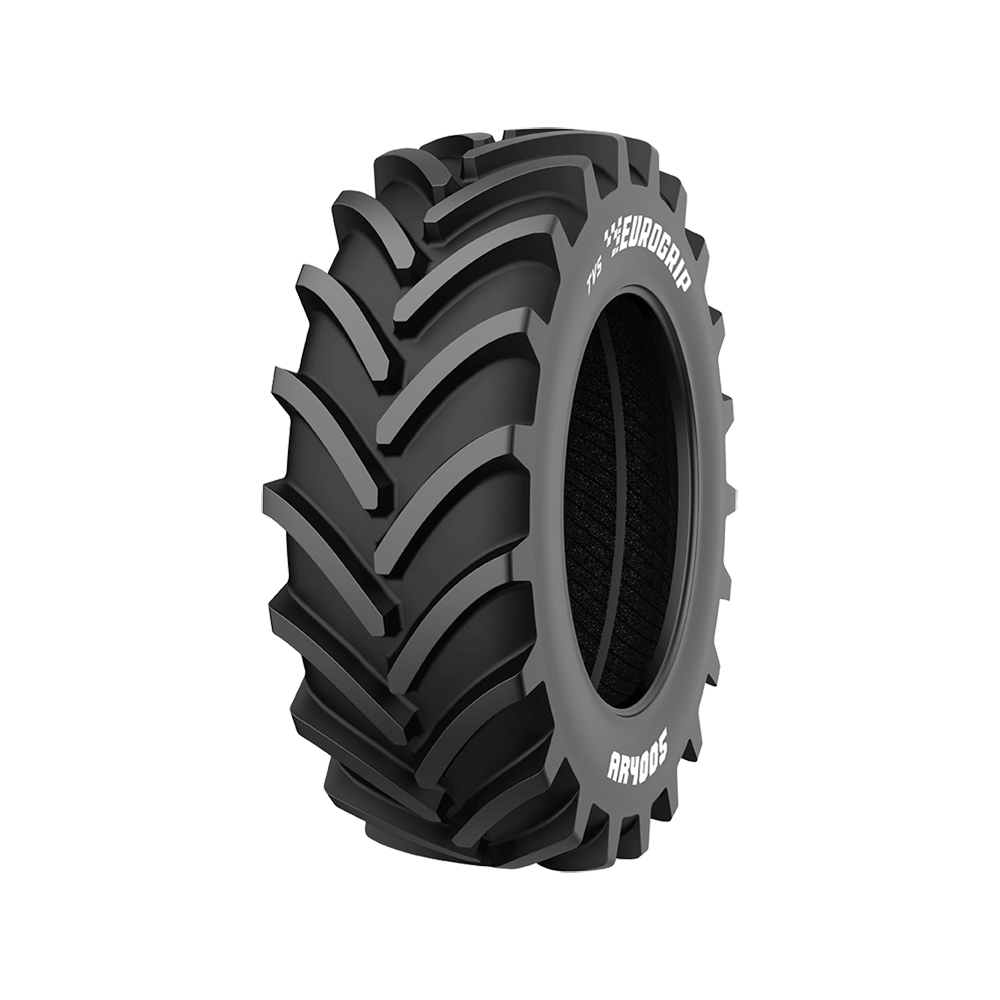

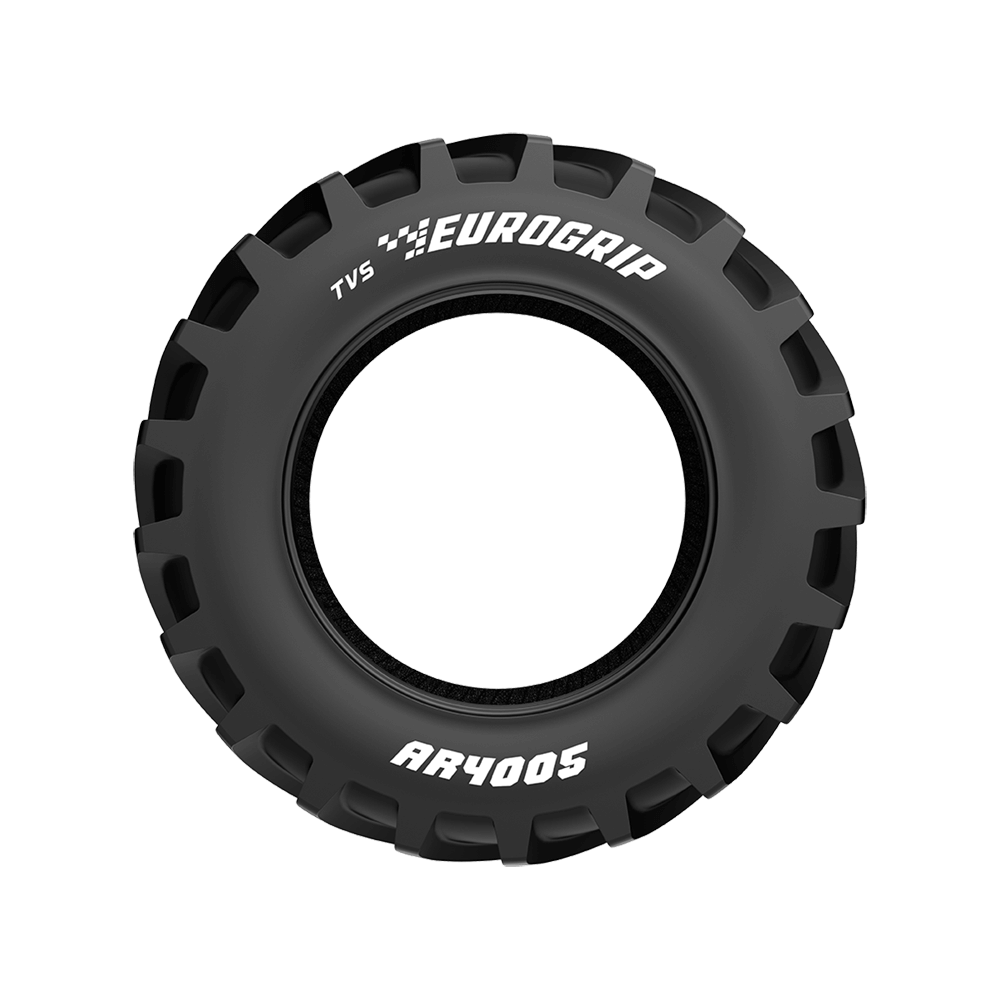

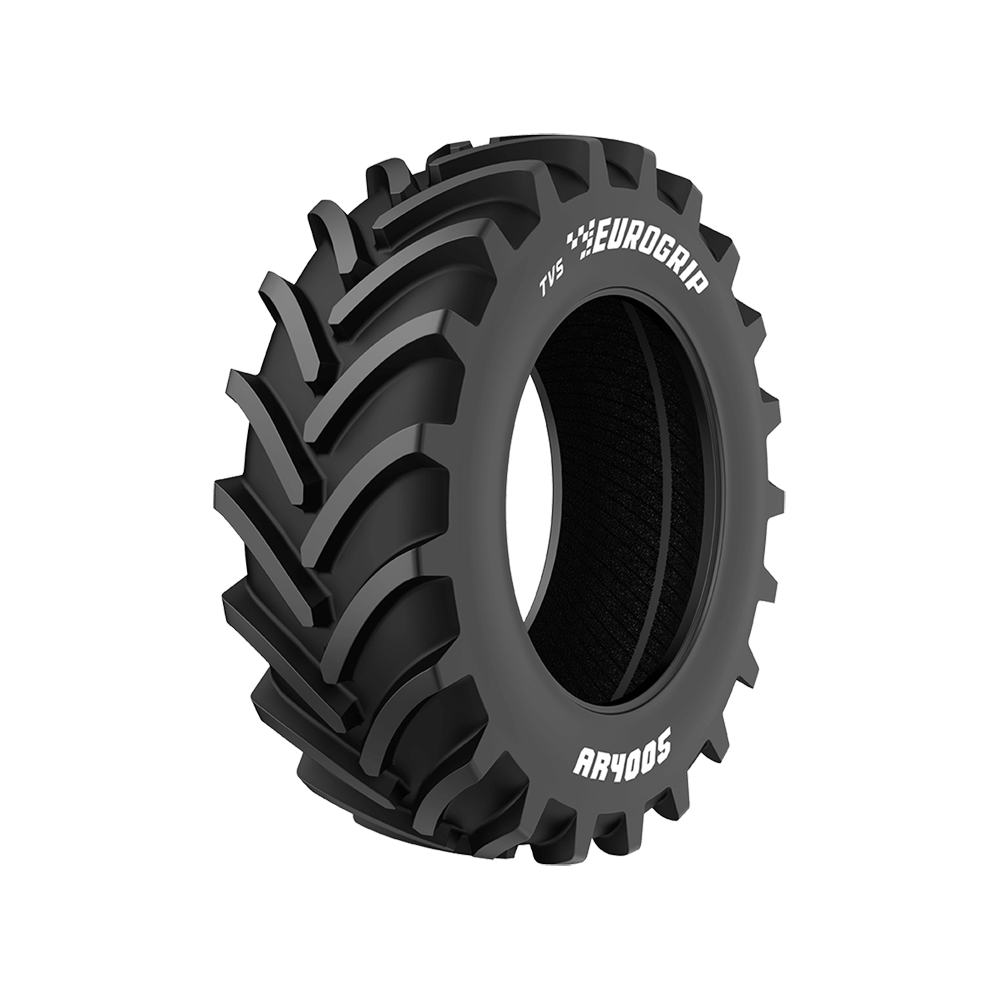

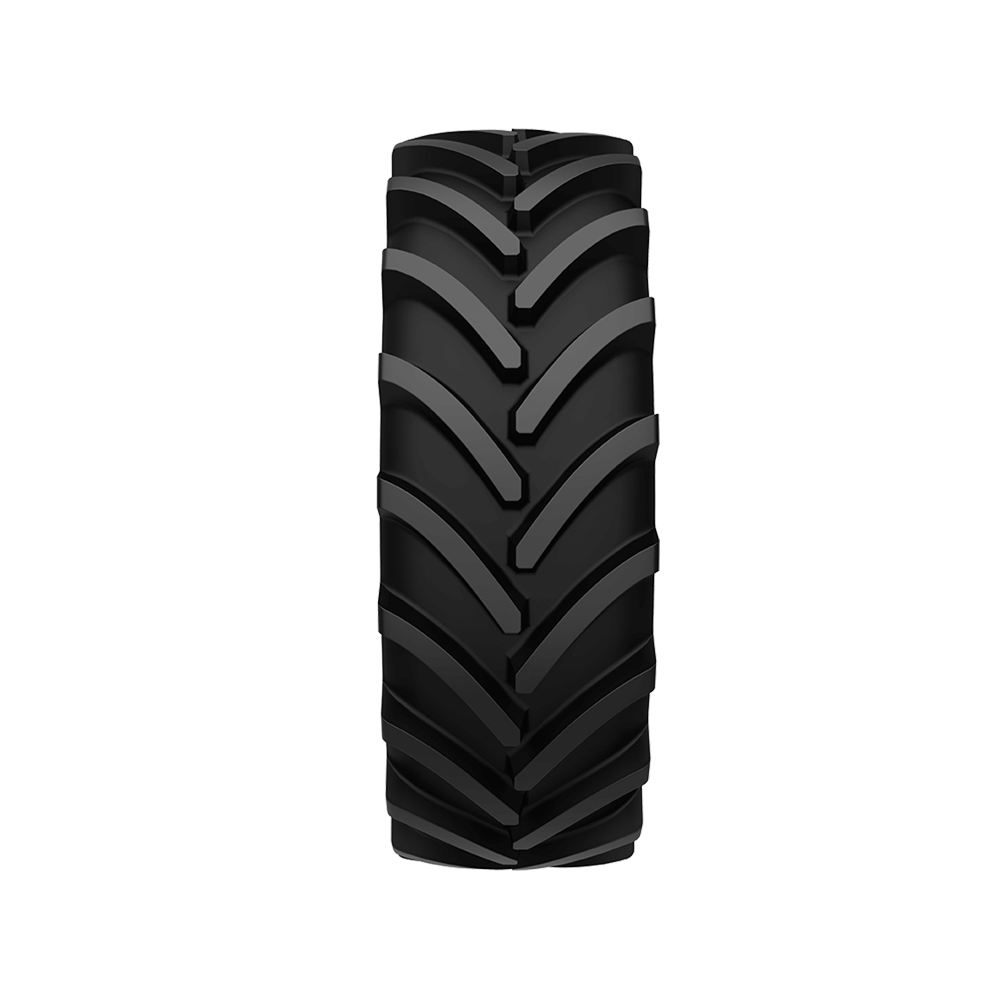

AR 4005

The MaxFlex AR 4005 is a robust Steel Belted tyre with contemporary VF Construction, which can carry upto 40% more load at same pressure or operate at upto 40% less pressure at same load when compared to standard tyres. Its optimized lug angles provide high traction in hard pull applications in field & are ideal for supeior roadability. The premium wear resistance compound to improves work life & overall durability.

AR 4005 Product Range Tractor Rim Sizes: 28″ 30″ 38″ 42″

 R-1W
 D
 Radial
Suitable for
https://www.tvseurogripoht.com/?suitable-for=combine-harvester

Tractor MFWD

Tractor 4WD

https://www.tvseurogripoht.com/?suitable-for=combine-harvester

Combine Harvester

Manure Spreader

Know more about this product

Enquire
Enquire now
Enquire now
Technical Data

IMPERIAL

METRIC

Technical Table 01

TYRE SIZE RIM SIZE REC. RIM ALT. RIM UNLOADED DIMENSIONS (mm) PLY RATING LOAD INDEX SPEED SYMBOL
SW OD SLR RC
15.0/70-18 18 W13 W17
W19 		400 980 440 2886 14 128 A8
16 132 A9
Technical Data
MM IN
Tyre Size REC. RIM ALT. RIM Unloaded dimension Loaded Static
Radius (in)		 Rolling Circ.
(in)		 LI & SS
SW (in) OD (in)
VF480/60R28 DW16L W16L, W18L, DW18L, NRO: W15L 18.5 50.7 22.4 149.9 149D | 146E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 9380 4490 4230 4160 4070 4070 4070 3700 5700 4160 - -
15 10750 5130 4850 4760 4670 4670 4670 4250 6540 4760 - -
17 11960 5730 5400 5310 5200 5200 5200 4740 7270 5310 - -
23 14690 7030 6650 6520 6390 6390 6390 5810 8940 6520 - -
29 16480 7890 7440 7310 7160 7160 7160 6610 10020 7310 - -
VF520/60R28 DW18L W18L, NRO: DW16L 20.5 52.7 23.6 155.0 149D | 146E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 10750 5130 4850 4760 4670 4670 4670 4250 6540 4760 - -
15 11960 5730 5400 5310 5200 5200 5200 4740 7270 5310 - -
17 13810 6610 6230 6120 6000 6000 6000 5460 8410 6120 - -
20 15200 7270 6870 6740 6610 6610 6610 6010 9250 6740 - -
23 16480 7890 7440 7310 7160 7160 7160 6610 10020 7310 - -
VF540/65R28 DW20B W18L, DW18L, NRO: DW16L 21.6 55.6 24.6 162.9 154D | 151E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 12310 5880 5570 5460 5350 5350 5350 4870 7490 5460 - -
15 14190 6780 6410 6300 6170 6170 6170 5620 8630 6300 - -
17 15570 7440 7050 6920 6770 6770 6770 6170 9490 6920 - -
20 17490 8370 7910 7750 7600 7600 7600 6920 10640 7750 - -
23 19010 9100 8590 8440 8260 8260 8260 7600 11560 8440 - -
VF600/60R28 DW20B DW21B 23.1 56.3 24.7 164.6 157D | 154E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 13440 6430 6080 5950 5840 5840 5840 5310 8170 5950 7910 6630
15 15200 7270 6870 6740 6610 6610 6610 6010 9250 6740 8950 7500
17 16980 8130 7670 7530 7380 7380 7380 6720 10330 7530 10000 8370
20 19010 9100 8590 8440 8260 8260 8260 7510 11560 8440 11190 9370
23 20900 10000 9450 9270 9090 9090 9090 8260 12730 9270 12310 10310
VF600/60R28 DW20B DW21B 23.1 56.3 24.7 164.6 160D | 157E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 13440 6430 6080 5950 5840 5840 5840 5310 8170 5950 7910 6630
15 15200 7270 6870 6740 6610 6610 6610 6010 9250 6740 8950 7500
17 16980 8130 7670 7530 7380 7380 7380 6720 10330 7530 10000 8370
23 20900 10000 9450 9270 9090 9090 9090 8260 12730 9270 12310 10310
29 22800 10900 10310 10110 9910 9910 9910 9090 13880 10110 13440 11260
VF600/65R28 DW21B DW20B, NRO: DW18L 23.6 58.7 26.0 172.5 163D | 159E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 14690 7030 6650 6520 6390 6390 6390 5810 8940 6520 8660 7250
17 18500 8850 8370 8190 8040 8040 8040 7310 11260 8190 10890 9130
23 22160 10590 10020 9820 9640 9640 9640 8770 13500 9820 13060 10940
29 24690 11810 11170 10950 10740 10740 10740 9640 15040 10950 14550 12190
VF600/70R28 DW21B DW20B 24.4 61.1 27.0 179.8 173D | 170E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 15970 7640 7220 7070 6940 6940 6940 6320 9710 7070 9410 7870
17 20900 10000 9450 9270 9090 9090 9090 8260 12730 9270 12310 10310
23 25330 12110 11450 11230 11010 11010 11010 10020 15420 11230 14920 12500
29 27620 13220 12490 12250 12000 12000 12000 10930 16810 12250 16270 13620
35 29380 14050 13280 13040 12780 12780 12780 11630 17890 13040 17310 14500
41 32930 15750 14890 14600 14320 14320 14320 13220 20040 14600 19410 16260
VF540/65R30 DW20B W18L, DW18L 21.6 57.6 26.1 170.5 161D | 158E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 12670 6060 5730 5620 5510 5510 5510 5020 7710 5620 7470 6260
15 14690 7030 6650 6520 6390 6390 6390 5810 8940 6520 8660 7250
17 15970 7640 7220 7070 6940 6940 6940 6320 9710 7070 9410 7870
23 19630 9380 8880 8700 8540 8540 8540 7780 11960 8700 11560 9690
29 21540 10310 9740 9560 9360 9360 9360 8520 13110 9560 12690 10630
35 23440 11210 10590 10400 10190 10190 10190 9360 14270 10400 13800 11560
VF600/60R30 DW20B DW21B 23.1 58.3 26.0 172.4 162D | 159E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 13810 6610 6230 6120 6000 6000 6000 5460 8410 6120 - -
17 17490 8370 7910 7750 7600 7600 7600 6920 10640 7750 - -
23 21540 10310 9740 9560 9360 9360 9360 8520 13110 9560 - -
29 41810 20000 18900 18550 18170 18170 18170 16520 25440 18550 - -
VF600/70R30 DW21B DW20B 24.4 63.1 28.0 185.0 170D | 167E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 16480 7890 7440 7310 7160 7160 7160 6520 10020 7310 9700 8130
15 19010 9100 8590 8440 8260 8260 8260 7510 11560 8440 11190 9370
17 21540 10310 9740 9560 9360 9360 9360 8520 13110 9560 12690 10630
23 26100 12490 11810 11560 11340 11340 11340 10330 15880 11560 15370 12870
29 28370 13570 12820 12580 12330 12330 12330 11230 17270 12580 16720 14000
35 30400 14540 13740 13480 13220 13220 13220 12000 18500 13480 17910 15000
VF620/75R30 DW23B DW20B, DW21B 25.0 66.0 27.1 183.4 172D | 169E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 18500 8850 8370 8190 8040 8040 8040 7310 11260 8190 10890 9130
15 21540 10310 9740 9560 9360 9360 9360 8520 13110 9560 12690 10630
17 24070 11520 10880 10680 10460 10460 10460 9520 14650 10680 14170 11870
20 26850 12840 12140 11920 11670 11670 11670 10620 16340 11920 15810 13250
23 29380 14050 13280 13040 12780 12780 12780 11630 17890 13040 17310 14500
29 31920 15260 14430 14160 13880 13880 13880 12780 19430 14160 18800 15750
VF710/60R30 DW25B DW24B, DW27B 28.0 63.5 27.8 185.0 171D | 168E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 18000 8610 8130 7970 7820 7820 7820 7110 10950 7970 - -
17 22800 10900 10310 10110 9910 9910 9910 9030 13880 10110 - -
23 27620 13220 12490 12250 12000 12000 12000 10930 16810 12250 - -
29 41810 20000 18900 18550 18170 18170 18170 16520 25440 18550 - -
VF600/65R34 DW21B DW20B, NRO: DW18L 23.5 64.7 29.2 190.3 169D | 166E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 15970 7640 7220 7070 6940 6940 6940 6320 9710 7070 - -
17 20260 9690 9160 8990 8810 8810 8810 8020 12330 8990 - -
23 24690 11810 11170 10950 10740 10740 10740 9780 15040 10950 - -
29 26850 12840 12140 11920 11670 11670 11670 10620 16340 11920 - -
35 29380 14050 13280 13040 12780 12780 12780 11670 17890 13040 - -
VF650/60R34 DW23B DW21B 26.0 65.4 29.1 191.8 168D | 165E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 16480 7890 7440 7310 7160 7160 7160 6520 10020 7310 - -
17 20900 10000 9450 9270 9090 9090 9090 8260 12730 9270 - -
23 26100 12490 11810 11560 11340 11340 11340 10330 15880 11560 - -
29 28370 13570 12820 12580 12330 12330 12330 11340 17270 12580 - -
VF650/65R34 DW23B DW21B, NRO: DW20B 25.7 67.6 30.1 200.2 170D | 167E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 18000 8610 8130 7970 7820 7820 7820 7110 10950 7970 10590 8880
17 22800 10900 10310 10110 9910 9910 9910 9030 13880 10110 13440 11260
23 27620 13220 12490 12250 12000 12000 12000 10930 16810 12250 16270 13620
29 30400 14540 13740 13480 13220 13220 13220 12000 18500 13480 17910 15000
VF710/60R34 DW25B DW24B, DW27B, NRO: DW23B, DW24B 28.0 67.6 29.8 200.8 173D | 170E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 19010 9100 8590 8440 8260 8260 8260 7510 11560 8440 - -
17 24070 11520 10880 10680 10460 10460 10460 9520 14650 10680 - -
23 29380 14050 13280 13040 12780 12780 12780 11630 17890 13040 - -
29 41810 20000 18900 18550 18170 18170 18170 16520 25440 18550 - -
VF600/60R38 DW20B DW21B, NRO: DW18L 23.1 66.3 30.0 197.2 168D | 165E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 15200 7270 6870 6740 6610 6610 6610 6010 9250 6740 - -
17 19630 9380 8880 8700 8540 8540 8540 7780 11960 8700 - -
23 24070 11520 10880 10680 10460 10460 10460 9520 14650 10680 - -
29 26850 12840 12140 11920 11670 11670 11670 10620 16340 11920 - -
35 41810 20000 18900 18550 18170 18170 18170 16520 25440 18550 - -
VF650/60R38 DW23B DW21B, NRO: DW20B 26.3 68.7 30.8 203.5 173D | 170E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 17490 8370 7910 7750 7600 7600 7600 6920 10640 7750 10300 8620
17 22160 10590 10020 9820 9640 9640 9640 8770 13500 9820 13060 10940
23 26850 12840 12140 11920 11670 11670 11670 10620 16340 11920 15810 13250
29 30400 14540 13740 13480 13220 13220 13220 12030 18500 13480 17910 15000
35 32930 15750 14890 14600 14320 14320 14320 13220 20040 14600 19410 16260
VF650/65R38 DW23B DW21B, NRO: DW20B 26.0 71.3 31.7 209.5 172D | 169E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 19010 9100 8590 8440 8260 8260 8260 7510 11560 8440 11190 9370
17 24070 11520 10880 10680 10460 10460 10460 9520 14650 10680 14170 11870
23 29380 14050 13280 13040 12780 12780 12780 11630 17890 13040 17310 14500
29 31920 15260 14430 14160 13880 13880 13880 12780 19430 14160 18800 15750
VF710/60R38 DW25B DW23B 28.0 71.7 31.8 211.5 174D | 171E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 19630 9380 8880 8700 8540 8540 8540 7780 11960 8700 - -
17 25330 12110 11450 11230 11010 11010 11010 10020 15420 11230 - -
23 31170 14910 14100 13810 13550 13550 13550 12330 18960 13810 - -
29 33940 16230 15350 15040 14760 14760 14760 13550 20660 15040 - -
VF710/70R38 DW25B DW23B 28.7 77.1 33.9 225.4 181D | 178E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 24070 11520 10880 10680 10460 10460 10460 9520 14650 10680 14170 11870
17 31170 14910 14100 13810 13550 13550 13550 12330 18960 13810 18360 15370
23 38000 18170 17180 16850 16520 16520 16520 15040 23130 16850 22390 18760
29 41810 20000 18900 18550 18170 18170 18170 16520 25440 18550 24630 20630
VF620/70R42 DW23B DW20B, DW21B 25.0 76.2 34.1 223.5 172D | 169E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 20260 9690 9160 8990 8810 8810 8810 8020 12330 8990 11940 10000
15 23440 11210 10590 10400 10190 10190 10190 9270 14270 10400 13800 11560
17 26100 12490 11810 11560 11340 11340 11340 10330 15880 11560 15370 12870
20 29380 14050 13280 13040 12780 12780 12780 11630 17890 13040 17310 14500
23 31920 15260 14430 14160 13880 13880 13880 12780 19430 14160 18800 15750
VF650/65R42 DW23B DW21B, NRO: DW20B 25.7 75.5 33.9 222.2 174D | 171E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 20260 9690 9160 8990 8810 8810 8810 8020 12330 8990 - -
17 24690 11810 11170 10950 10740 10740 10740 9780 15040 10950 - -
23 30400 14540 13740 13480 13220 13220 13220 12030 18500 13480 - -
29 33940 16230 15350 15040 14760 14760 14760 13550 20660 15040 - -
VF710/60R42 DW25B DW24B, NRO: DW23B 28.0 75.6 33.7 222.4 176D | 173E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 20900 10000 9450 9270 9090 9090 9090 8260 12730 9270 - -
17 26850 12840 12140 11920 11670 11670 11670 10620 16340 11920 - -
23 32930 15750 14890 14600 14320 14320 14320 13040 20040 14600 - -
29 35970 17200 16260 15950 15640 15640 15640 14320 21890 15950 - -
VF710/70R42 DW25B DW23B 28.7 81.1 36.1 240.7 185D | 182E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 25330 12110 11450 11230 11010 11010 11010 10020 15420 11230 14920 12500
17 31920 15260 14430 14160 13880 13880 13880 12620 19430 14160 18800 15750
23 39270 18790 17750 17420 17070 17070 17070 15530 23900 17420 23130 19370
29 43060 20590 19470 19100 18720 18720 18720 17050 26210 19100 25370 21260
35 46870 22420 21190 20790 20370 20370 20370 18720 28520 20790 27610 23130
VF710/70R42 DW25B DW23B 28.7 81.1 36.1 240.6 188A8+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 25330 12110 11450 11230 11010 10020 15420 11230 14920 12500 - -
17 31920 15260 14430 14160 13880 12620 19430 14160 18800 15750 - -
23 39270 18790 17750 17420 17070 15530 23900 17420 23130 19370 - -
29 43060 20590 19470 19100 18720 17050 26210 19100 25370 21260 - -
35 45590 21810 20620 20220 19820 18040 27750 20220 26860 22500 - -
41 50660 24230 22910 22470 22030 20040 30840 22470 29850 25000 - -
VF710/75R42 DW25B DW24B, DW23B 29.0 84.8 37.1 248.7 184D | 181E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 26850 12840 12140 11920 11670 11670 11670 10620 16340 11920 15810 13250
17 33940 16230 15350 15040 14760 14760 14760 13440 20660 15040 20000 16750
23 41810 20000 18900 18550 18170 18170 18170 16540 25440 18550 24630 20630
29 45590 21810 20620 20220 19820 19820 19820 18170 27750 20220 26860 22500
VF800/70R42 DW28B DW27B, DW30B 31.5 86.1 37.5 252.6 189D | 185E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 30400 14540 13740 13480 13220 13220 13220 12030 18500 13480 17910 15000
17 39270 18790 17750 17420 17070 17070 17070 15530 23900 17420 23130 19370
23 46870 22420 21190 20790 20370 20370 20370 18550 28520 20790 27610 23130
29 52180 24960 23590 23150 22690 22690 22690 20370 31760 23150 30740 25750
VF900/60R42 DW30B NRO: DW27B 34.7 84.6 37.2 250.0 189D | 185E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 29380 14050 13280 13040 12780 12780 12780 11630 17890 13040 17310 14500
17 38000 18170 17180 16850 16520 16520 16520 15040 23130 16850 22390 18760
23 46870 22420 21190 20790 20370 20370 20370 18550 28520 20790 27610 23130
29 52180 24960 23590 23150 22690 22690 22690 20370 31760 23150 30740 25750
VF900/60R42 DW30B - 34.7 84.6 37.2 251.6 195A8+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 29380 14050 13280 13040 12780 11630 17890 13040 17310 14500 - -
17 38000 18170 17180 16850 16520 15040 23130 16850 22390 18760 - -
23 46870 22420 21190 20790 20370 18550 28520 20790 27610 23130 - -
29 52180 24960 23590 23150 22690 20640 31760 23150 30740 25750 - -
35 56740 27140 25660 25150 24670 22440 34540 25150 33430 28000 - -
41 61560 29450 27840 27290 26760 24360 37470 27290 36270 30370 - -
VF750/70R44 DW25B - 30.0 85.8 37.7 253.0 186D | 183E+
INFL.
PRESS 		Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
PSI Static 6 12 19 25 30 40 44 6 6 9 19
12 27620 13220 12490 12250 12000 12000 12000 10930 16810 12250 16270 13620
17 35970 17200 16260 15950 15640 15640 15640 14230 21890 15950 21190 17750
23 44340 21210 20040 19670 19270 19270 19270 17530 26980 19670 26110 21870
29 48130 23020 21760 21340 20930 20930 20930 19270 29300 21340 28360 23760
Tyre Size REC. RIM ALT. RIM Unloaded dimension Loaded Static
Radius (mm)		 Rolling Circ.
(mm)		 LI & SS
SW (mm) OD (mm)
VF480/60R28 DW16L W16L, W18L, DW18L, NRO: W15L 470 1287 570 3807 149D | 146E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 4260 2040 1920 1890 1850 1850 1850 1680 2590 1890 - -
1.0 4880 2330 2200 2160 2120 2120 2120 1930 2970 2160 - -
1.2 5430 2600 2450 2410 2360 2360 2360 2150 3300 2410 - -
1.6 6670 3190 3020 2960 2900 2900 2900 2640 4060 2960 - -
2.0 7480 3580 3380 3320 3250 3250 3250 3000 4550 3320 - -
VF520/60R28 DW18L W18L, NRO: DW16L 520 1338 600 3938 149D | 146E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 4880 2330 2200 2160 2120 2120 2120 1930 2970 2160 - -
1.0 5430 2600 2450 2410 2360 2360 2360 2150 3300 2410 - -
1.2 6270 3000 2830 2780 2725 2725 2725 2480 3820 2780 - -
1.4 6900 3300 3120 3060 3000 3000 3000 2730 4200 3060 - -
1.6 7480 3580 3380 3320 3250 3250 3250 3000 4550 3320 - -
VF540/65R28 DW20B W18L, DW18L, NRO: DW16L 549 1413 625 4138 154D | 151E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 5590 2670 2530 2480 2430 2430 2430 2210 3400 2480 - -
1.0 6440 3080 2910 2860 2800 2800 2800 2550 3920 2860 - -
1.2 7070 3380 3200 3140 3075 3075 3075 2800 4310 3140 - -
1.4 7940 3800 3590 3520 3450 3450 3450 3140 4830 3520 - -
1.6 8630 4130 3900 3830 3750 3750 3750 3450 5250 3830 - -
VF600/60R28 DW20B DW21B 587 1431 628 4182 157D | 154E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 6100 2920 2760 2700 2650 2650 2650 2410 3710 2700 3590 3010
1.0 6900 3300 3120 3060 3000 3000 3000 2730 4200 3060 4065 3405
1.2 7710 3690 3480 3420 3350 3350 3350 3050 4690 3420 4540 3800
1.4 8630 4130 3900 3830 3750 3750 3750 3410 5250 3830 5080 4255
1.6 9490 4540 4290 4210 4125 4125 4125 3750 5780 4210 5590 4680
VF600/60R28 DW20B DW21B 587 1431 628 4182 160D | 157E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 6100 2920 2760 2700 2650 2650 2650 2410 3710 2700 3590 3010
1.0 6900 3300 3120 3060 3000 3000 3000 2730 4200 3060 4065 3405
1.2 7710 3690 3480 3420 3350 3350 3350 3050 4690 3420 4540 3800
1.6 9490 4540 4290 4210 4125 4125 4125 3750 5780 4210 5590 4680
2.0 10350 4950 4680 4590 4500 4500 4500 4125 6300 4590 6100 5110
VF600/65R28 DW21B DW20B, NRO: DW18L 600 1491 660 4381 163D | 159E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 6670 3190 3020 2960 2900 2900 2900 2640 4060 2960 3930 3290
1.2 8400 4020 3800 3720 3650 3650 3650 3320 5110 3720 4945 4145
1.6 10060 4810 4550 4460 4375 4375 4375 3980 6130 4460 5930 4965
2.0 11210 5360 5070 4970 4875 4875 4875 4375 6830 4970 6605 5535
VF600/70R28 DW21B DW20B 620 1551 685 4567 173D | 170E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 7250 3470 3280 3210 3150 3150 3150 2870 4410 3210 4270 3575
1.2 9490 4540 4290 4210 4125 4125 4125 3750 5780 4210 5590 4680
1.6 11500 5500 5200 5100 5000 5000 5000 4550 7000 5100 6775 5675
2.0 12540 6000 5670 5560 5450 5450 5450 4960 7630 5560 7385 6185
2.4 13340 6380 6030 5920 5800 5800 5800 5280 8120 5920 7860 6585
2.8 14950 7150 6760 6630 6500 6500 6500 6000 9100 6630 8810 7380
VF540/65R30 DW20B W18L, DW18L 549 1464 663 4331 161D | 158E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 5750 2750 2600 2550 2500 2500 2500 2280 3500 2550 3390 2840
1.0 6670 3190 3020 2960 2900 2900 2900 2640 4060 2960 3930 3290
1.2 7250 3470 3280 3210 3150 3150 3150 2870 4410 3210 4270 3575
1.6 8910 4260 4030 3950 3875 3875 3875 3530 5430 3950 5250 4400
2.0 9780 4680 4420 4340 4250 4250 4250 3870 5950 4340 5760 4825
2.4 10640 5090 4810 4720 4625 4625 4625 4250 6480 4720 6265 5250
VF600/60R30 DW20B DW21B 587 1482 661 4380 162D | 159E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 6270 3000 2830 2780 2725 2725 2725 2480 3820 2780 - -
1.2 7940 3800 3590 3520 3450 3450 3450 3140 4830 3520 - -
1.6 9780 4680 4420 4340 4250 4250 4250 3870 5950 4340 - -
2.0 10930 5230 4940 4850 4750 4750 4750 4375 6650 4850 - -
VF600/70R30 DW21B DW20B 620 1602 712 4700 170D | 167E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 7480 3580 3380 3320 3250 3250 3250 2960 4550 3320 4405 3690
1.0 8630 4130 3900 3830 3750 3750 3750 3410 5250 3830 5080 4255
1.2 9780 4680 4420 4340 4250 4250 4250 3870 5950 4340 5760 4825
1.6 11850 5670 5360 5250 5150 5150 5150 4690 7210 5250 6980 5845
2.0 12880 6160 5820 5710 5600 5600 5600 5100 7840 5710 7590 6355
2.4 13800 6600 6240 6120 6000 6000 6000 5450 8400 6120 8130 6810
VF620/75R30 DW23B DW20B, DW21B 636 1676 689 4659 172D | 169E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 8400 4020 3800 3720 3650 3650 3650 3320 5110 3720 4945 4145
1.0 9780 4680 4420 4340 4250 4250 4250 3870 5950 4340 5760 4825
1.2 10930 5230 4940 4850 4750 4750 4750 4320 6650 4850 6435 5390
1.4 12190 5830 5510 5410 5300 5300 5300 4820 7420 5410 7180 6015
1.6 13340 6380 6030 5920 5800 5800 5800 5280 8120 5920 7860 6585
2.0 14490 6930 6550 6430 6300 6300 6300 5800 8820 6430 8535 7150
VF710/60R30 DW25B DW24B, DW27B 710 1614 706 4698 171D | 168E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 8170 3910 3690 3620 3550 3550 3550 3230 4970 3620 - -
1.2 10350 4950 4680 4590 4500 4500 4500 4100 6300 4590 - -
1.6 12540 6000 5670 5560 5450 5450 5450 4960 7630 5560 - -
2.0 14150 6770 6400 6270 6150 6150 6150 5600 8610 6270 - -
VF600/65R34 DW21B DW20B, NRO: DW18L 597 1644 742 4834 169D | 166E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 7250 3470 3280 3210 3150 3150 3150 2870 4410 3210 - -
1.2 9200 4400 4160 4080 4000 4000 4000 3640 5600 4080 - -
1.6 11210 5360 5070 4970 4875 4875 4875 4440 6830 4970 - -
2.0 12190 5830 5510 5410 5300 5300 5300 4820 7420 5410 - -
2.4 13340 6380 6030 5920 5800 5800 5800 5300 8120 5920 - -
VF650/60R34 DW23B DW21B 660 1660 739 4872 168D | 165E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 7480 3580 3380 3320 3250 3250 3250 2960 4550 3320 - -
1.2 9490 4540 4290 4210 4125 4125 4125 3750 5780 4210 - -
1.6 11850 5670 5360 5250 5150 5150 5150 4690 7210 5250 - -
2.0 12880 6160 5820 5710 5600 5600 5600 5150 7840 5710 - -
VF650/65R34 DW23B DW21B, NRO: DW20B 653 1718 764 5086 170D | 167E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 8170 3910 3690 3620 3550 3550 3550 3230 4970 3620 4810 4030
1.2 10350 4950 4680 4590 4500 4500 4500 4100 6300 4590 6100 5110
1.6 12540 6000 5670 5560 5450 5450 5450 4960 7630 5560 7385 6185
2.0 13800 6600 6240 6120 6000 6000 6000 5450 8400 6120 8130 6810
VF710/60R34 DW25B DW24B, DW27B, NRO: DW23B, DW24B 710 1716 758 5100 173D | 170E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 8630 4130 3900 3830 3750 3750 3750 3410 5250 3830 - -
1.2 10930 5230 4940 4850 4750 4750 4750 4320 6650 4850 - -
1.6 13340 6380 6030 5920 5800 5800 5800 5280 8120 5920 - -
2.0 14950 7150 6760 6630 6500 6500 6500 6000 9100 6630 - -
VF600/60R38 DW20B DW21B, NRO: DW18L 587 1685 763 5008 168D | 165E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 6900 3300 3120 3060 3000 3000 3000 2730 4200 3060 - -
1.2 8910 4260 4030 3950 3875 3875 3875 3530 5430 3950 - -
1.6 10930 5230 4940 4850 4750 4750 4750 4320 6650 4850 - -
2.0 12190 5830 5510 5410 5300 5300 5300 4820 7420 5410 - -
2.4 12880 6160 5820 5710 5600 5600 5600 5300 7840 5710 - -
VF650/60R38 DW23B DW21B, NRO: DW20B 730 1959 860 5725 173D | 170E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 7940 3800 3590 3520 3450 3450 3450 3140 4830 3520 4675 3915
1.2 10060 4810 4550 4460 4375 4375 4375 3980 6130 4460 5930 4965
1.6 12190 5830 5510 5410 5300 5300 5300 4820 7420 5410 7180 6015
2.0 13800 6600 6240 6120 6000 6000 6000 5460 8400 6120 8130 6810
2.4 14950 7150 6760 6630 6500 6500 6500 6000 9100 6630 8810 7380
VF650/65R38 DW23B DW21B, NRO: DW20B 660 1811 804 5321 172D | 169E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 8630 4130 3900 3830 3750 3750 3750 3410 5250 3830 5080 4255
1.2 10930 5230 4940 4850 4750 4750 4750 4320 6650 4850 6435 5390
1.6 13340 6380 6030 5920 5800 5800 5800 5280 8120 5920 7860 6585
2.0 14490 6930 6550 6430 6300 6300 6300 5800 8820 6430 8535 7150
VF710/60R38 DW25B DW23B 710 1820 807 5371 174D | 171E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 8910 4260 4030 3950 3875 3875 3875 3530 5430 3950 - -
1.2 11500 5500 5200 5100 5000 5000 5000 4550 7000 5100 - -
1.6 14150 6770 6400 6270 6150 6150 6150 5600 8610 6270 - -
2.0 15410 7370 6970 6830 6700 6700 6700 6150 9380 6830 - -
VF710/70R38 DW25B DW23B 730 1959 860 5725 181D | 178E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 10930 5230 4940 4850 4750 4750 4750 4320 6650 4850 6435 5390
1.2 14150 6770 6400 6270 6150 6150 6150 5600 8610 6270 8335 6980
1.6 17250 8250 7800 7650 7500 7500 7500 6830 10500 7650 10165 8515
2.0 18980 9080 8580 8420 8250 8250 8250 7500 11550 8420 11180 9365
VF620/70R42 DW23B DW20B, DW21B 730 1959 860 5725 172D | 169E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 9200 4400 4160 4080 4000 4000 4000 3640 5600 4080 5420 4540
1.0 10640 5090 4810 4720 4625 4625 4625 4210 6480 4720 6265 5250
1.2 11850 5670 5360 5250 5150 5150 5150 4690 7210 5250 6980 5845
1.4 13340 6380 6030 5920 5800 5800 5800 5280 8120 5920 7860 6585
1.6 14490 6930 6550 6430 6300 6300 6300 5800 8820 6430 8535 7150
VF650/65R42 DW23B DW21B, NRO: DW20B 730 2061 916 6115 174D | 171E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 9200 4400 4160 4080 4000 4000 4000 3640 5600 4080 - -
1.2 11210 5360 5070 4970 4875 4875 4875 4440 6830 4970 - -
1.6 13800 6600 6240 6120 6000 6000 6000 5460 8400 6120 - -
2.0 15410 7370 6970 6830 6700 6700 6700 6150 9380 6830 - -
VF710/60R42 DW25B DW24B, NRO: DW23B 710 1919 855 5650 176D | 173E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 9490 4540 4290 4210 4125 4125 4125 3750 5780 4210 - -
1.2 12190 5830 5510 5410 5300 5300 5300 4820 7420 5410 - -
1.6 14950 7150 6760 6630 6500 6500 6500 5920 9100 6630 - -
2.0 16330 7810 7380 7240 7100 7100 7100 6500 9940 7240 - -
VF710/70R42 DW25B DW23B 730 2061 916 6115 185D | 182E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 11500 5500 5200 5100 5000 5000 5000 4550 7000 5100 6775 5675
1.2 14490 6930 6550 6430 6300 6300 6300 5730 8820 6430 8535 7150
1.6 17830 8530 8060 7910 7750 7750 7750 7050 10850 7910 10500 8795
2.0 19550 9350 8840 8670 8500 8500 8500 7740 11900 8670 11520 9650
2.4 21280 10180 9620 9440 9250 9250 9250 8500 12950 9440 12535 10500
VF710/70R42 DW25B DW23B 730 2061 916 6110 188A8+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 11500 5500 5200 5100 5000 4550 7000 5100 6775 5675 - -
1.2 14490 6930 6550 6430 6300 5730 8820 6430 8535 7150 - -
1.6 17830 8530 8060 7910 7750 7050 10850 7910 10500 8795 - -
2.0 19550 9350 8840 8670 8500 7740 11900 8670 11520 9650 - -
2.4 20700 9900 9360 9180 9000 8190 12600 9180 12195 10215 - -
2.8 23000 11000 10400 10200 10000 9100 14000 10200 13550 11350 - -
VF710/75R42 DW25B DW24B, DW23B 737 2153 943 6317 184D | 181E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 12190 5830 5510 5410 5300 5300 5300 4820 7420 5410 7180 6015
1.2 15410 7370 6970 6830 6700 6700 6700 6100 9380 6830 9080 7605
1.6 18980 9080 8580 8420 8250 8250 8250 7510 11550 8420 11180 9365
2.0 20700 9900 9360 9180 9000 9000 9000 8250 12600 9180 12195 10215
VF800/70R42 DW28B DW27B, DW30B 800 2187 953 6417 189D | 185E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 13800 6600 6240 6120 6000 6000 6000 5460 8400 6120 8130 6810
1.2 17830 8530 8060 7910 7750 7750 7750 7050 10850 7910 10500 8795
1.6 21280 10180 9620 9440 9250 9250 9250 8420 12950 9440 12535 10500
2.0 23690 11330 10710 10510 10300 10300 10300 9250 14420 10510 13955 11690
VF900/60R42 DW30B NRO: DW27B 881 2150 944 6350 189D | 185E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 13340 6380 6030 5920 5800 5800 5800 5280 8120 5920 7860 6585
1.2 17250 8250 7800 7650 7500 7500 7500 6830 10500 7650 10165 8515
1.6 21280 10180 9620 9440 9250 9250 9250 8420 12950 9440 12535 10500
2.0 23690 11330 10710 10510 10300 10300 10300 9250 14420 10510 13955 11690
VF900/60R42 DW30B - 881 2150 945 6390 195A8+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 13340 6380 6030 5920 5800 5280 8120 5920 7860 6585 - -
1.2 17250 8250 7800 7650 7500 6830 10500 7650 10165 8515 - -
1.6 21280 10180 9620 9440 9250 8420 12950 9440 12535 10500 - -
2.0 23690 11330 10710 10510 10300 9370 14420 10510 13955 11690 - -
2.4 25760 12320 11650 11420 11200 10190 15680 11420 15175 12710 - -
2.8 27950 13370 12640 12390 12150 11060 17010 12390 16465 13790 - -
VF750/70R44 DW25B - 763 2179 958 6425 186D | 183E+
INFL.
PRESS 		SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT		 Cyclic
with
front
loader		 10 HT CFO
Bar Static 10 20 30 40 50 65 70 10 10 15 30
0.8 12540 6000 5670 5560 5450 5450 5450 4960 7630 5560 7385 6185
1.2 16330 7810 7380 7240 7100 7100 7100 6460 9940 7240 9620 8060
1.6 20130 9630 9100 8930 8750 8750 8750 7960 12250 8930 11855 9930
2.0 21850 10450 9880 9690 9500 9500 9500 8750 13300 9690 12875 10785
Technical Data
Intl.
US
Tyre Size Rec. RIM
(inch)		 Alt. RIM
(inch)		 Unloaded dimensions (mm) Type Ply Rating Load Index & Speed Symbol Fabric Load table
Section Width Overall Diameter Static Load Radius Rolling Circumference

AR 4005

not found
not found
