Tractor Drive Tyres

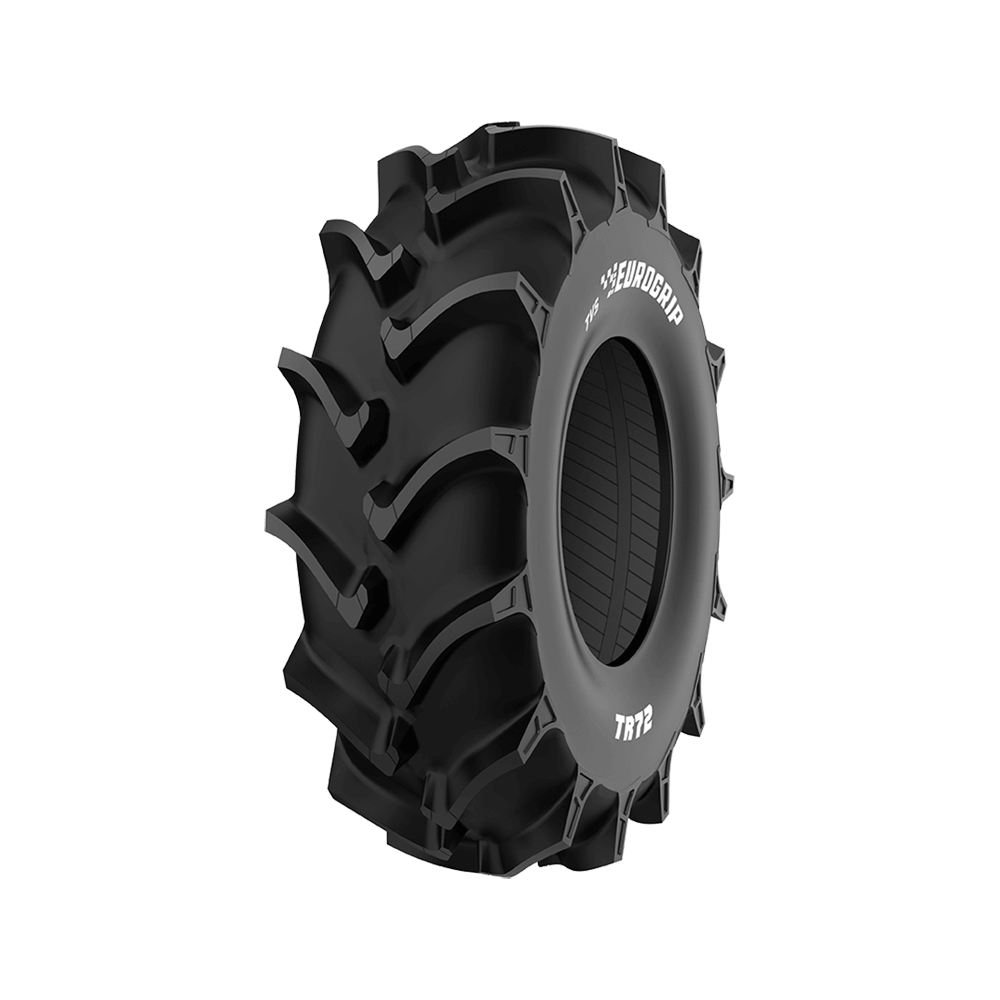

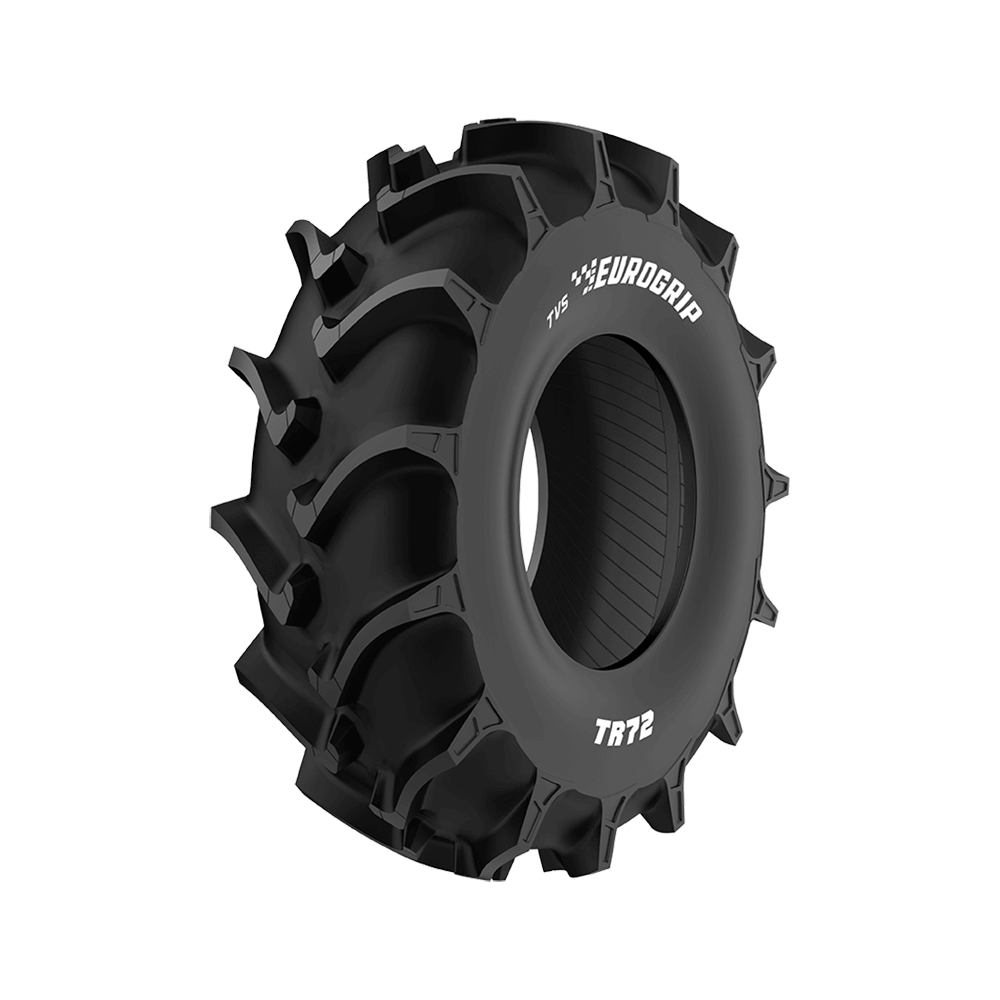

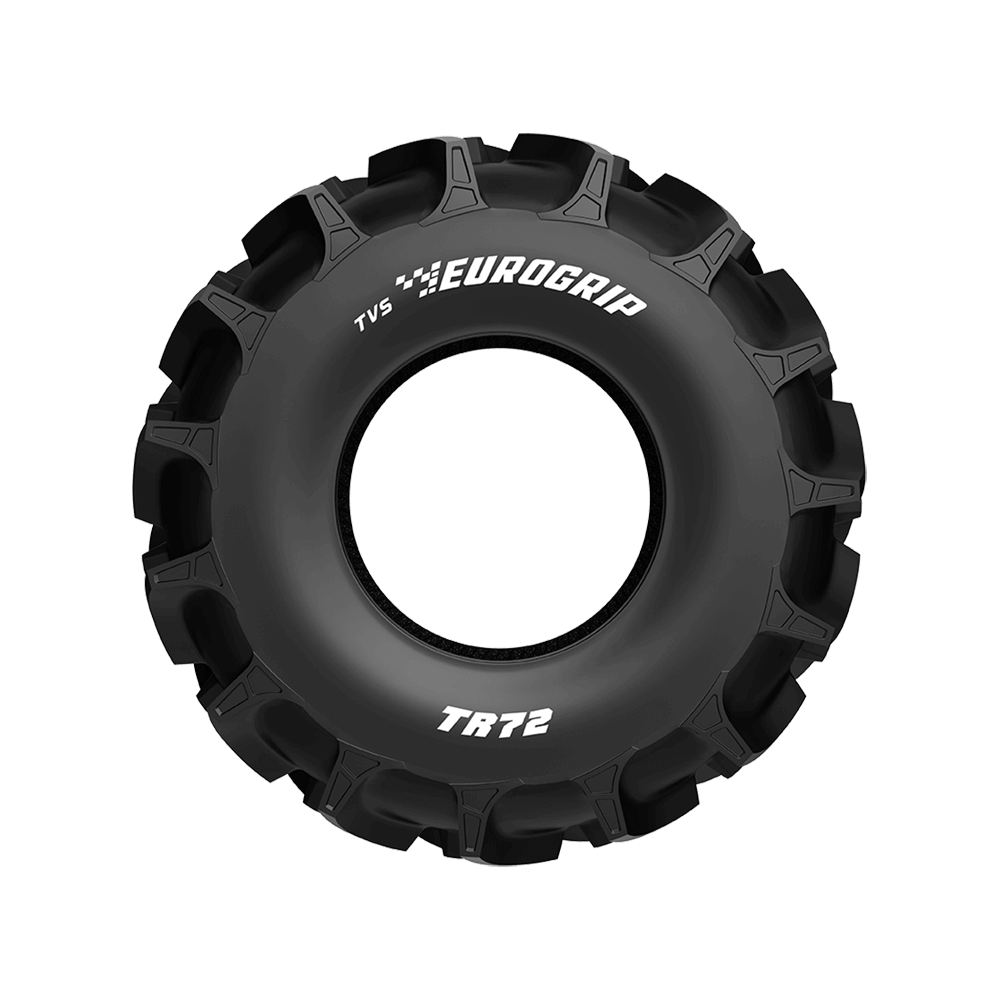

TR 72

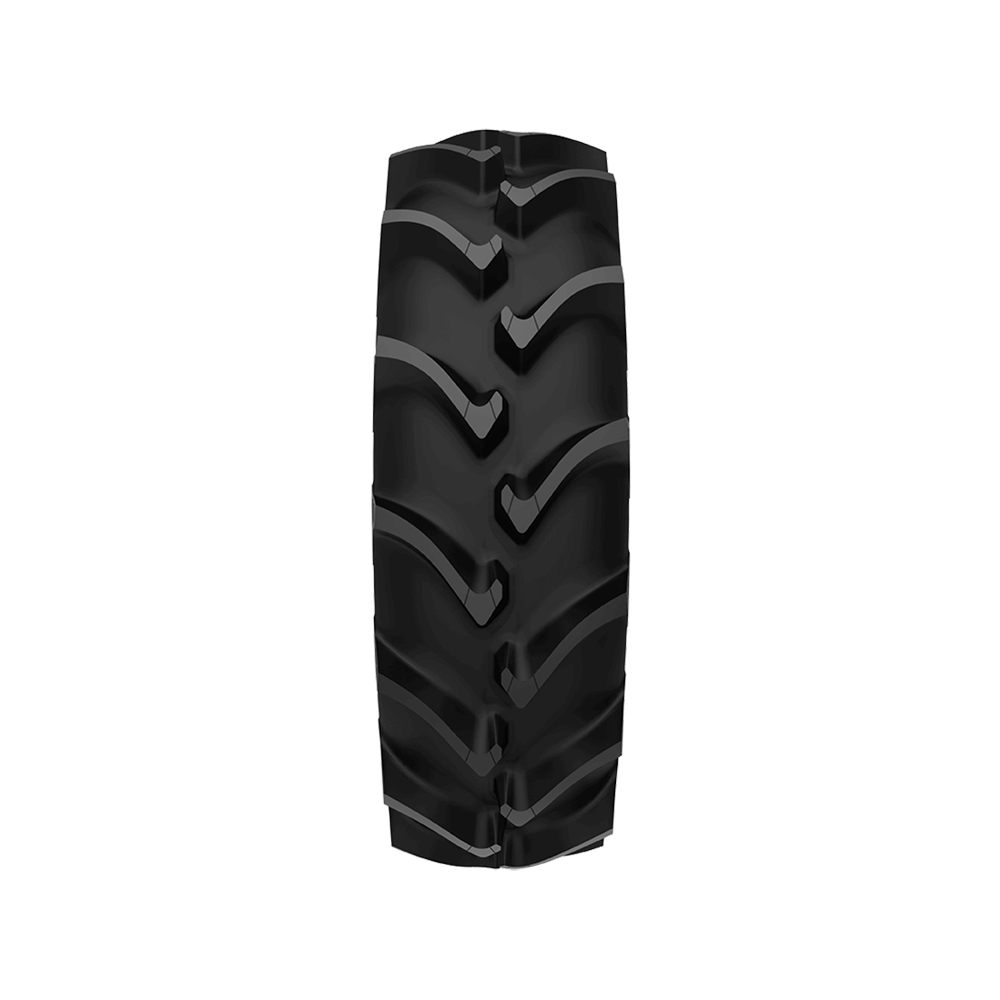

TR72 Deep Lug (R-2) tyres are designed to offer high traction performance in moist to flooded fields. Optimized Lug angles to deliver better Tractive performance in field and durability plus drive comfort on Road. Lugs are re-enforced with Tie-Bars in center to improve durability & product life in severe conditions.
R-2
A8
Bias
Suitable for
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 12.4-24 | W11 | - | 315 | 1197 | 543 | 3680 | TT/TL | 8 | 117A8 | |
| 13.6-24 | W12 | - | 345 | 1242 | 563 | 3770 | TT/TL | 8 | 120A8 | |
| 14.9-24 | W13 | - | 378 | 1305 | 596 | 3951 | TT/TL | 6 | 119A8 | |
| 14.9-24 | W13 | - | 378 | 1305 | 596 | 3951 | TT/TL | 8 | 124A8 | |
| 18.4-26 | W16L | - | 475 | 1505 | 679 | 4529 | TT/TL | 10 | 138A8 | |
| 23.1-26 | DW20B | - | 585 | 1656 | 738 | 4969 | TT/TL | 10 | 145A8 | |
| 23.1-26 | DW20B | - | 585 | 1656 | 738 | 4969 | TT/TL | 12 | 149A8 | |
| 14.9-28 | W13 | - | 378 | 1404 | 642 | 4046 | TT/TL | 6 | 121A8 | |
| 14.9-28 | W13 | - | 378 | 1404 | 642 | 4046 | TT/TL | 8 | 124A8 | |
| 18.4-30 | W16L | - | 468 | 1620 | 741 | 4705 | TT/TL | 6 | 130A8 | |
| 18.4-30 | W16L | - | 468 | 1620 | 741 | 4705 | TT/TL | 8 | 135A8 | |
| 23.1-30 | DW20B | - | 580 | 1050 | 776 | 5117 | TT/TL | 10 | 147A8 | |
| 18.4-34 | W16L | - | 468 | 1700 | 780 | 5133 | TT/TL | 8 | 137A8 | |
| 18.4-38 | W16L | - | 475 | 1835 | 844 | 5586 | TT/TL | 14 | 155A8 | |
| 20.8-38 | W18L | - | 528 | 1899 | 851 | 5698 | TT/TL | 10 | 148A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | |||||||||||||||||
| 12.4-24 | W11 | - | 315 | 1197 | 543 | 3680 | TT/TL | 8 | 117A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
| 13.6-24 | W12 | - | 345 | 1242 | 563 | 3770 | TT/TL | 8 | 120A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
| 14.9-24 | W13 | - | 378 | 1305 | 596 | 3951 | TT/TL | 6 | 119A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
| 14.9-24 | W13 | - | 378 | 1305 | 596 | 3951 | TT/TL | 8 | 124A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
| 14.9-28 | W13 | - | 378 | 1404 | 642 | 4046 | TT/TL | 6 | 121A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
| 14.9-28 | W13 | - | 378 | 1404 | 642 | 4046 | TT/TL | 8 | 124A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
| 18.4-26 | W16L | - | 475 | 1505 | 679 | 4529 | TT/TL | 10 | 138A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
| 18.4-30 | W16L | - | 468 | 1620 | 741 | 4705 | TT/TL | 6 | 130A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
| 18.4-30 | W16L | - | 468 | 1620 | 741 | 4705 | TT/TL | 8 | 135A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
| 18.4-34 | W16L | - | 468 | 1700 | 780 | 5133 | TT/TL | 8 | 137A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
| 18.4-38 | W16L | - | 475 | 1835 | 844 | 5586 | TT/TL | 14 | 155A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
| 20.8-38 | W18L | - | 528 | 1899 | 851 | 5698 | TT/TL | 10 | 148A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
| 23.1-26 | DW20B | - | 585 | 1656 | 738 | 4969 | TT/TL | 10 | 145A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
| 23.1-26 | DW20B | - | 585 | 1656 | 738 | 4969 | TT/TL | 12 | 149A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
| 23.1-30 | DW20B | - | 580 | 1050 | 776 | 5117 | TT/TL | 10 | 147A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
