Backhoe Loader Tyres
BL 09

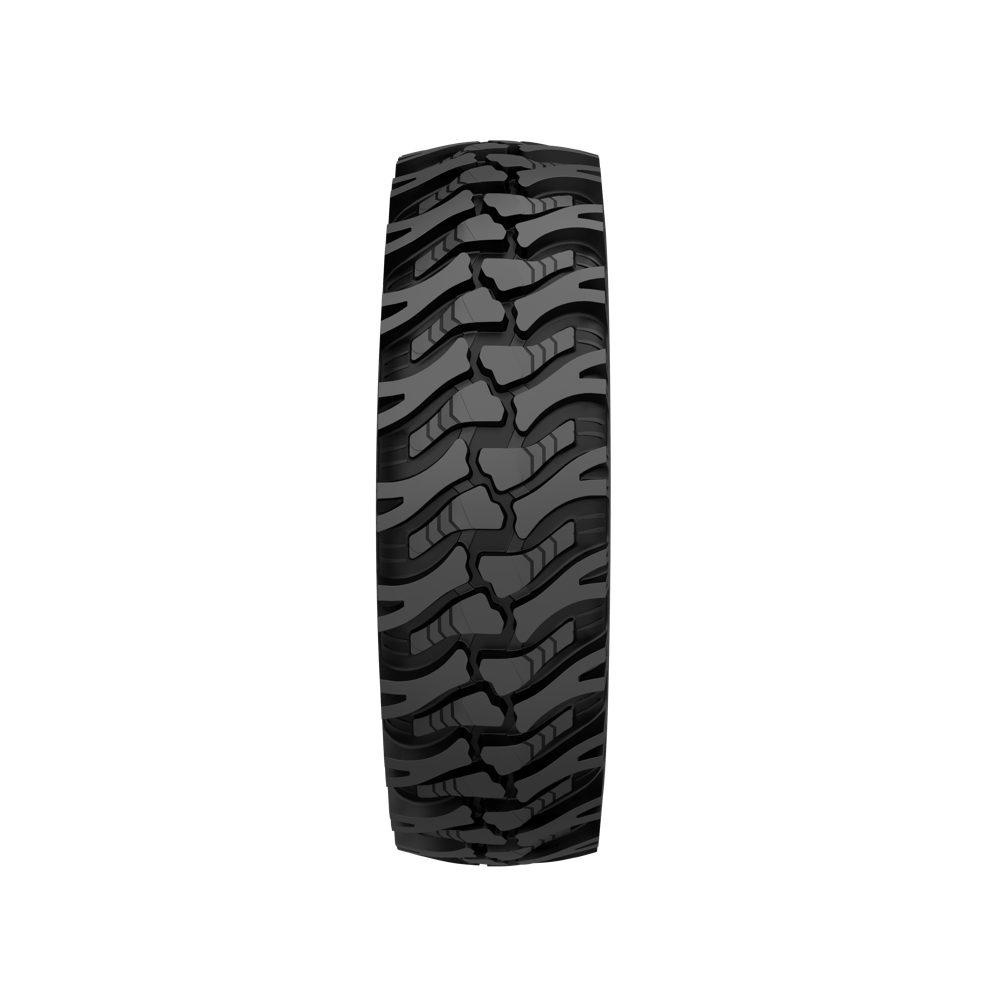

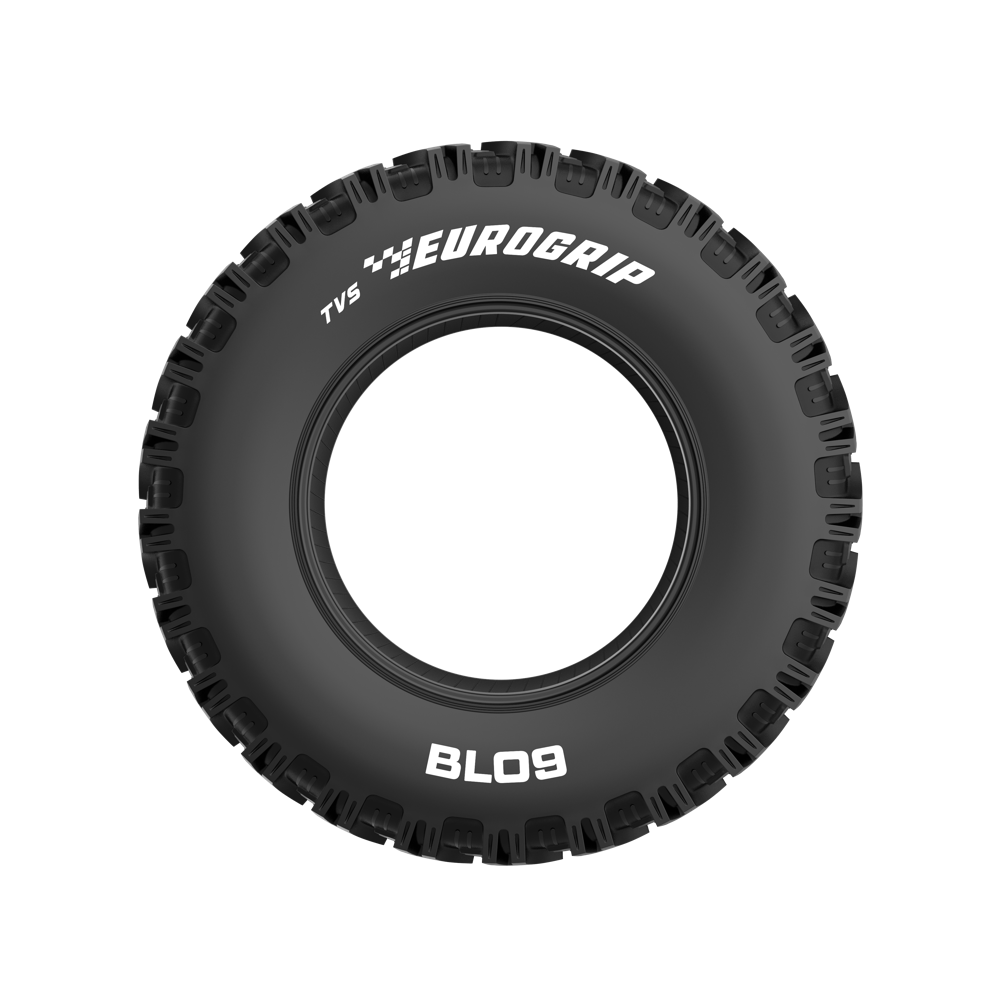

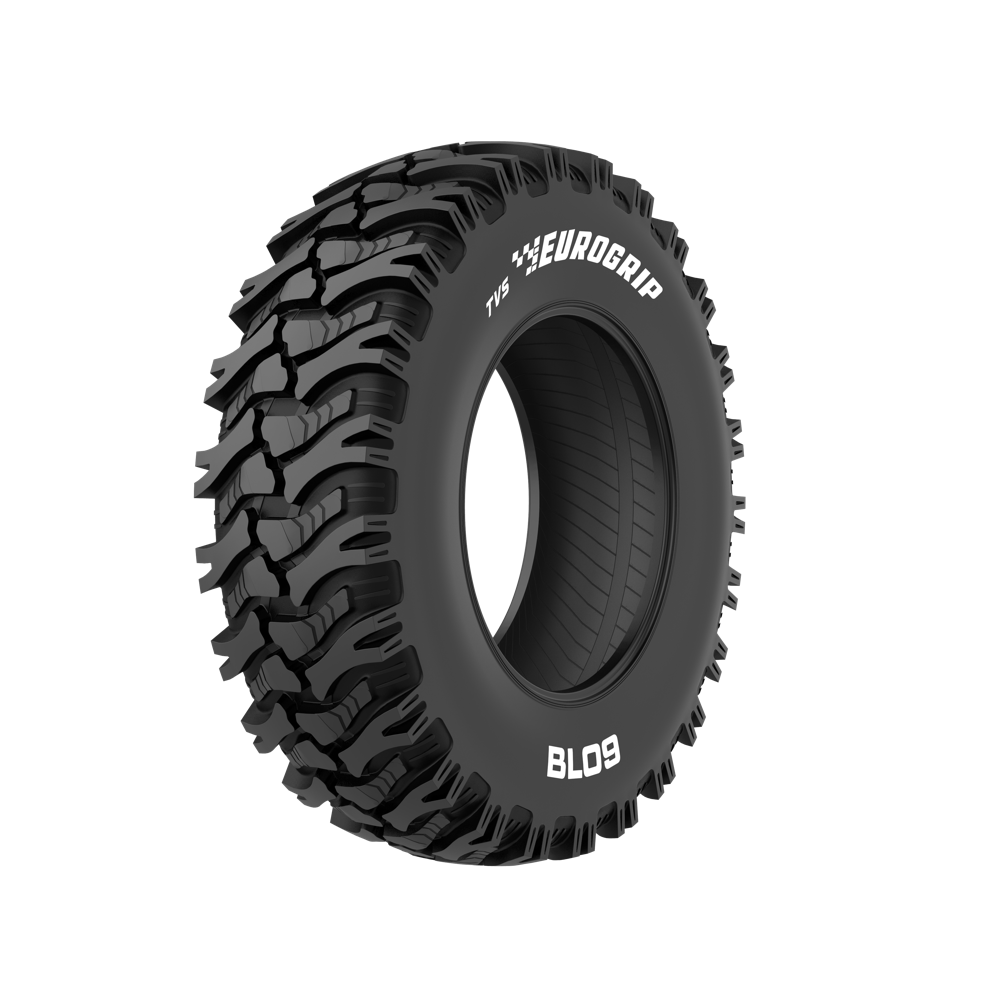

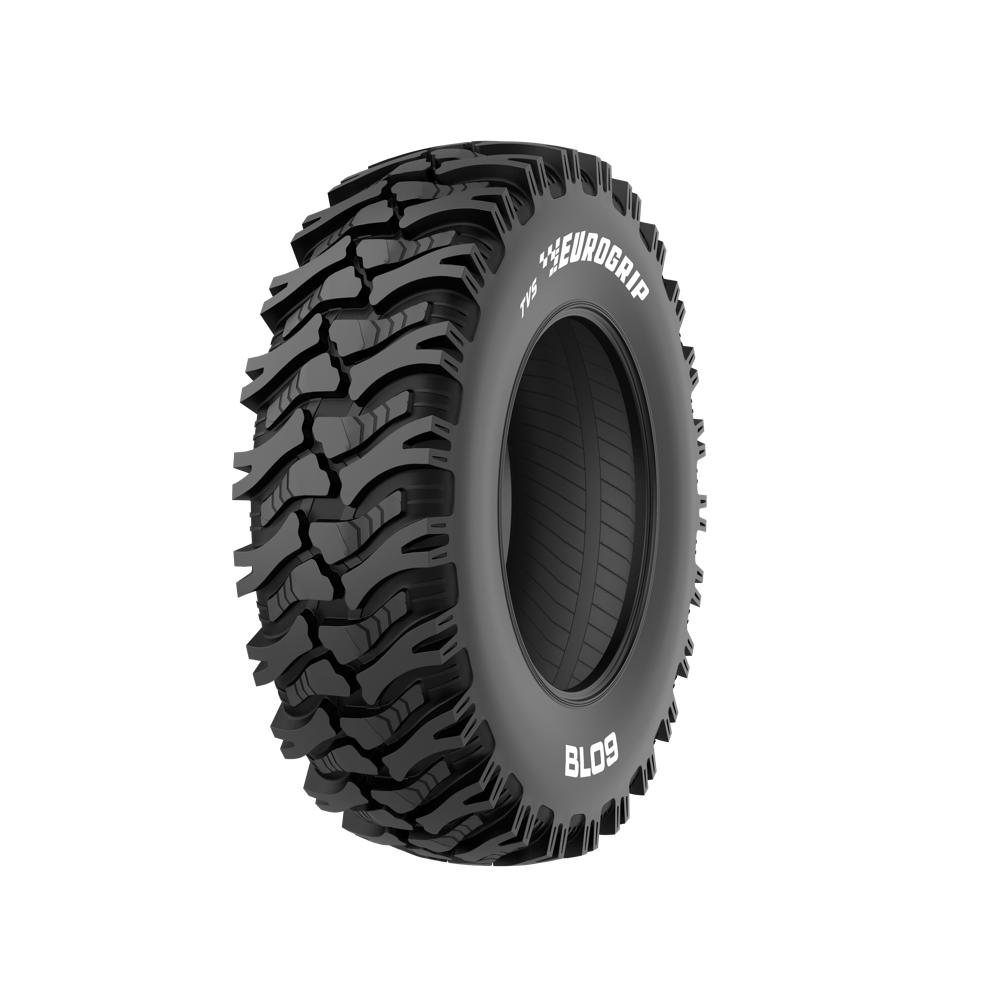

The R-4 BL 09 tyre is designed for use in backhoe loaders and industrial tractors. Its unique tread design is designed to perform across various surface conditions making it a truly multi-terrain tyre. The unique tread designs with primary and secondary lugs provide traction and excellent protection to the carcass. This helps the tyre last longer in demanding applications.
R-4
A8
Bias
Suitable for
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 12.5/80-18 | W9 | - | 315 | 985 | 440 | 2900 | TL | 12 | 142A8 | 129A8 | |
| 12.5/80-18 | W9 | - | 315 | 985 | 440 | 2900 | TT/TL | 16 | 148A8 | 135A8 | |
| 16.9-28 | W15 | - | 450 | 1420 | 646 | 4193 | TT/TL | 12 | 152A8 | |
| 16.9-28 | W15 | - | 450 | 1420 | 646 | 4193 | TL | 14 | 156A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||||||||||||||||||||
| 12.5/80-18 | W9 | - | 315 | 985 | 440 | 2900 | TL | 12 | 142A8 | 129A8 | Textile | + | ||||||||||||||||||
|
Load Capacity Per Tyre (Free Wheel)
Load Capacity Per Tyre (Drive Wheel)
|
|||||||||||||||||||||||||||||
| 12.5/80-18 | W9 | - | 315 | 985 | 440 | 2900 | TT/TL | 16 | 148A8 | 135A8 | Textile | + | ||||||||||||||||||
|
Load Capacity Per Tyre (Free Wheel)
Load Capacity Per Tyre (Drive Wheel)
|
|||||||||||||||||||||||||||||
| 16.9-28 | W15 | - | 450 | 1420 | 646 | 4193 | TT/TL | 12 | 152A8 | Textile | + | ||||||||||||||||||
|
ECE: E4-106R-003074 Load Capacity Per Tyre (Drive Wheel)
|
|||||||||||||||||||||||||||||
| 16.9-28 | W15 | - | 450 | 1420 | 646 | 4193 | TL | 14 | 156A8 | Textile | + | ||||||||||||||||||
|
ECE: E4*106R00/20*5769*00 Load Capacity Per Tyre (Drive Wheel)
|
|||||||||||||||||||||||||||||
