Backhoe Loader Tyres
BL 117

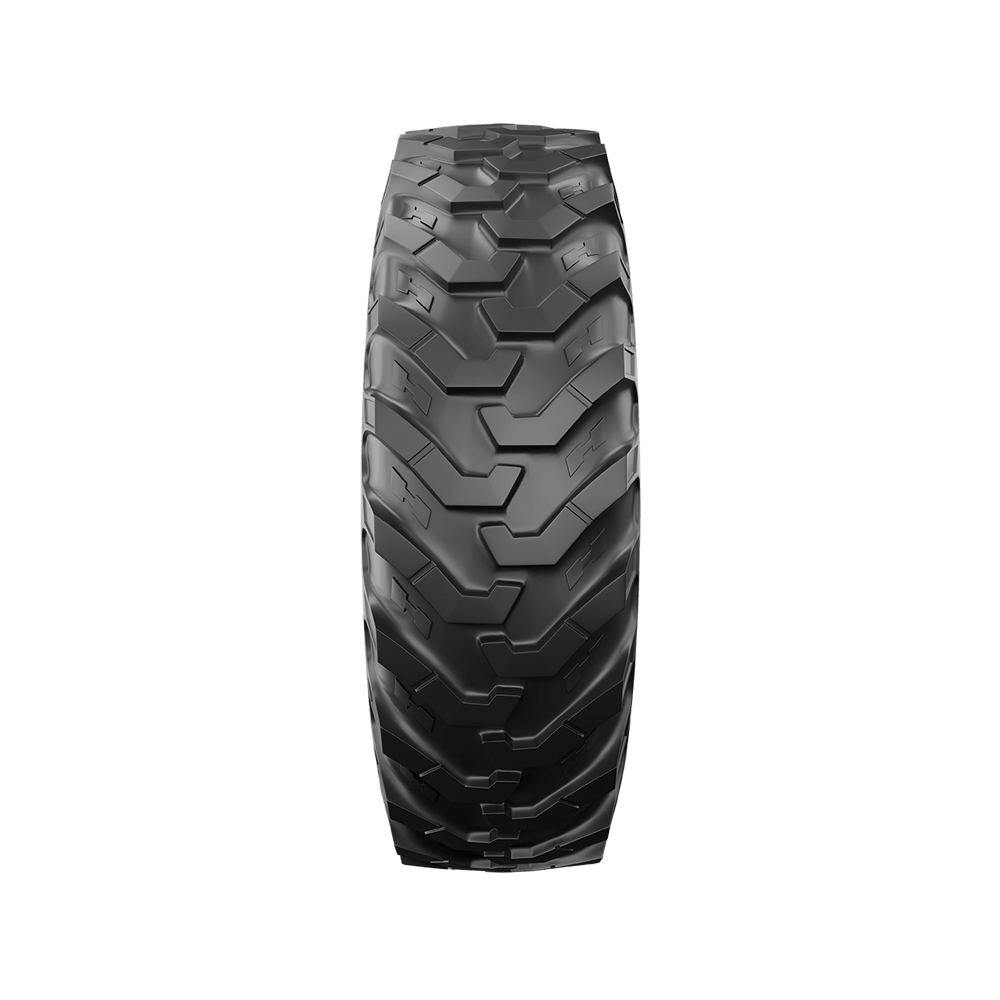

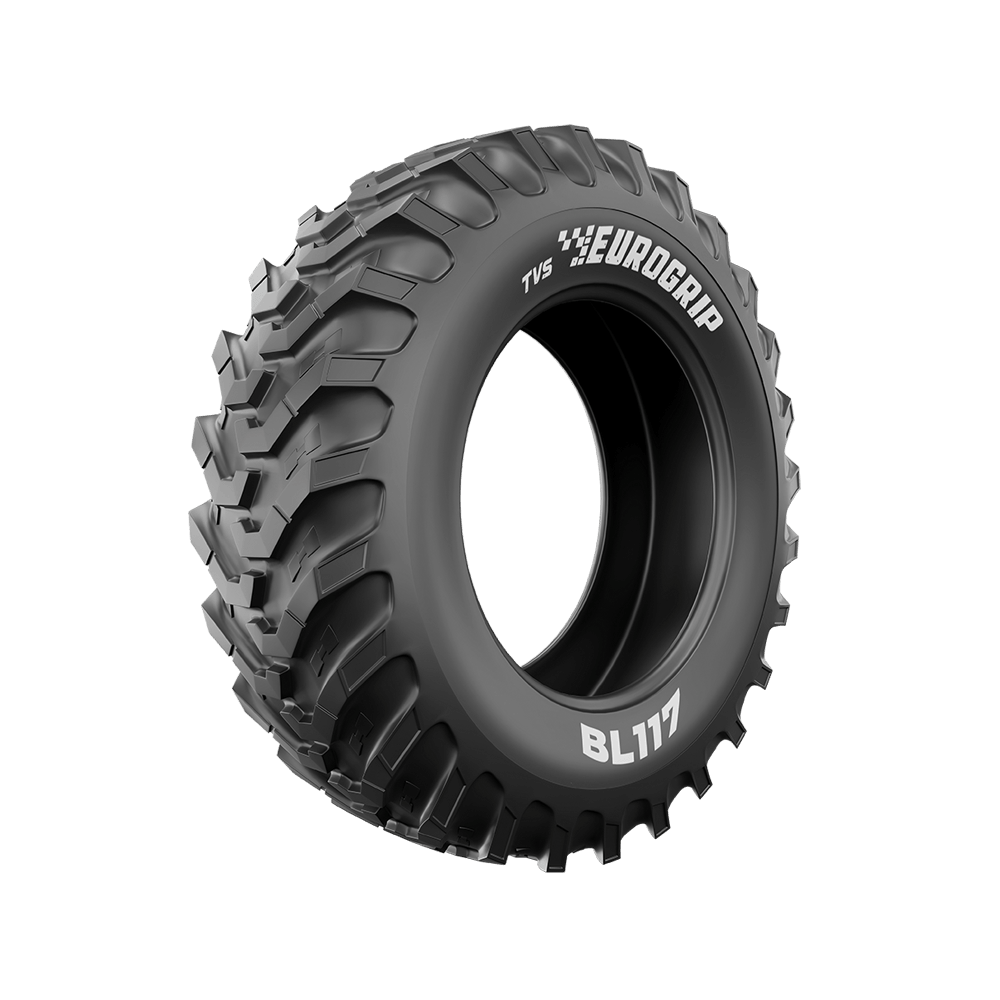

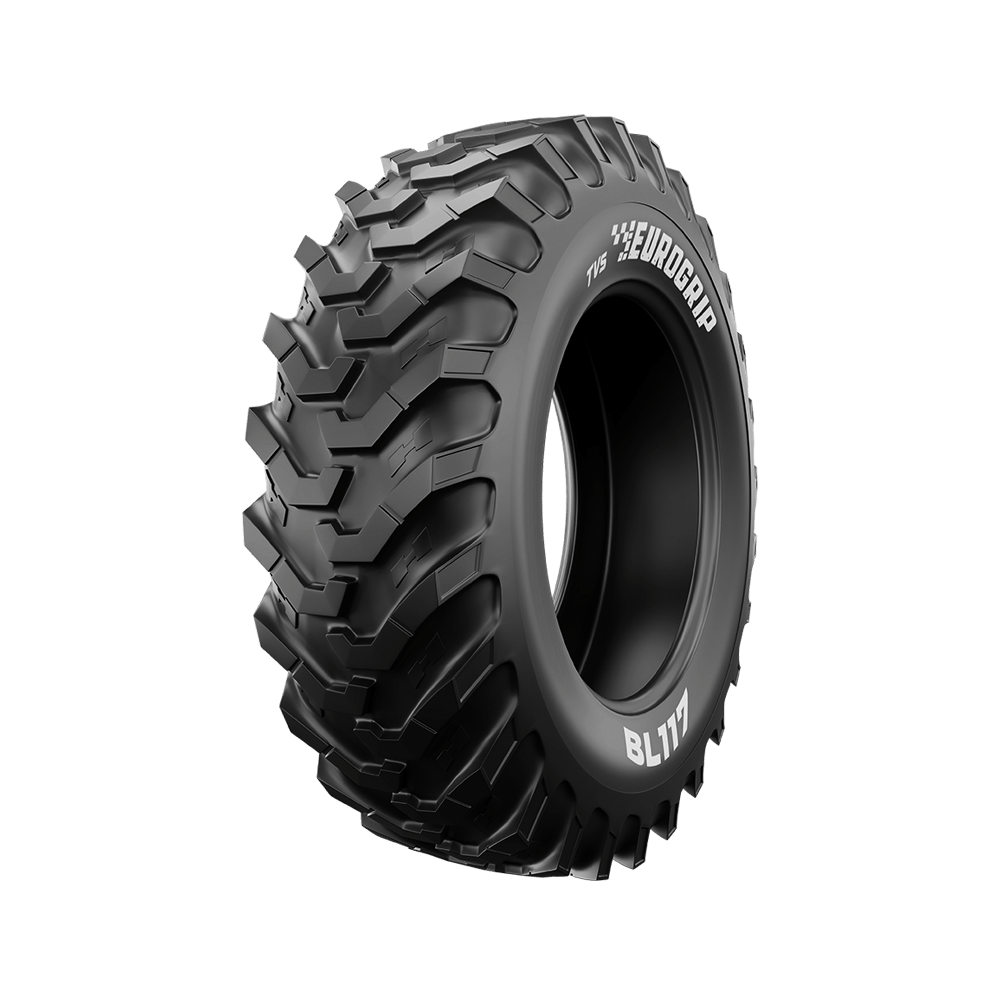

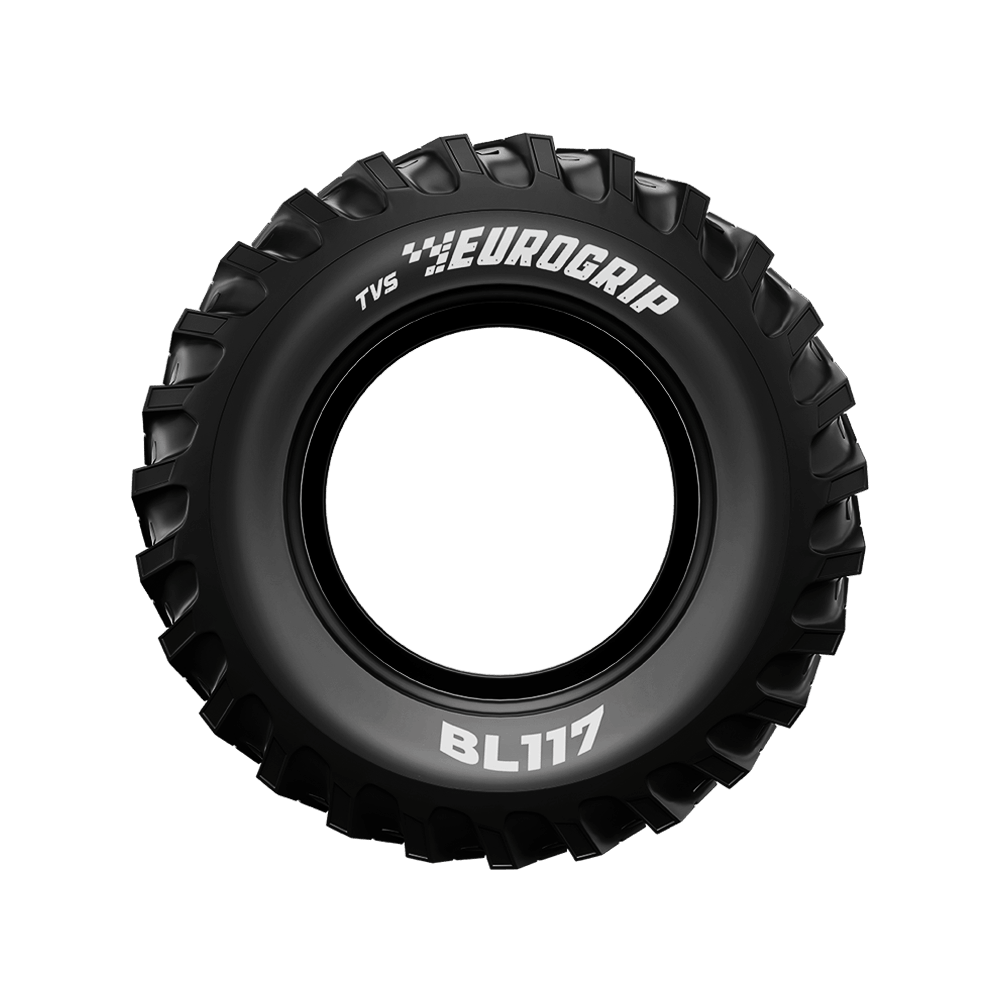

The TVS Eurogrip BL 117 R-4 tyre is engineered for demanding construction and industrial applications. The tyre can be also used in machines engaged in tough agricultural works. Featuring a strong, well-spaced, directional tread pattern that delivers excellent traction, the BL 117 is designed to work on multiple terrain.
Its wide, flat tread design enhances stability and supports heavy loads even at higher speeds, while the distinctive lug-overlap in the centre reduces vibration for smoother ride and control.
Built with a rugged nylon casing and a specially formulated compound, the BL 117 offers superior resistance to cuts, chips, abrasions, and punctures, ensuring durability across challenging terrains.
R-4
A8
Bias
Suitable for
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 16.9-28 | W15 | - | 458 | 1420 | 647 | 4228 | TT | 12 | 152A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | |||||||||||||||||
| 16.9-28 | W15 | - | 458 | 1420 | 647 | 4228 | TT | 12 | 152A8 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
