Backhoe Loader Tyres
BL 72
Gallery not found.

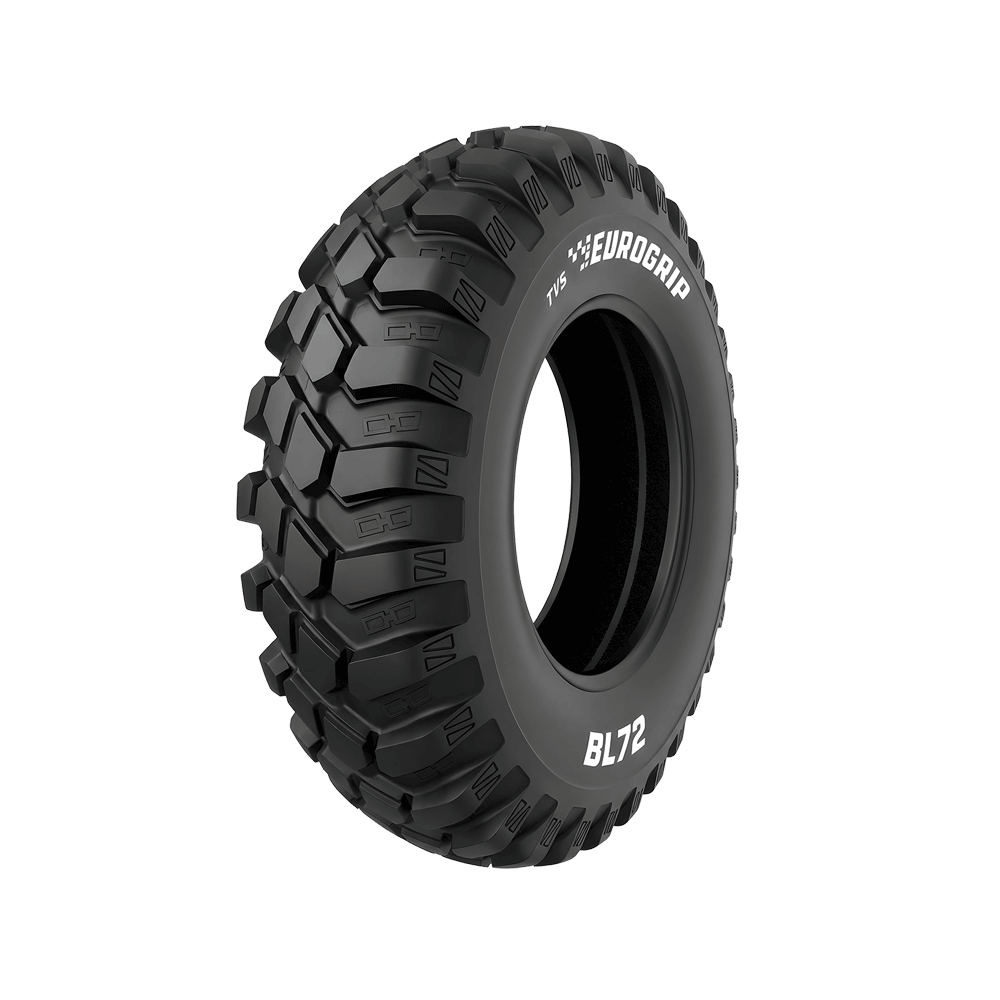

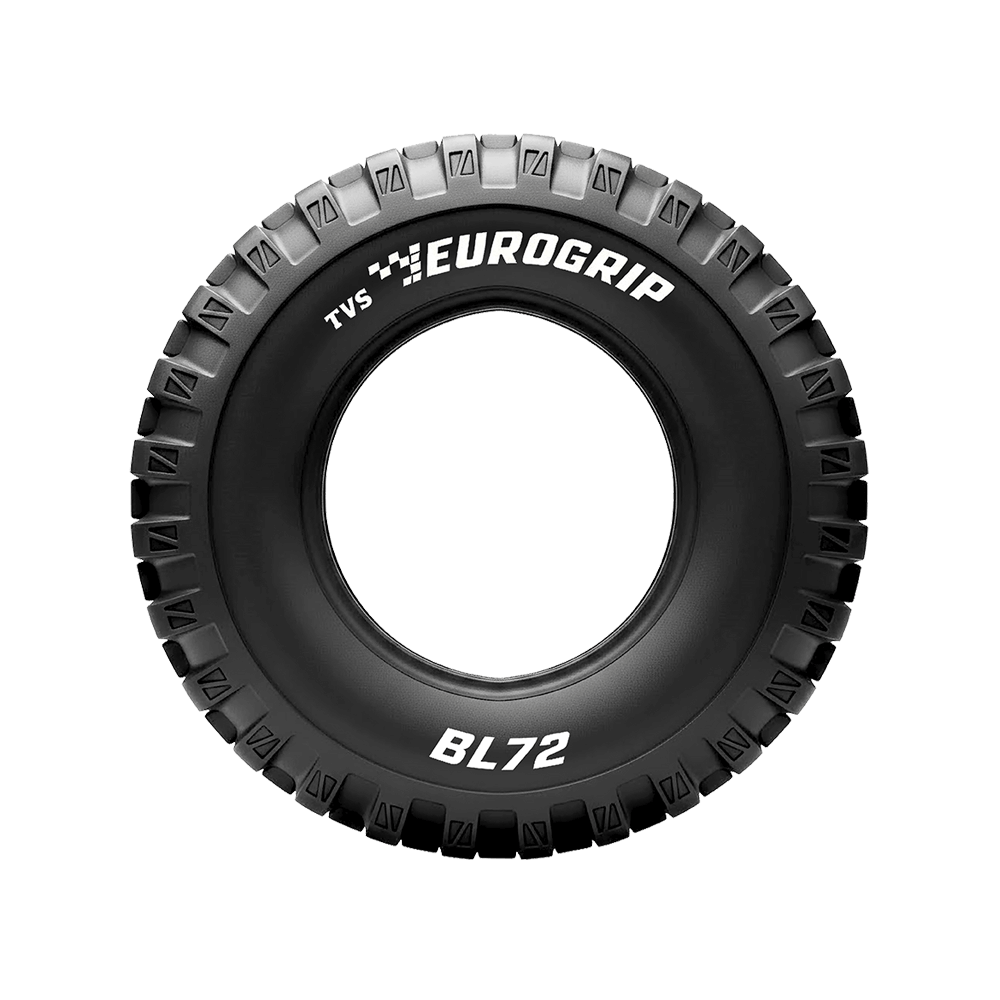

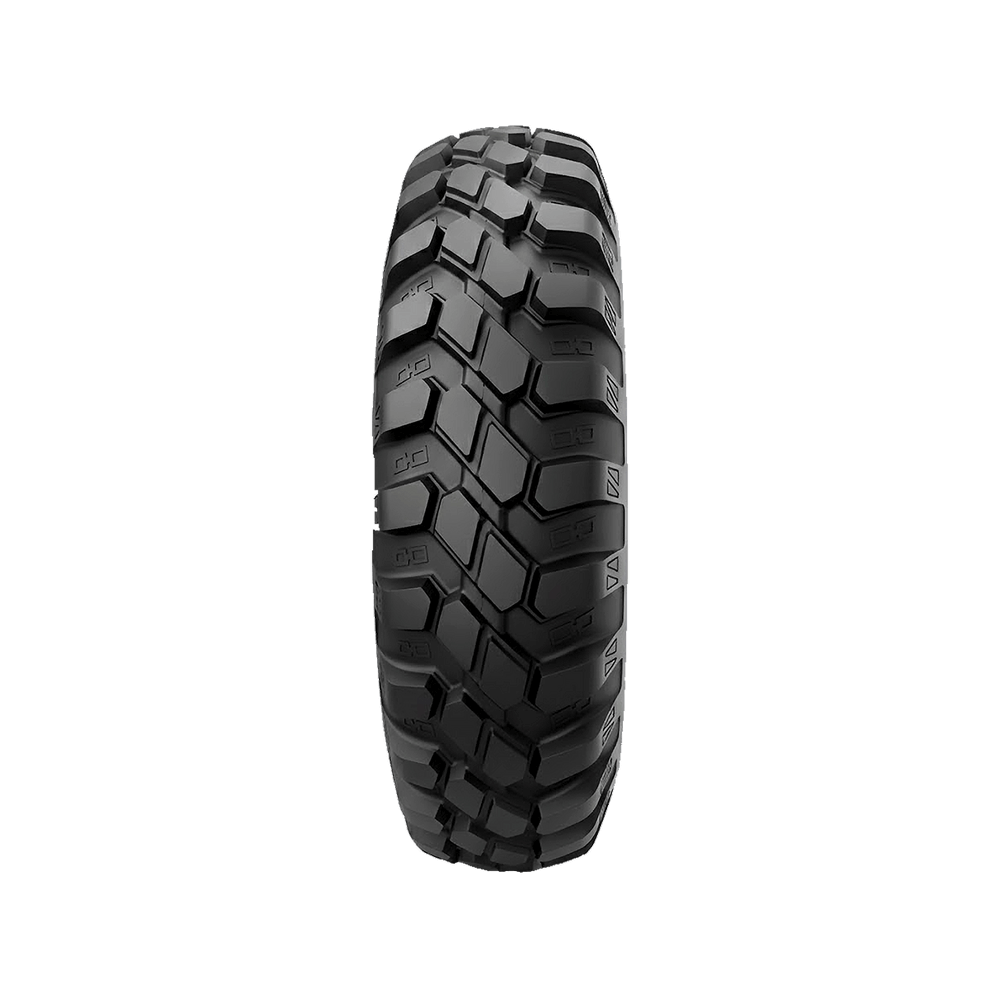

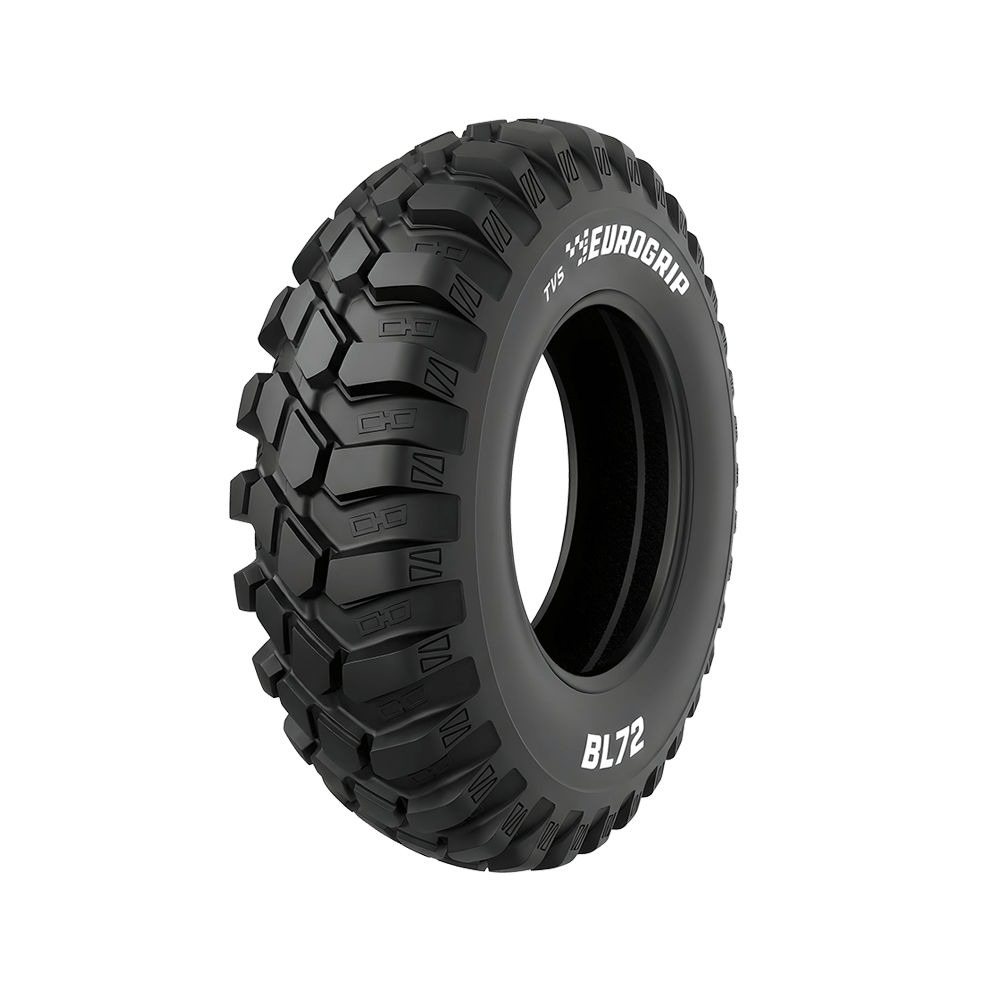

The BL 72 is a new approach to front tyres for 2WD backhoe loaders and industrial tractors. The ideally spaced non-directional block-on-lug tread design provides optimal traction, lateral stability and superior self-cleaning. The raised bridge in the centre line of the tyre, provides stability to the lugs providing smooth on-road performance and improved steering.
IND
A6
Bias
Suitable for
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 9.00-16 | 6.00G | - | 258 | 930 | 430 | 2790 | TT | 16 | 137A6 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | |||||||||||||||||
| 9.00-16 | 6.00G | - | 258 | 930 | 430 | 2790 | TT | 16 | 137A6 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
