SLCM Tyres

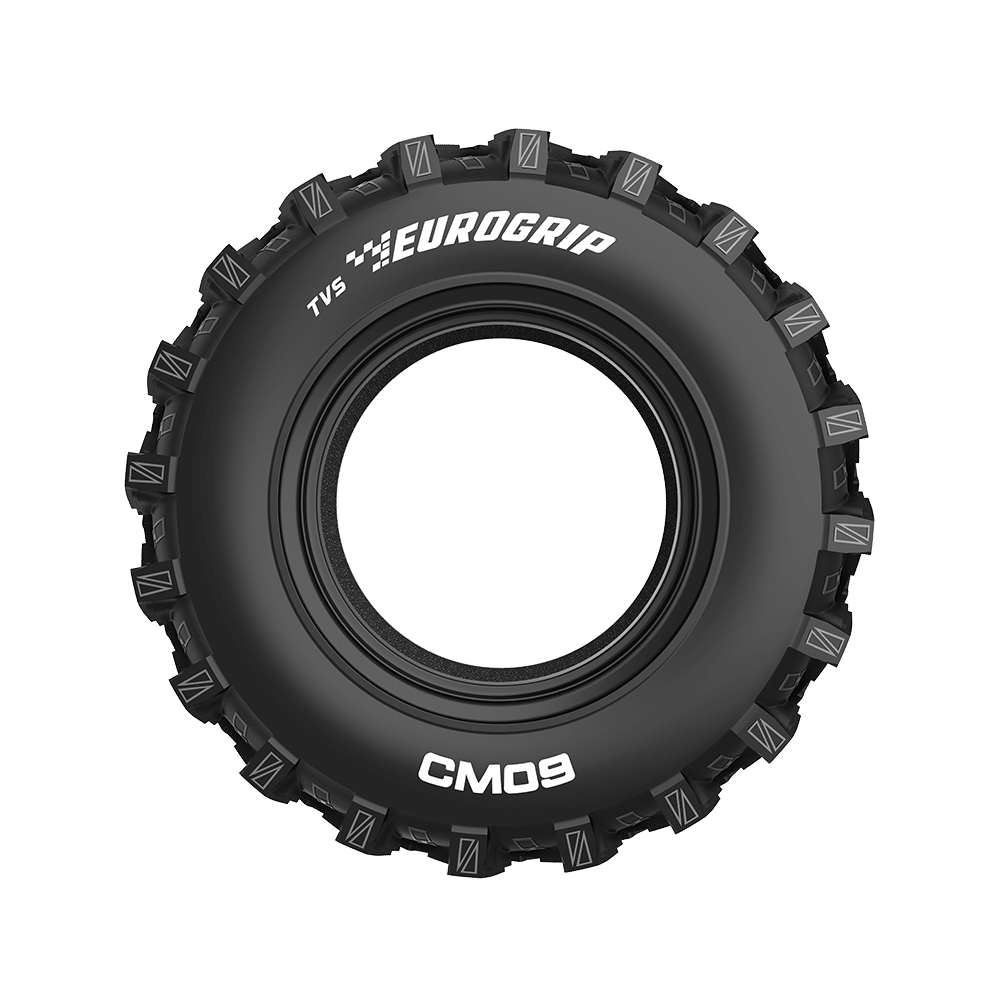

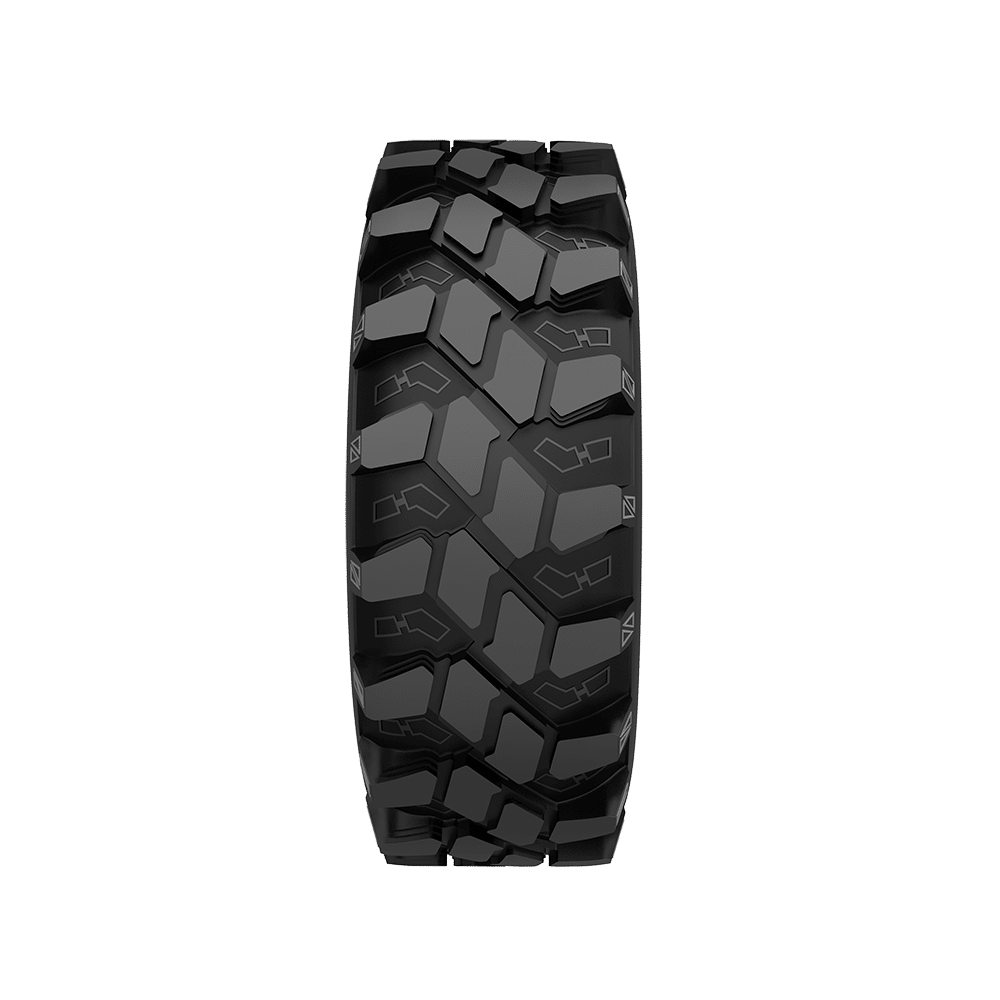

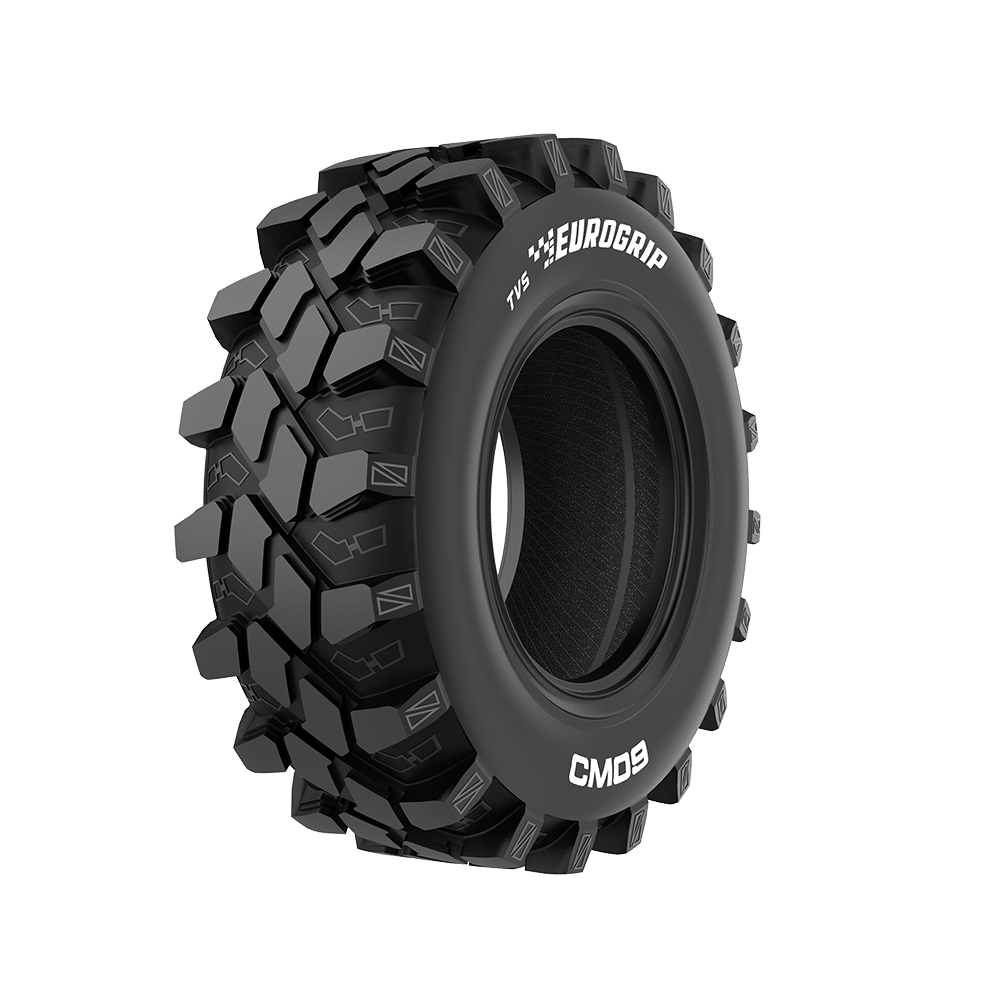

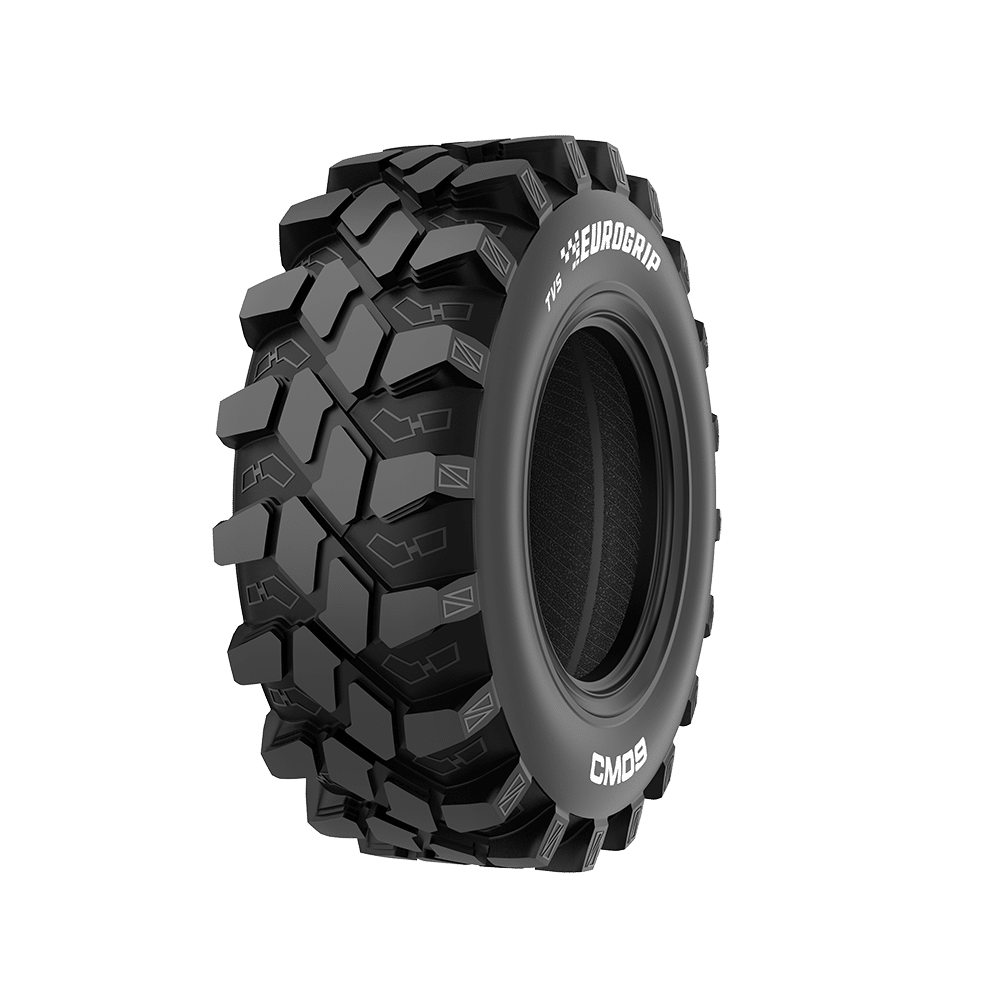

CM 09
The CM 09 is a non-directional tyre designed for construction machinery. It has been engineered to provide optimum traction on a variety of underfoot conditions while maintaining good handling and ride. The tough construction and superior compound provides superior puncture resistance and overall better life.
R-4
A8
Bias
Suitable for
Compact Wheel Loader
Self Loading Concrete Mixer
Telescopic Handler
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 400/70-20 | 13 | - | 410 | 1100 | 475 | 3285 | TL | 16 | 155A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 400/70-20 | 13 | - | 410 | 1100 | 475 | 3285 | TL | 16 | 155A8 | Textile | + | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Load Capacity Per Tyre (Constant load)
Load Capacity Per Tyre (Cyclic Load)
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
