Surface Mining Tyres
EL 09 PLUS

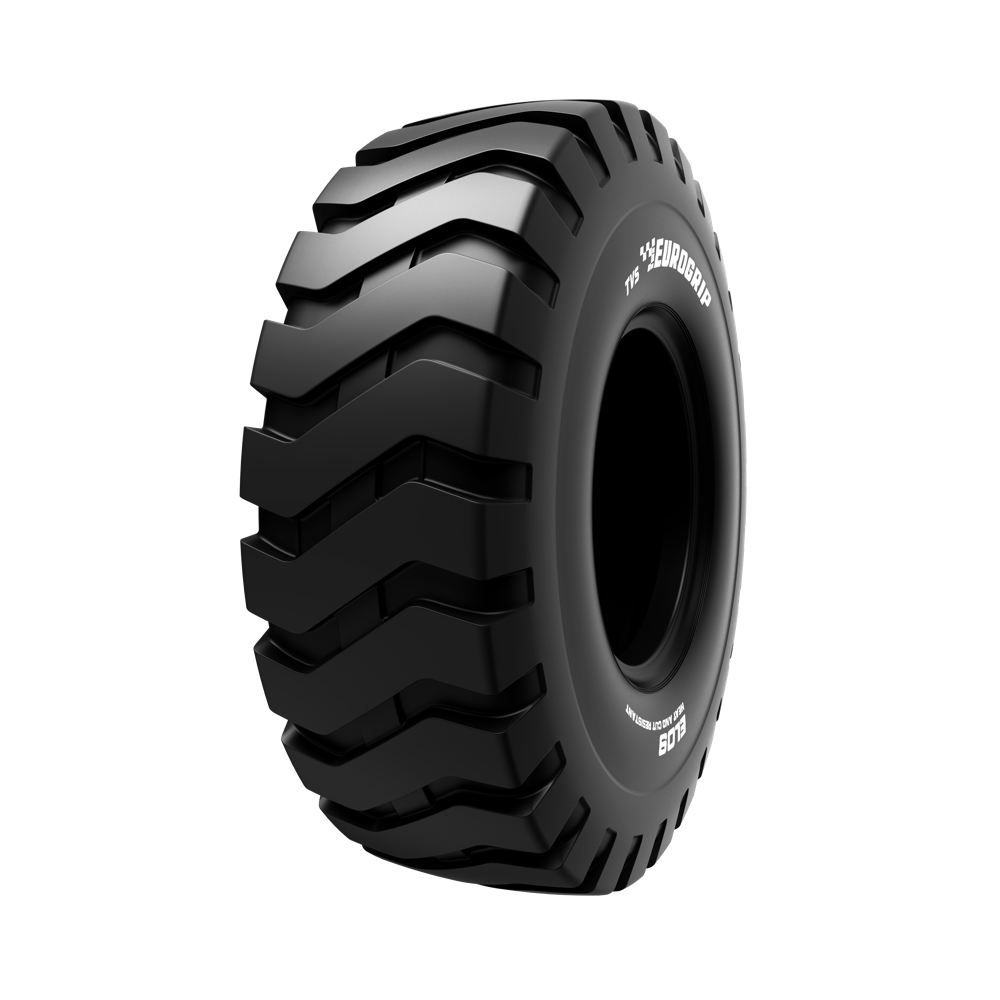

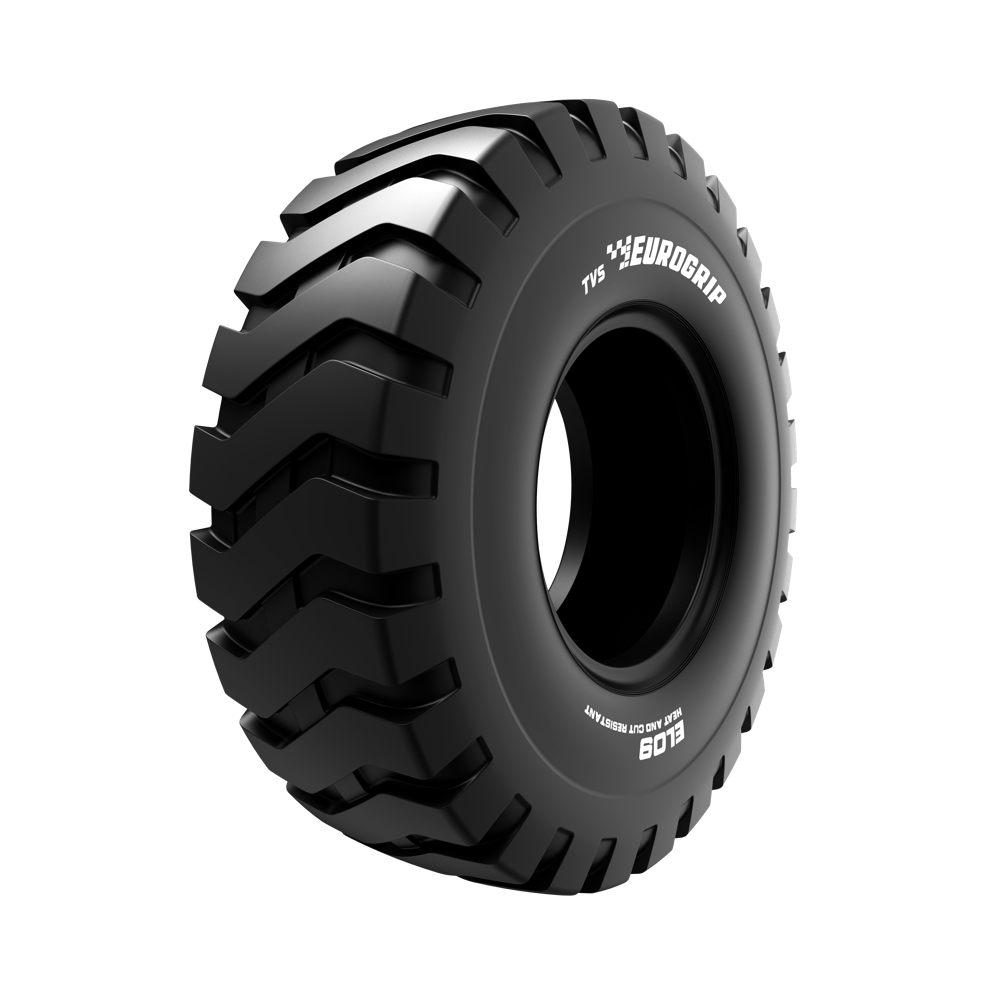

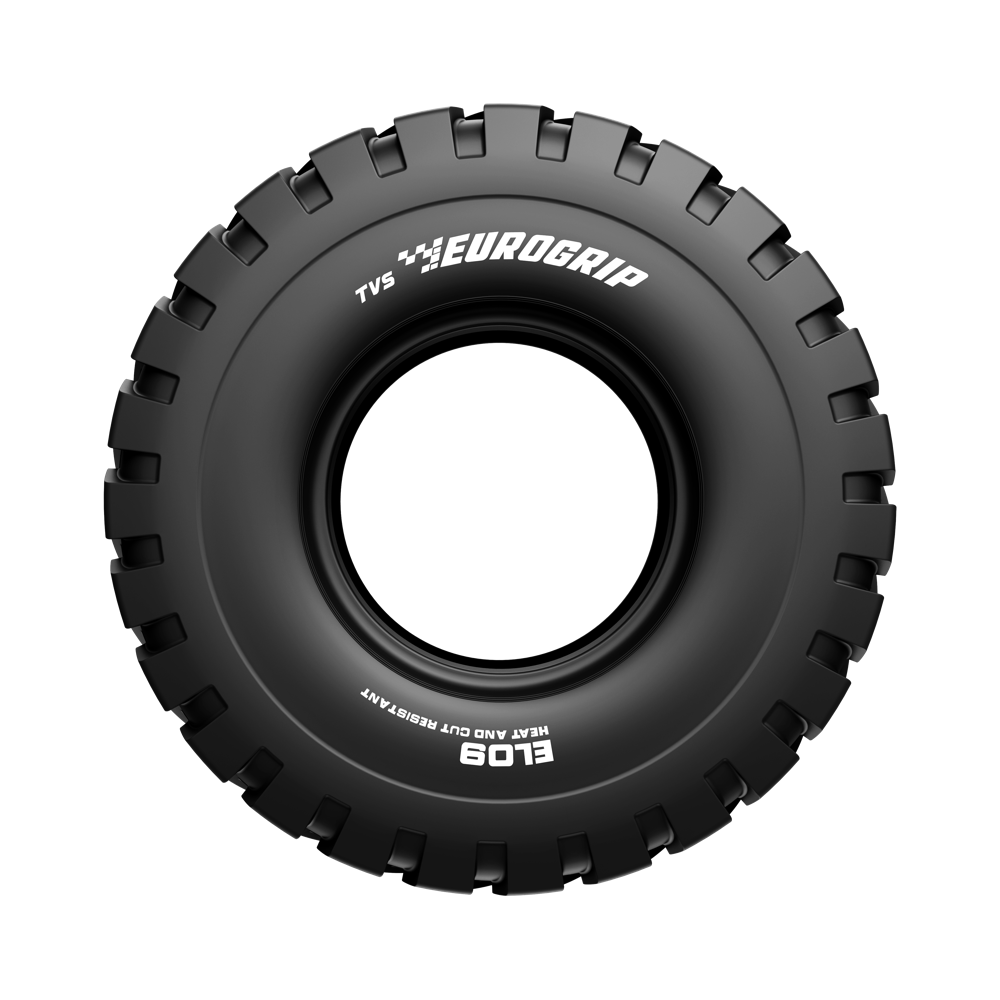

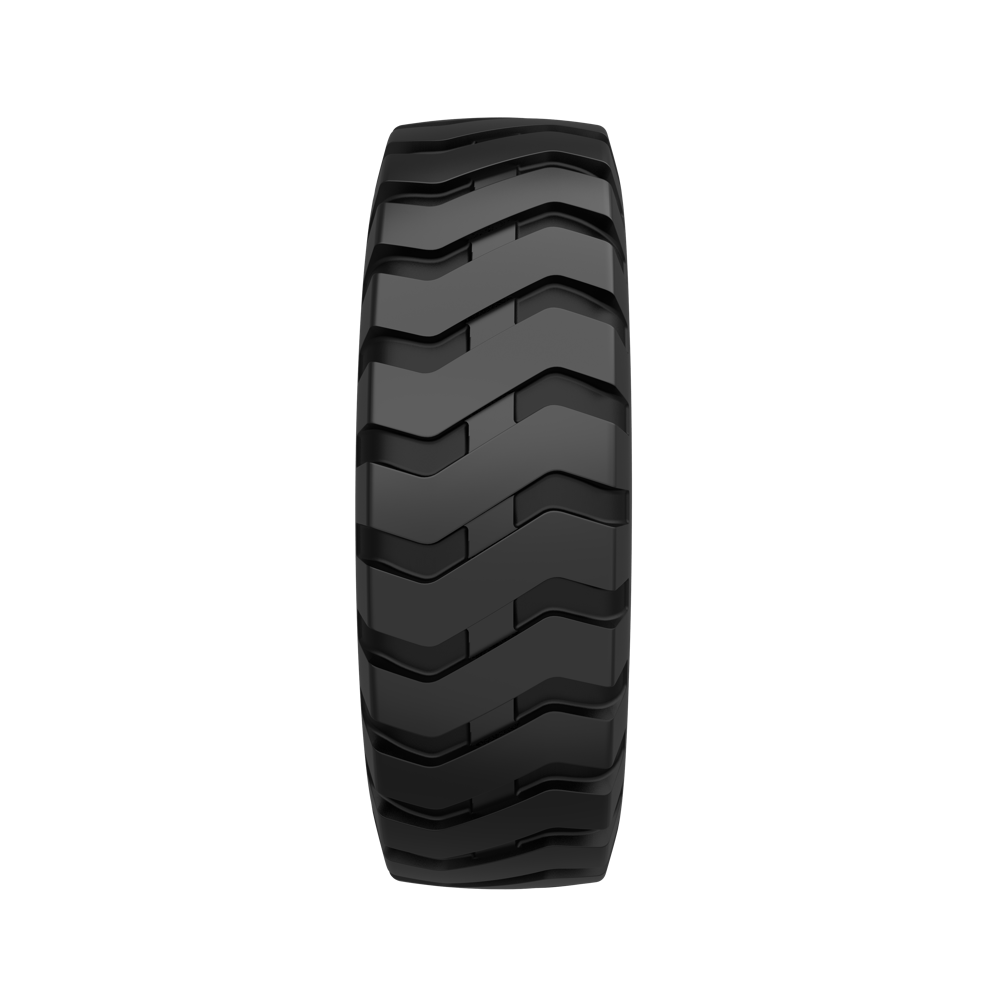

The EL 09 Plus E-3/L-3 tyre is built with heat resistant compound and is suitable for all weather conditions. Its special compound and heavy-duty casing reduces and withstands cuts, snags and external impacts. This tyre is suited for wheel loaders and dumpers working on challenging terrain.
E-3/L-3
A2/B
Bias
Suitable for
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 17.5-25 (L-3) | 14.00/1.5X25 | - | 450 | 1350 | 595 | 3955 | TL | 16 | 171A2 | |
| 17.5-25 (L-3) | 14.00/1.5X25 | - | 450 | 1350 | 595 | 3955 | TT/TL | 20 | 181A2 | |
| 17.5-25 (E-3/L-3) | 14.00/1.5X25 | - | 450 | 1350 | 0 | 0 | TT/TL | 20 | 181A2 | 164B | |
| 23.5-25 | 19.5/2.5x25 | - | 605 | 1635 | 735 | 4835 | TT/TL | 20 | 191A2 | 177B | |
| 23.5-25 | 19.5/2.5x25 | - | 605 | 1635 | 735 | 4835 | TL | 24 | 196A2 | 180B | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||||||||||||||
| 17.5-25 (E-3/L-3) | 14.00/1.5X25 | - | 450 | 1350 | 0 | 0 | TT/TL | 20 | 181A2 | 164B | Textile | + | ||||||||||||
|
Load Capacity Per Tyre
|
|||||||||||||||||||||||
| 17.5-25 (L-3) | 14.00/1.5X25 | - | 450 | 1350 | 595 | 3955 | TL | 16 | 171A2 | Textile | + | ||||||||||||
|
Load Capacity Per Tyre
|
|||||||||||||||||||||||
| 17.5-25 (L-3) | 14.00/1.5X25 | - | 450 | 1350 | 595 | 3955 | TT/TL | 20 | 181A2 | Textile | + | ||||||||||||
|
Load Capacity Per Tyre
|
|||||||||||||||||||||||
| 23.5-25 | 19.5/2.5x25 | - | 605 | 1635 | 735 | 4835 | TT/TL | 20 | 191A2 | 177B | Textile | + | ||||||||||||
|
Load Capacity Per Tyre
|
|||||||||||||||||||||||
| 23.5-25 | 19.5/2.5x25 | - | 605 | 1635 | 735 | 4835 | TL | 24 | 196A2 | 180B | Textile | + | ||||||||||||
|
Load Capacity Per Tyre
|
|||||||||||||||||||||||
