EL 18

Surface Mining Tyres

EL 18

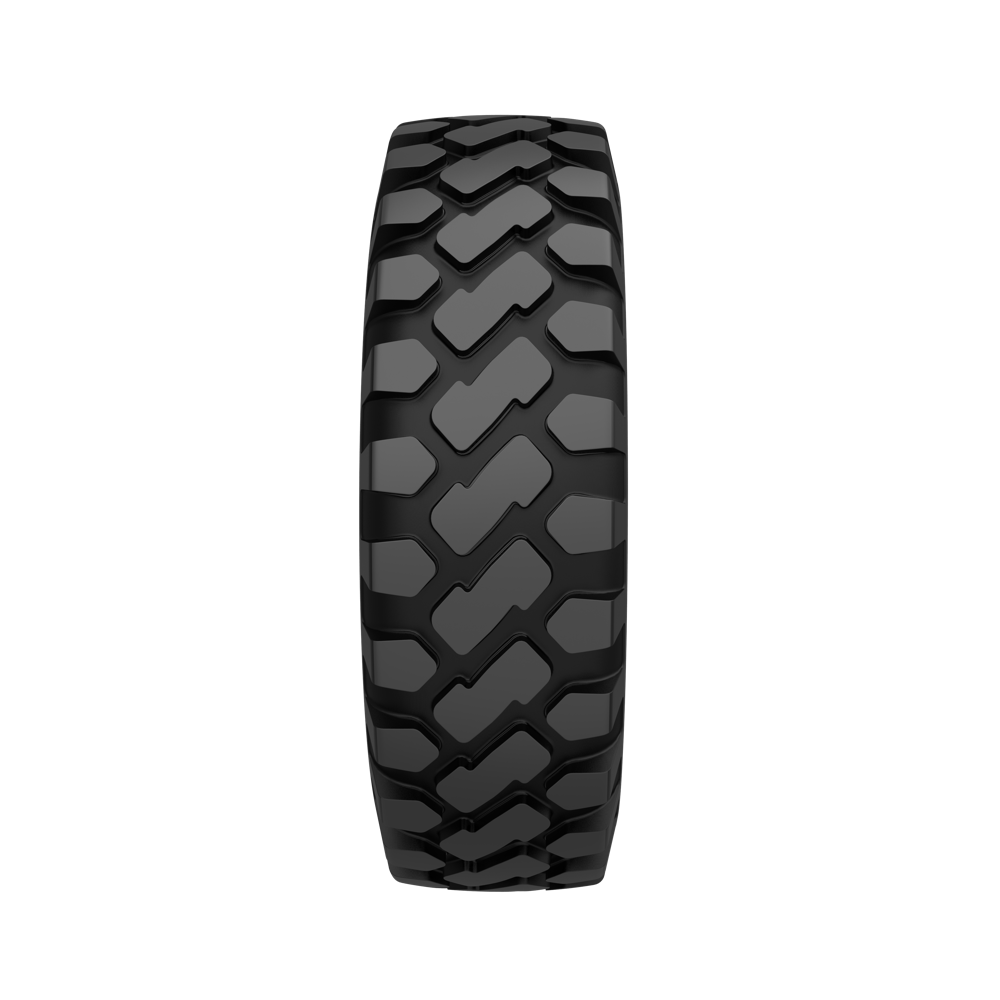

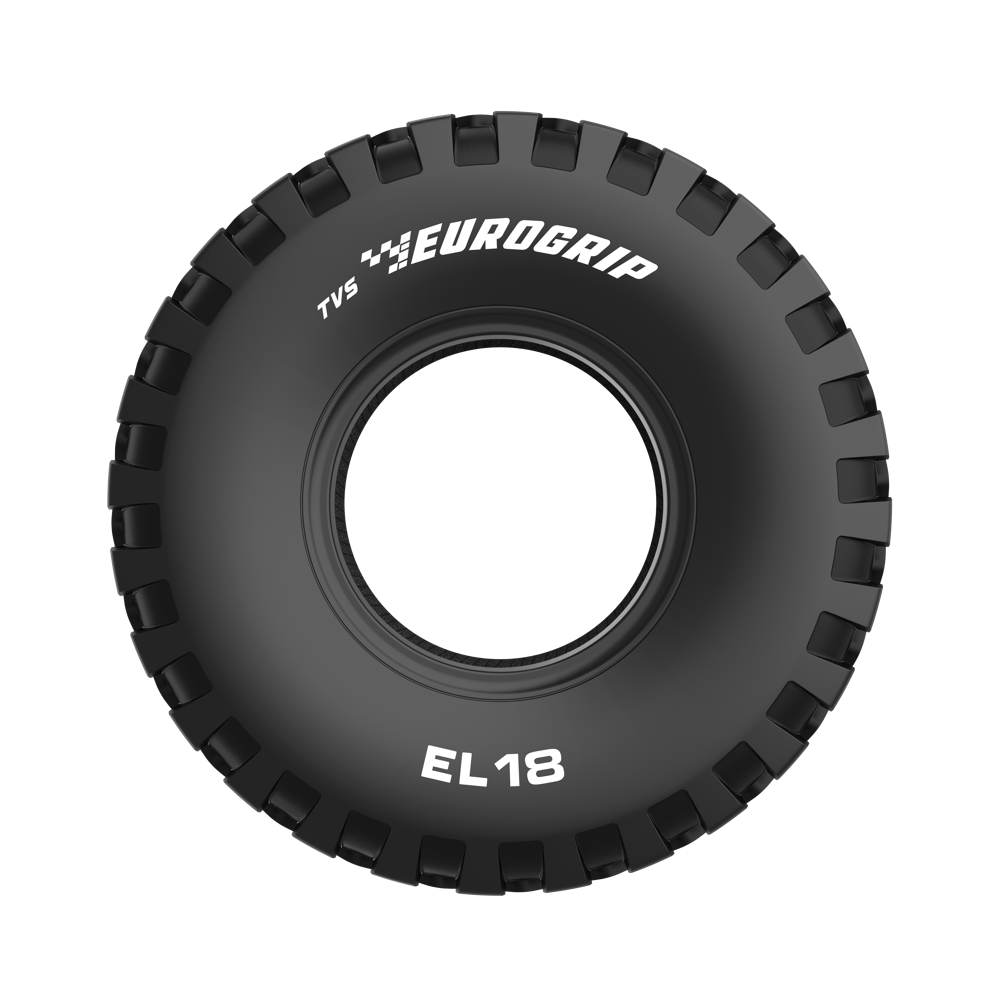

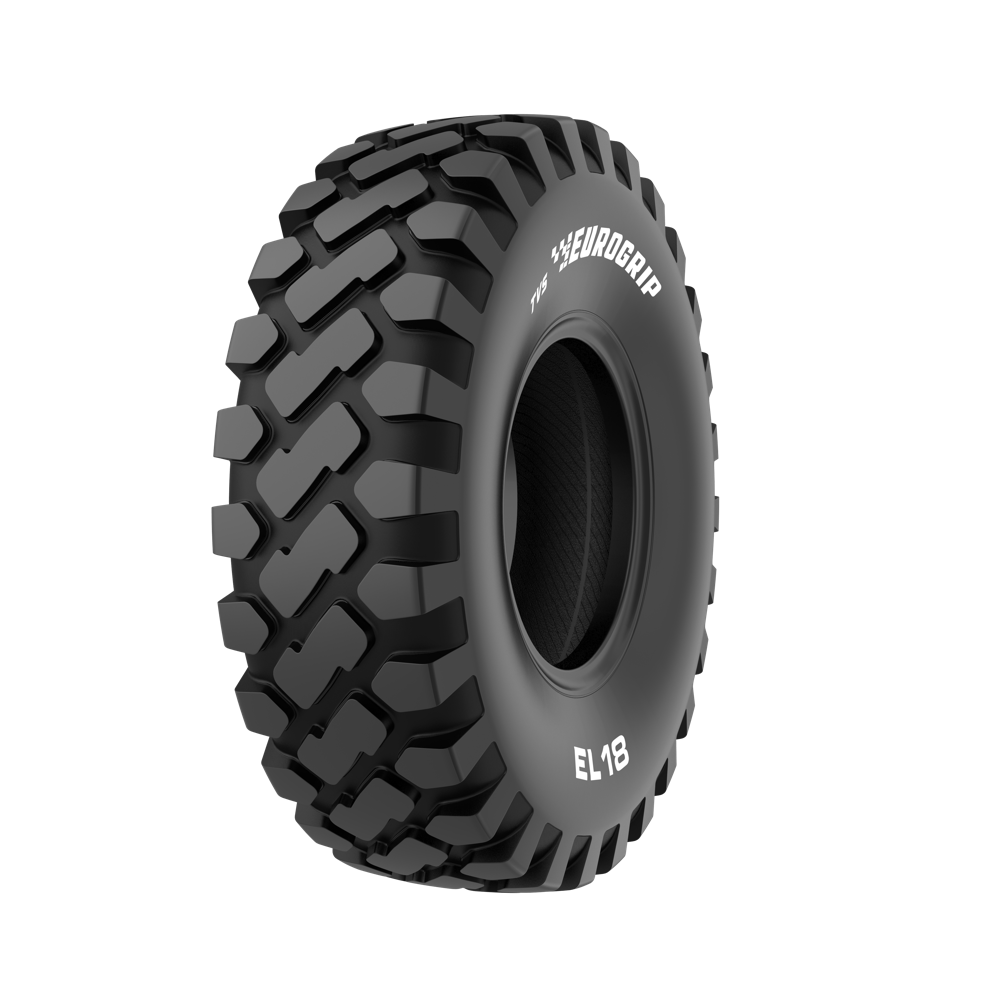

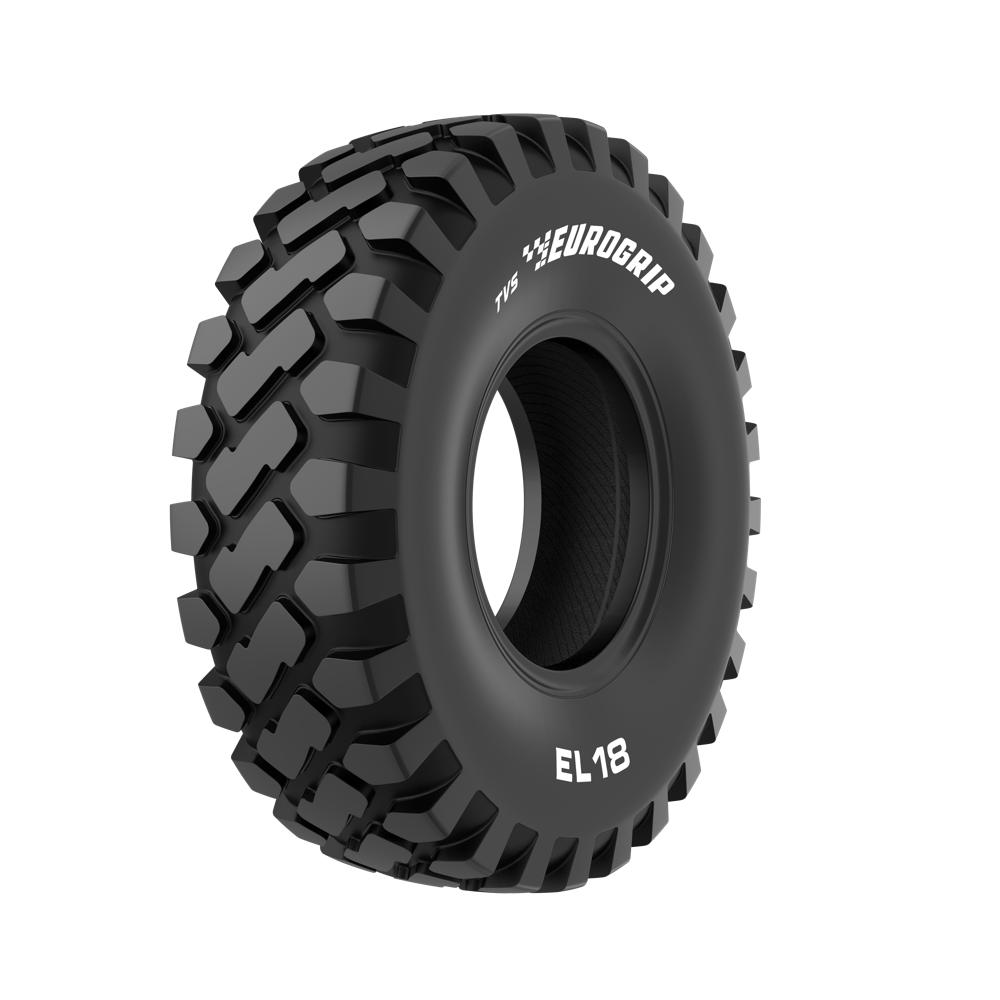

The EL 18 E-3/L-3 is a versatile earthmover tyre, designed primarily for Wheel loaders and dump trucks. Its non-directional stepped treads spaced optimally provide excellent self-cleaning, which enables excellent traction on any surface. The flat sidewall minimises damages caused by external impacts significantly and leads to even wear of the treads. It is a tyre built for long service life.
 E-3/L-3
 A2/B
 Bias
Suitable for
https://www.tvseurogripoht.com/?suitable-for=articulated-dump-truck

Wheel Loader

Articulated Dump Truck

Know more about this product

Enquire
Enquire now
Enquire now
Technical Data
TYRE SIZEREC. RIM (inch)ALT. RIM (inch)UNLOADED DIMENSIONS (mm) TYPEPLY RATINGLI & SS
SWODSLRRC
14.00-248 - 38013556153975TL12147A8
14.00-248 - 38013556153975TL16153A8
15.5-2512.00/1.3x25 - 40512905853840TL12168A2
15.5-2512.00/1.3x25 - 40512905853840TL12149B
15.5-2512.00/1.3x25 - 40512905853840TL12142A8
15.5-2512.00/1.3x25 - 40512905853840TL16175A2
15.5-2512.00/1.3x25 - 40512905853840TL16156B
15.5-2512.00/1.3x25 - 40512905853840TL16152A8
17.5-2514.00/1.5x25 - 46513756154065TL12171A2
17.5-2514.00/1.5x25 - 46513756154065TL12153B
17.5-2514.00/1.5x25 - 46513756154065TL12145A8
17.5-2514.00/1.5x25 - 46513756154065TL16172A2
17.5-2514.00/1.5x25 - 46513756154065TL16158B
17.5-2514.00/1.5x25 - 46513756154065TL16150A8
20.5-2517 - 56215186974490TL16181A2 | 167B
20.5-2517 - 56215186974490TL20186A2 | 170B
23.5-2519.50/2.5x25 - 62016357254845TL20191A2
23.5-2519.50/2.5x25 - 62016357254845TL20177B
23.5-2519.50/2.5x25 - 62016357254845TL20167A8
23.5-2519.50/2.5x25 - 62016357254845TL24196A2
23.5-2519.50/2.5x25 - 62016357254845TL24180B
26.5-2522.00/3.0x25 - 68017357605080TL28203A2
26.5-2522.00/3.0x25 - 68017357605080TL28188B

IMPERIAL

METRIC

Technical Table 01

TYRE SIZE RIM SIZE REC. RIM ALT. RIM UNLOADED DIMENSIONS (mm) PLY RATING LOAD INDEX SPEED SYMBOL
SW OD SLR RC
15.0/70-18 18 W13 W17
W19 		400 980 440 2886 14 128 A8
16 132 A9
Technical Data
Intl.
US
Tyre Size Rec. RIM
(inch)		 Alt. RIM
(inch)		 Unloaded dimensions (mm) Type Ply Rating Load Index & Speed Symbol Fabric Load table
Section Width Overall Diameter Static Load Radius Rolling Circumference
14.00-24 8 - 380 1355 615 3975 TL 12 147A8 Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)2.75 (bar)
Motor Grader (2.75 Bar)403075
14.00-24 8 - 380 1355 615 3975 TL 16 153A8 Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)3.75 (bar)
Motor Grader (3.75 Bar)403650
15.5-25 12.00/1.3x25 - 405 1290 585 3840 TL 12 168A2 Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)2.5 (bar)
Transport (2.5 Bar)503250
Motor Grader (2.20 Bar)402650
Loading (4 Bar)105600
15.5-25 12.00/1.3x25 - 405 1290 585 3840 TL 12 149B Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)2.5 (bar)
Transport (2.5 Bar)503250
Motor Grader (2.20 Bar)402650
Loading (4 Bar)105600
15.5-25 12.00/1.3x25 - 405 1290 585 3840 TL 12 142A8 Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)2.5 (bar)
Transport (2.5 Bar)503250
Motor Grader (2.20 Bar)402650
Loading (4 Bar)105600
15.5-25 12.00/1.3x25 - 405 1290 585 3840 TL 16 175A2 Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)3.25 (bar)
Transport (3.25 Bar)504000
Motor Grader (3.25 Bar)403550
Loading (5.5 Bar)106900
15.5-25 12.00/1.3x25 - 405 1290 585 3840 TL 16 156B Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)3.25 (bar)
Transport (3.25 Bar)504000
Motor Grader (3.25 Bar)403550
Loading (5.5 Bar)106900
15.5-25 12.00/1.3x25 - 405 1290 585 3840 TL 16 152A8 Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)3.25 (bar)
Transport (3.25 Bar)504000
Motor Grader (3.25 Bar)403550
Loading (5.5 Bar)106900
17.5-25 14.00/1.5x25 - 465 1375 615 4065 TL 12 171A2 Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)2.25 (bar)
Transport (2.25 Bar)503650
Motor Grader (2.0 Bar)402900
Loading (3.5 Bar)106150
17.5-25 14.00/1.5x25 - 465 1375 615 4065 TL 12 153B Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)2.25 (bar)
Transport (2.25 Bar)503650
Motor Grader (2.0 Bar)402900
Loading (3.5 Bar)106150
17.5-25 14.00/1.5x25 - 465 1375 615 4065 TL 12 145A8 Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)2.25 (bar)
Transport (2.25 Bar)503650
Motor Grader (2.0 Bar)402900
Loading (3.5 Bar)106150
17.5-25 14.00/1.5x25 - 465 1375 615 4065 TL 16 172A2 Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)3 (bar)
Transport (3.00 Bar)504250
Motor Grader (2.75 Bar)403350
Loading (4.75 Bar)107300
17.5-25 14.00/1.5x25 - 465 1375 615 4065 TL 16 150A8 Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)3 (bar)
Transport (3.00 Bar)504250
Motor Grader (2.75 Bar)403350
Loading (4.75 Bar)107300
17.5-25 14.00/1.5x25 - 465 1375 615 4065 TL 16 158B Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)3 (bar)
Transport (3.00 Bar)504250
Motor Grader (2.75 Bar)403350
Loading (4.75 Bar)107300
20.5-25 17 - 562 1518 697 4490 TL 16 181A2 | 167B Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)2.75 (bar)
Transport (2.75 Bar)505450
Loading (3.5 Bar)108250
20.5-25 17 - 562 1518 697 4490 TL 20 186A2 | 170B Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)3.25 (bar)
Transport (3.25 Bar)506000
Loading (4.5 Bar)109500
23.5-25 19.50/2.5x25 - 620 1635 725 4845 TL 20 191A2 Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)3 (bar)
Transport (3.00 Bar)507300
Motor Grader (2.5 Bar)405450
Loading (3.75 Bar)1010900
23.5-25 19.50/2.5x25 - 620 1635 725 4845 TL 20 177B Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)3 (bar)
Transport (3.00 Bar)507300
Motor Grader (2.5 Bar)405450
Loading (3.75 Bar)1010900
23.5-25 19.50/2.5x25 - 620 1635 725 4845 TL 20 167A8 Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)3 (bar)
Transport (3.00 Bar)507300
Motor Grader (2.5 Bar)405450
Loading (3.75 Bar)1010900
23.5-25 19.50/2.5x25 - 620 1635 725 4845 TL 24 196A2 Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)3.5 (bar)
Transport (3.50 Bar)508000
Loading (4.75 Bar)1012500
23.5-25 19.50/2.5x25 - 620 1635 725 4845 TL 24 180B Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)3.5 (bar)
Transport (3.50 Bar)508000
Loading (4.75 Bar)1012500
26.5-25 22.00/3.0x25 - 680 1735 760 5080 TL 28 203A2 Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)3.5 (bar)
Transport (3.50 Bar)5010000
Loading (4.75 Bar)1015500
26.5-25 22.00/3.0x25 - 680 1735 760 5080 TL 28 188B Textile +

Load Capacity Per Tyre
TYRE LOAD (kg) AT INFLATION PRESSURE
OPERATION TYPESPEED (kmph)3.5 (bar)
Transport (3.50 Bar)5010000
Loading (4.75 Bar)1015500
