Tractor Front Rib Tyres

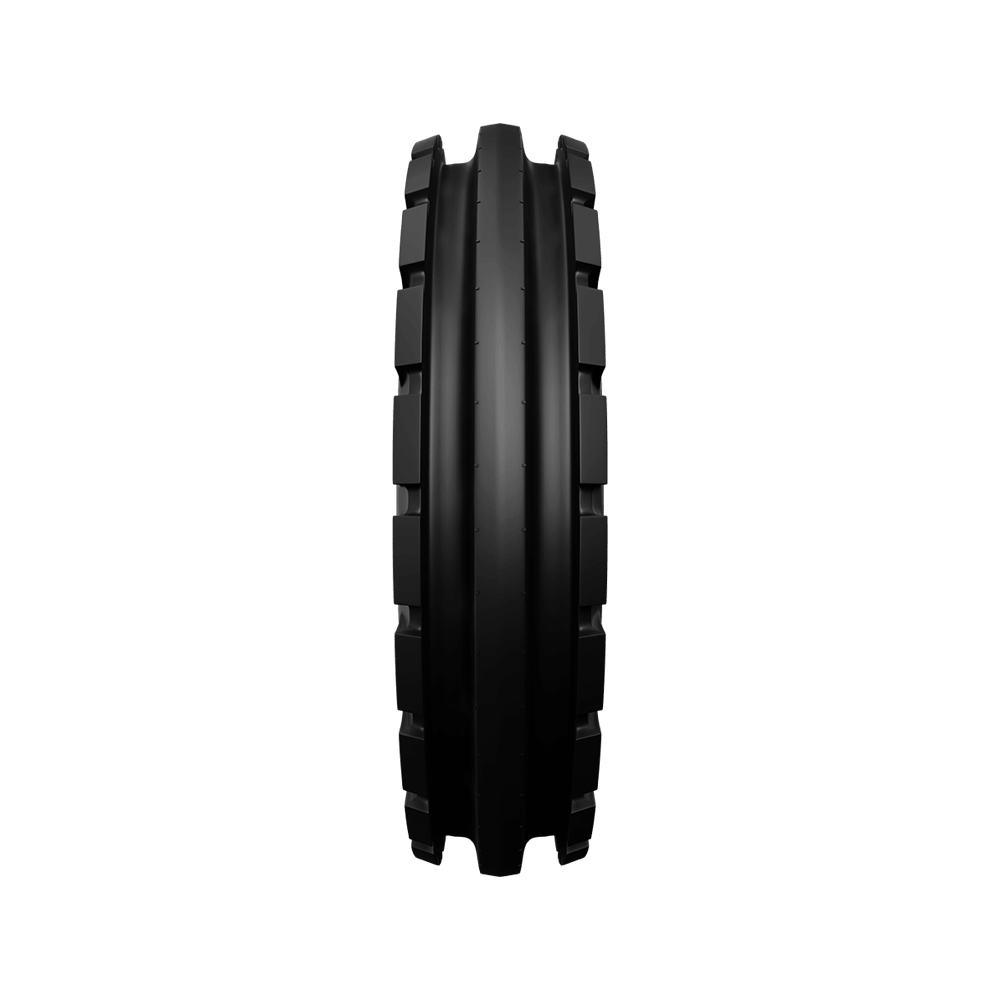

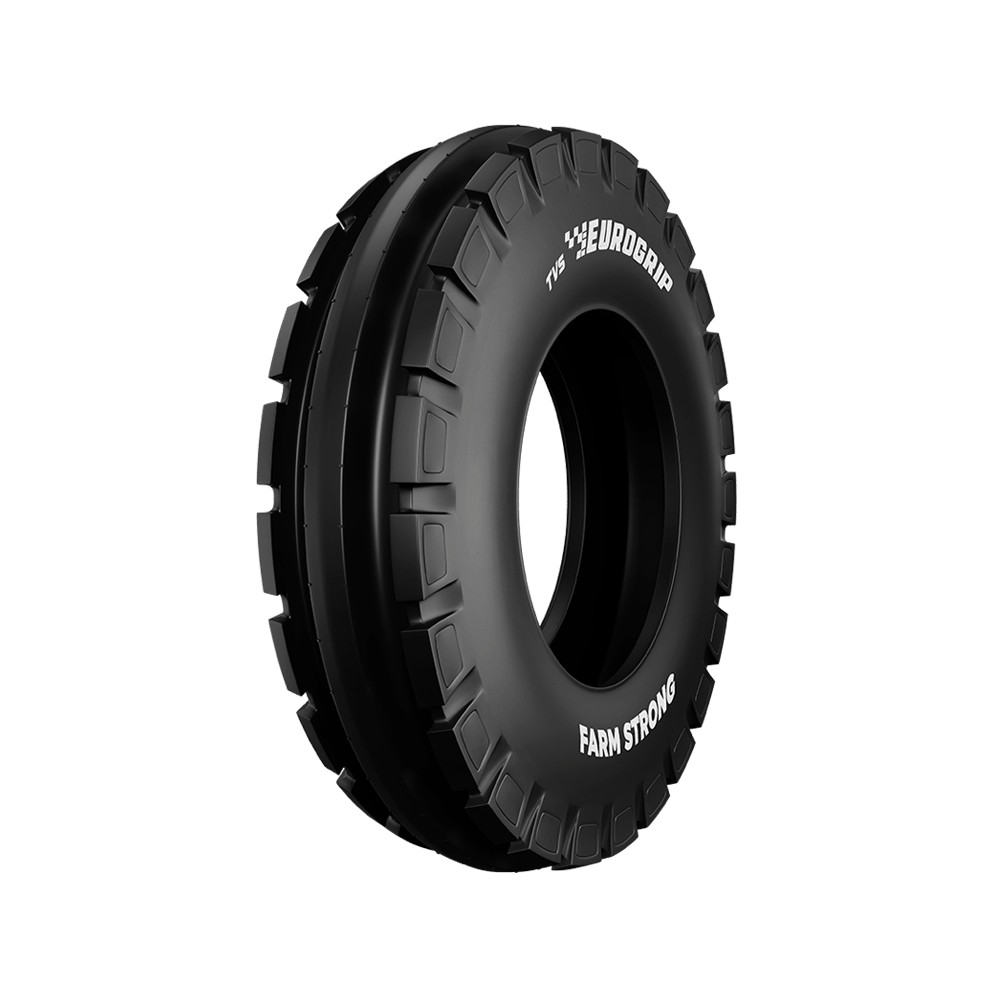

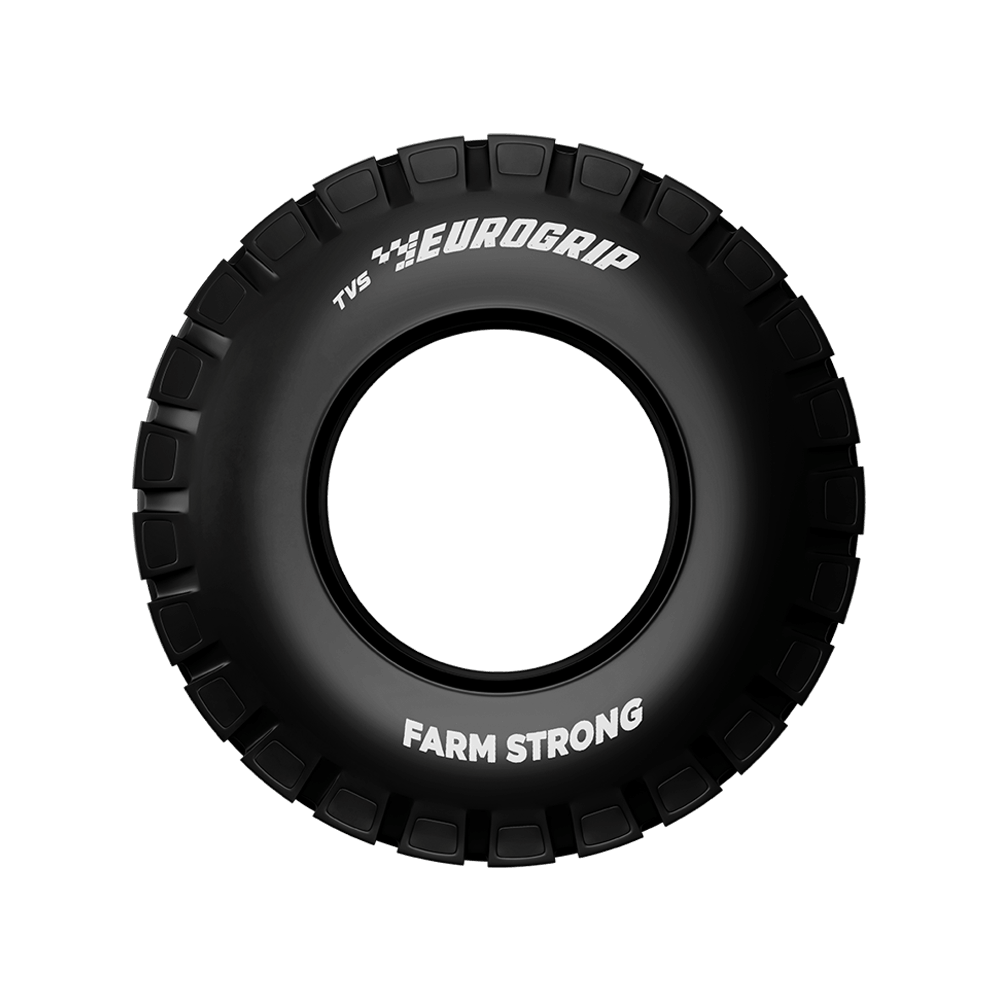

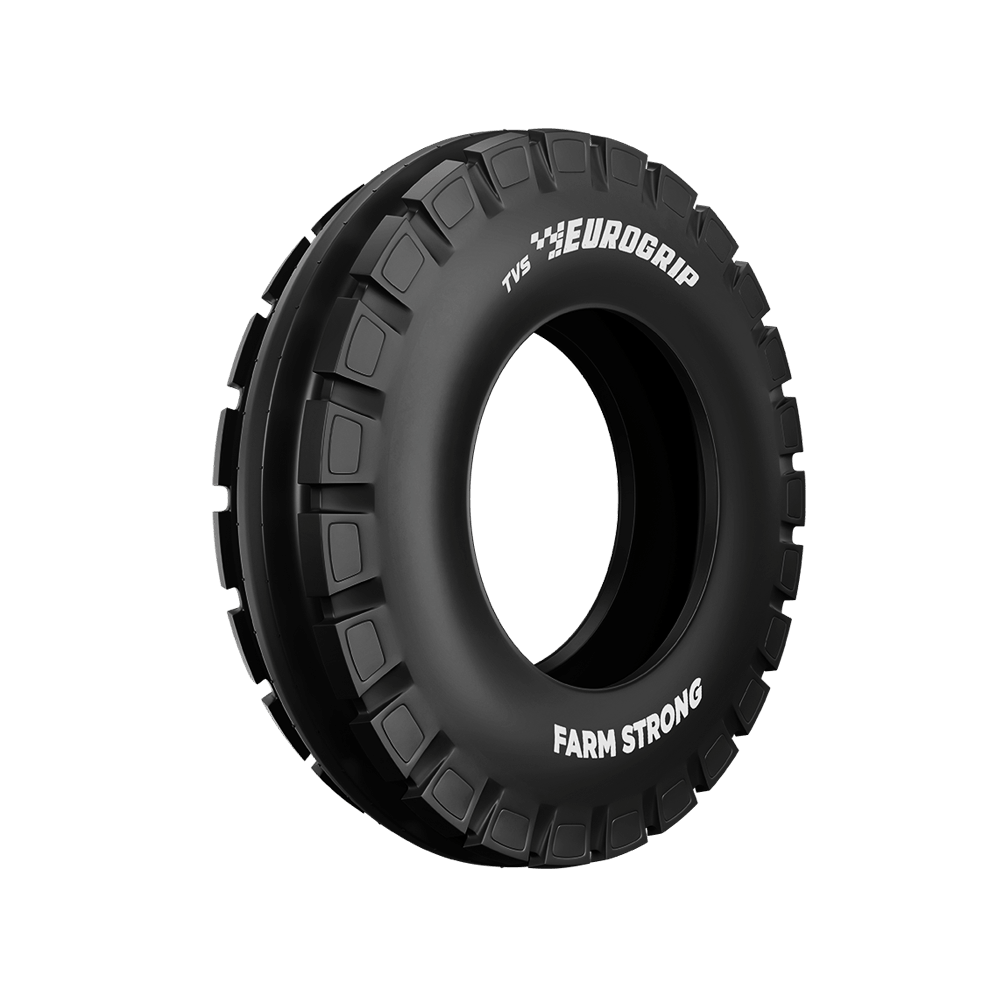

FARMSTRONG F2
The FARM STRONG F-2 tyre is designed for use in tractors as a steering tyre and for towed implements such as trailers and wagons. The tyre is ideal for two-wheeldrive tractors and other towed implements used on wet soil conditions. Designed with wide central rib and notched shoulder ribs, the tyre is built to provide superior directional stability and ease of steering. The notched shoulder ribs assist quick self cleaning in wet conditions. Built with sepcial compound to resist cuts and chipping, the Farm Strong F-2 is engineered to provide long tread life.
F-2
A6
Bias
Suitable for
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 6.00-16 | 4.50E | - | 275 | 752 | 356 | 2168 | TT | 8 | 94A6 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | |||||||||||||||||
| 6.00-16 | 4.50E | - | 275 | 752 | 356 | 2168 | TT | 8 | 94A6 | Textile | + | |||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||
