Tractor Drive Tyres

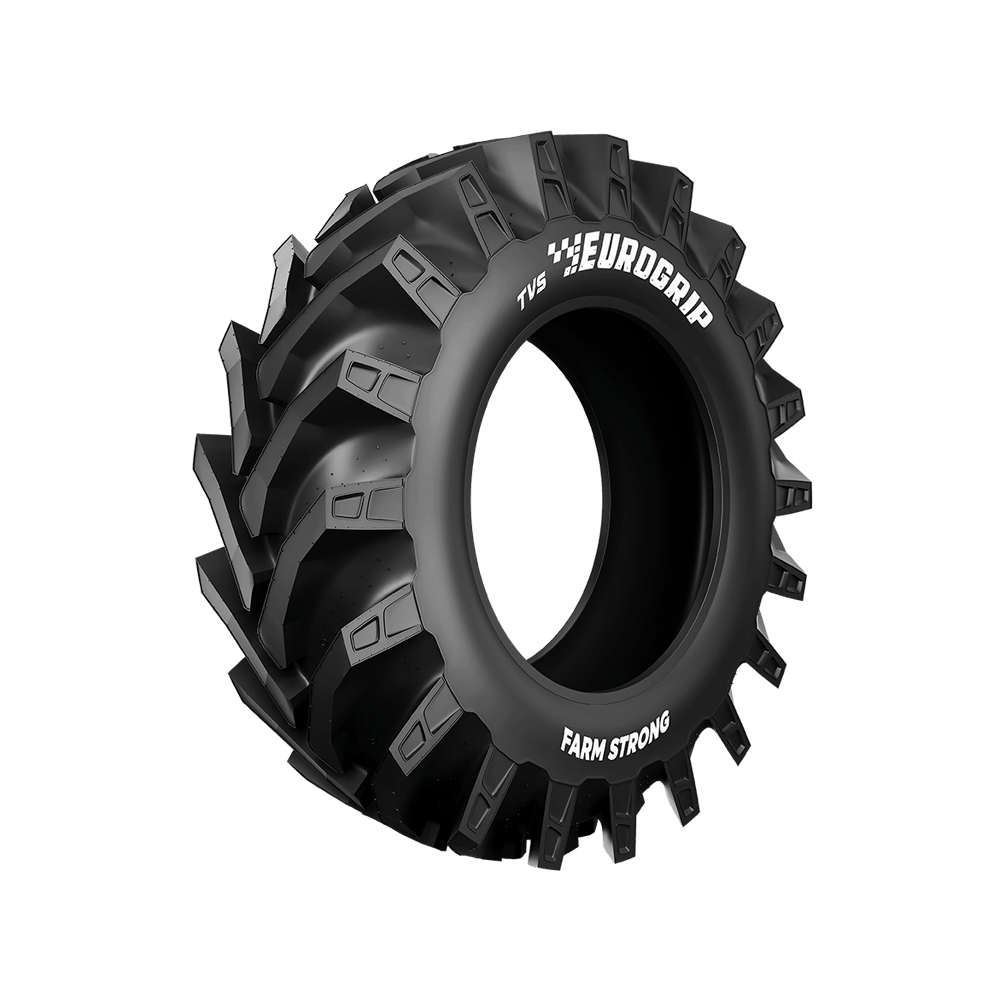

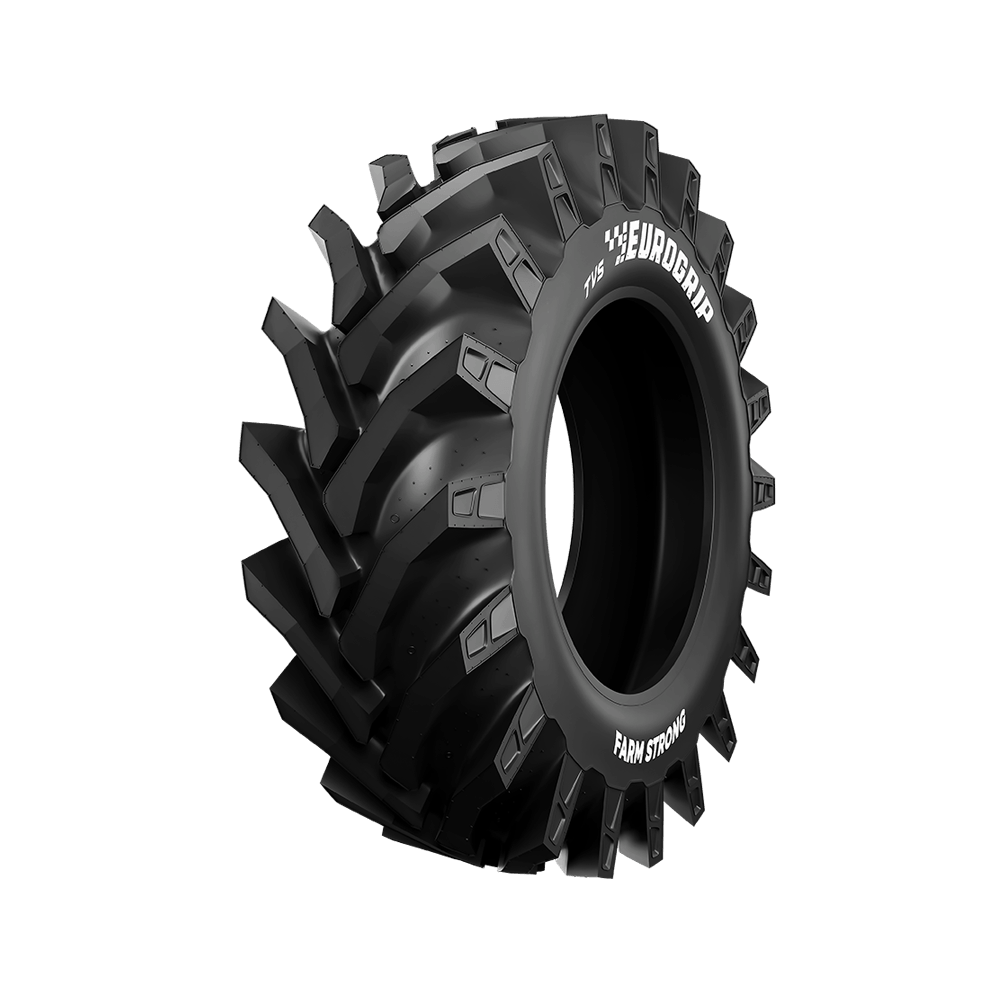

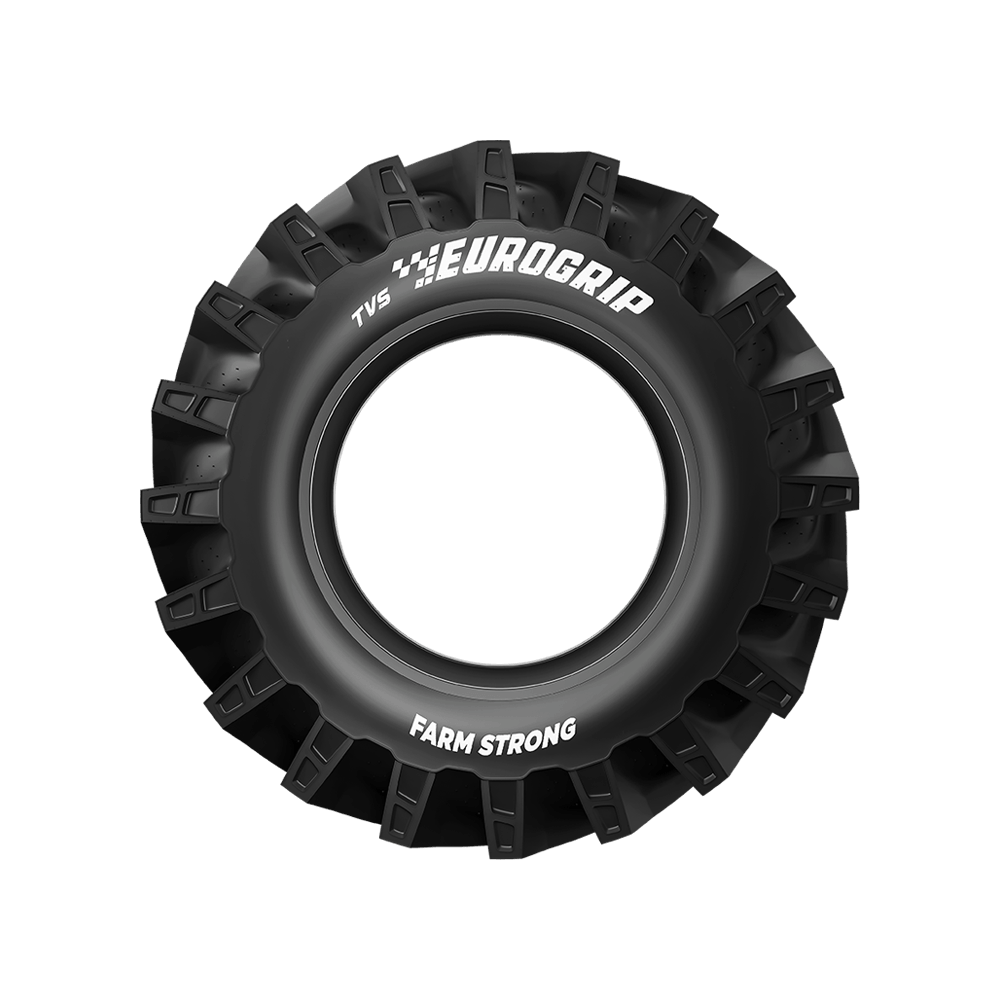

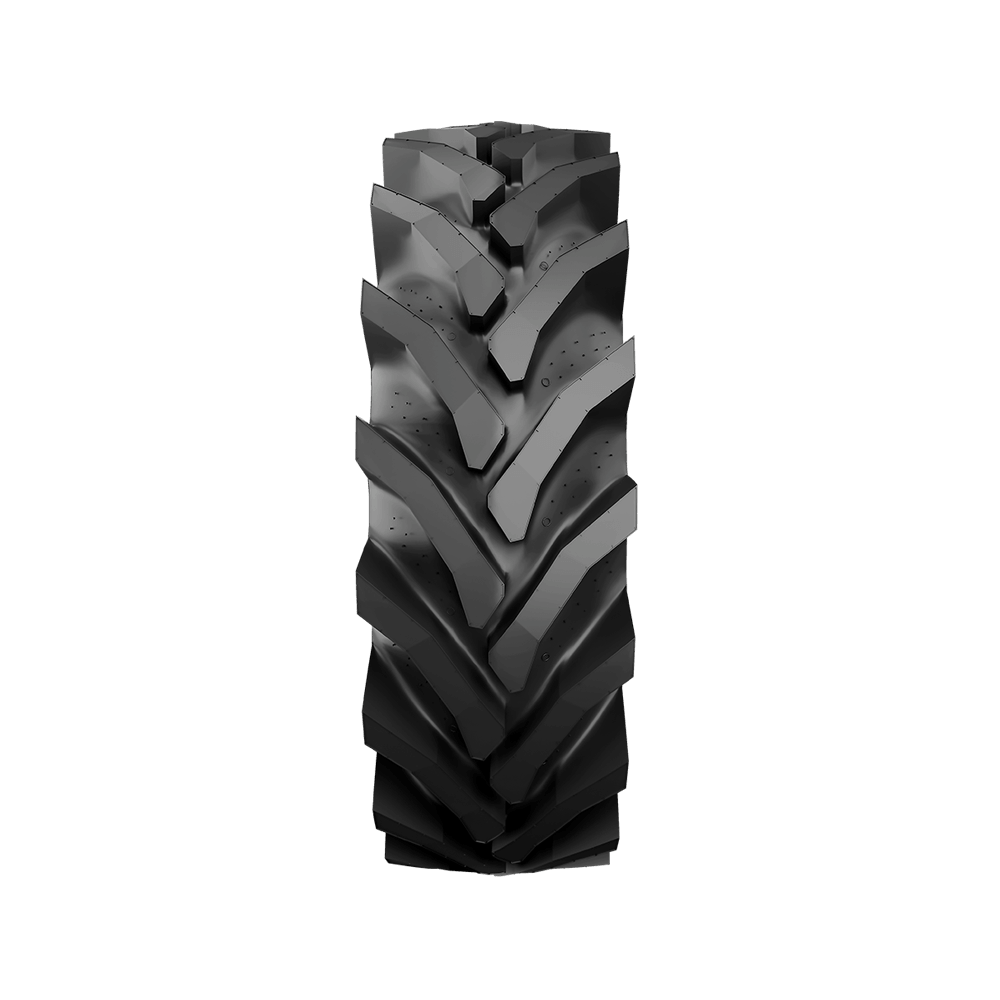

FARMSTRONG R1
The TVS Eurogrip FARMSTRONG is a R-1 bias tyre designed for tractors used in soil preparation and haulage applications. It is built with reinforced casing and special heavy duty compound to resist cutting and chipping of the tread, providing longer life. The optimally designed and spaced lugs provide good self-cleaning and superior traction enhancing machine efficiency. It is designed to perform well even on less than ideal underfoot conditions.
R-1
A6
Bias
Suitable for
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 12.4-28 | W11 | - | 326 | 1279 | 591 | 3782 | TT | 12 | 125A6 | |
| 13.6-28 | W12 | - | 352 | 1349 | 625 | 3983 | TT | 12 | 128A6 | |
| 13.6-28 | W15L | - | 437 | 1456 | 667 | 4266 | TT | 12 | 143A6 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | |||||||||||||||||||
| 12.4-28 | W11 | - | 326 | 1279 | 591 | 3782 | TT | 12 | 125A6 | Textile | + | |||||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||||
| 13.6-28 | W12 | - | 352 | 1349 | 625 | 3983 | TT | 12 | 128A6 | Textile | + | |||||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||||
| 13.6-28 | W15L | - | 437 | 1456 | 667 | 4266 | TT | 12 | 143A6 | Textile | + | |||||||||||
|
Load Capacity Per Tyre
|
||||||||||||||||||||||
