Agricultural Transport Tyres

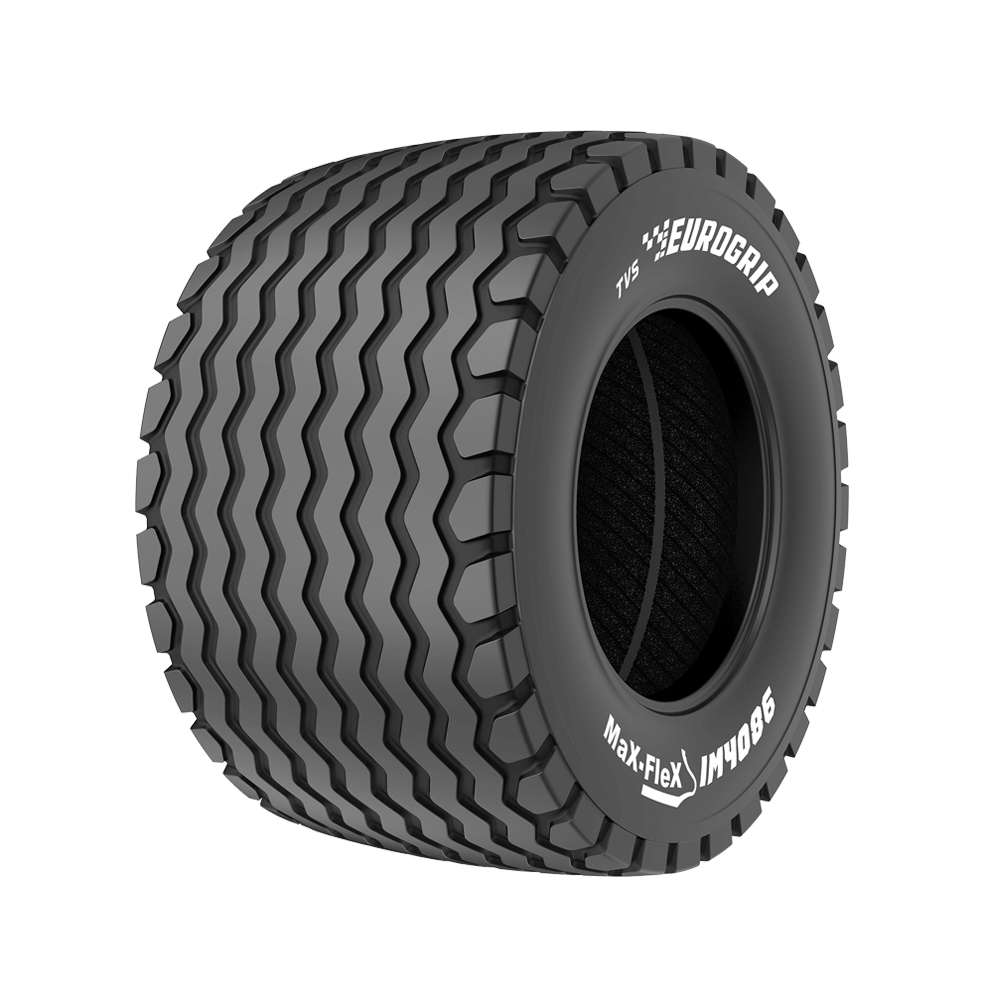

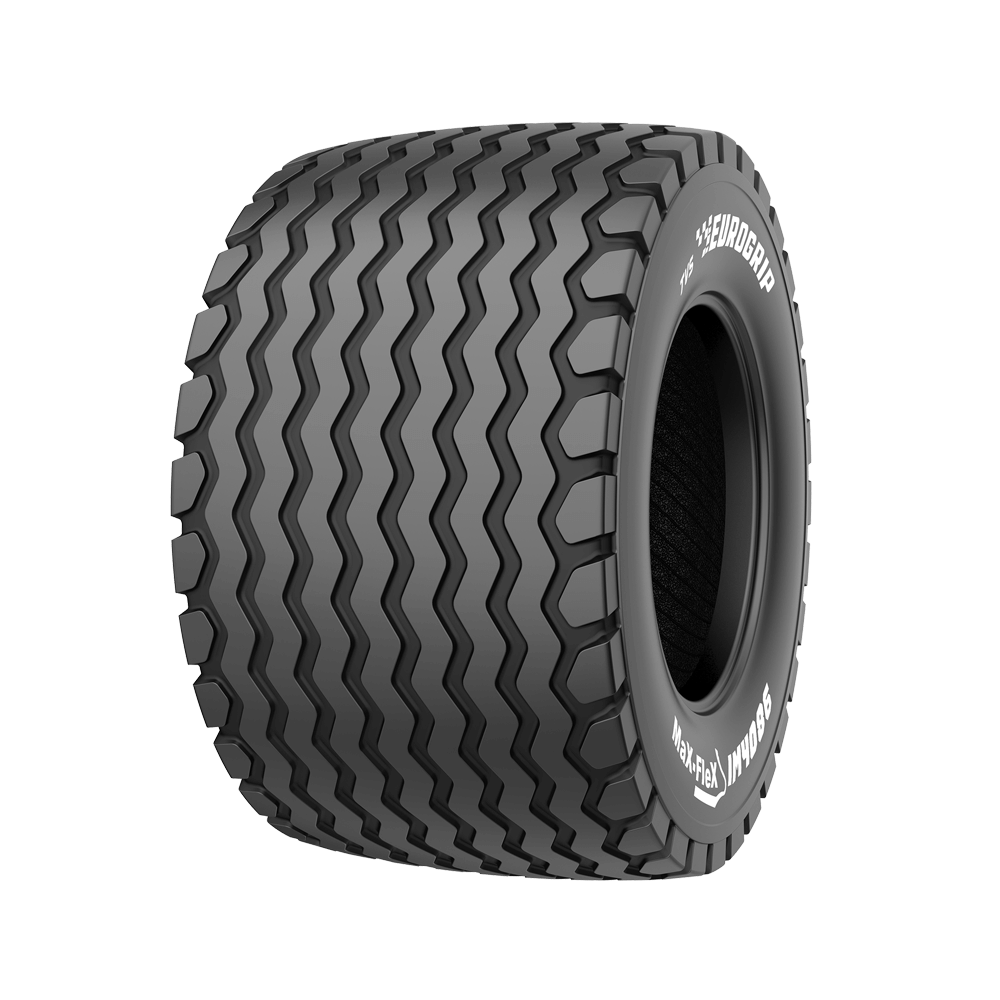

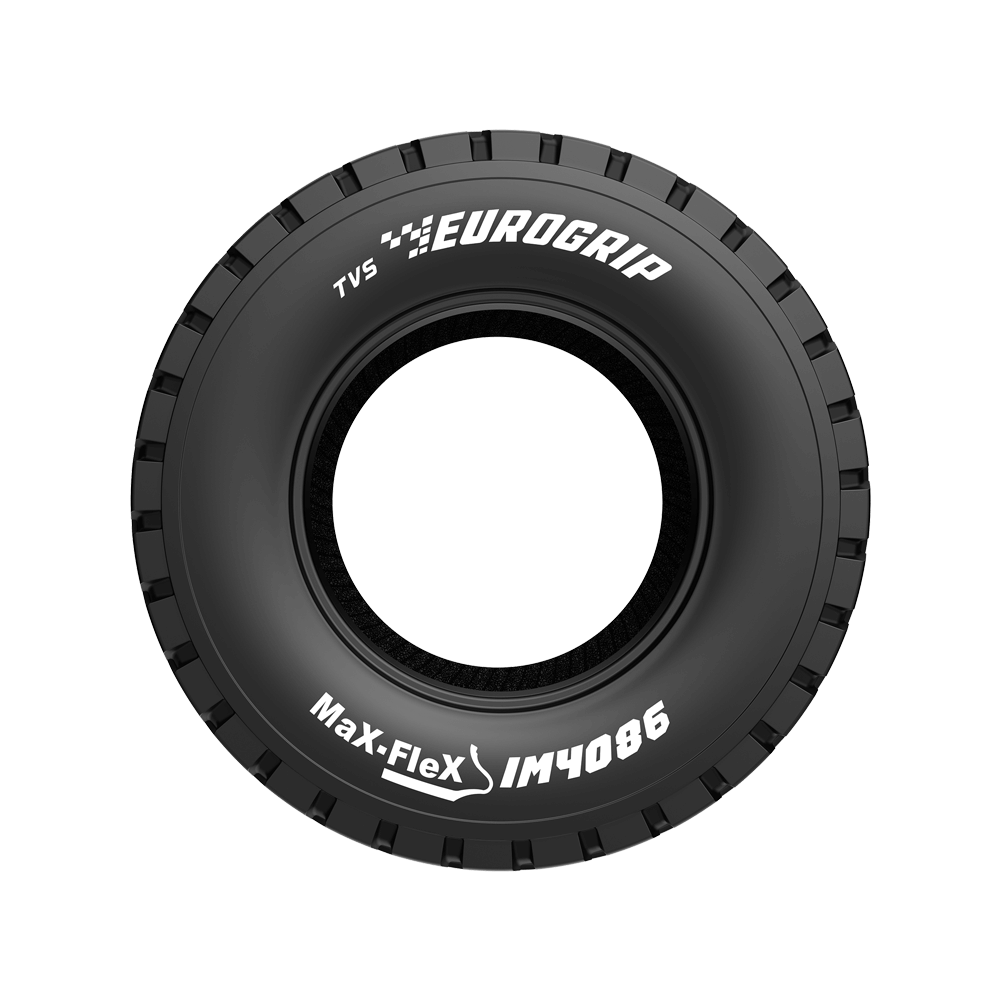

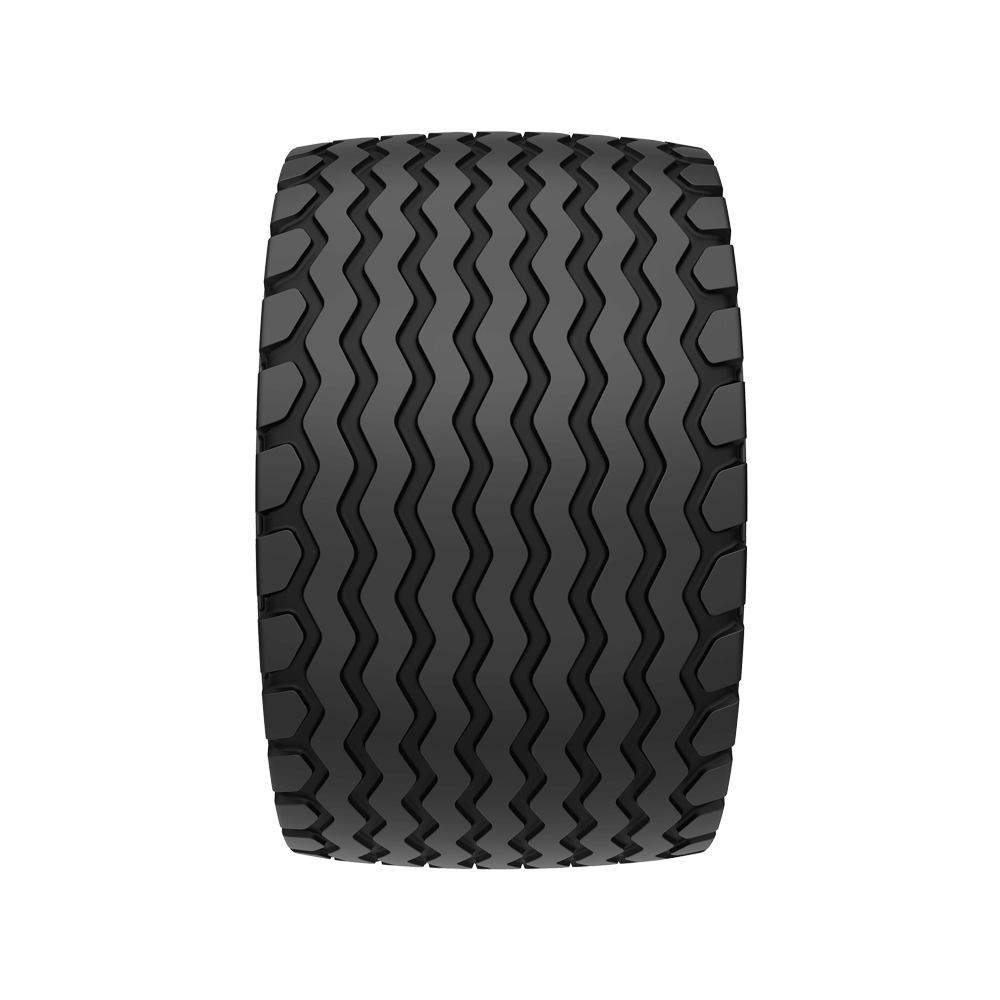

IM 4086

The TVS Eurogrip IM 4086 is a radial implement tyre specially designed for contemporary farming operations. It is suited for activities such as haulage, hay harvesting / baling and soil preparation applications. The premium tread compound used in the tyre enables it to achieve longer life cycle, be it on hard transport surfaces or soft field conditions. The low rolling resistance tread compound ensures that there is a notable increase in the fuel economy of the prime mover. VF technology, with its ability to use low inflation pressure, goes a long way in helping the tyre carry higher loads than standard radials and also cause minimum possible soil compaction.
 I-2
 D
 Radial
Suitable for
https://www.tvseurogripoht.com/?suitable-for=cultivator

Square Baler

Round Baler

https://www.tvseurogripoht.com/?suitable-for=cultivator

Seeder

Cultivator

Know more about this product

Technical Data

IMPERIAL

METRIC

Technical Table 01

TYRE SIZE RIM SIZE REC. RIM ALT. RIM UNLOADED DIMENSIONS (mm) PLY RATING LOAD INDEX SPEED SYMBOL
SW OD SLR RC
15.0/70-18 18 W13 W17
W19
400 980 440 2886 14 128 A8
16 132 A9
Technical Data
MM IN
Tyre Size REC. RIM ALT. RIM Unloaded dimension Loaded Static
Radius (in)
Rolling Circ.
(in)
LI & SS
SW (in) OD (in)
VF380/55R16.5 AG12.00 - 14.2 32.7 14.3 101.4 152D+
INFL.
PRESS
SPEED, mph
RECOMMENDED LOAD, lbs
Mixed Application
psi Static 6 16 19 25 31 37 40
12 5090 3630 3240 3130 2860 2600 2360 2210
17 6630 4740 4210 4070 3720 3370 3060 2890
23 8150 5810 5180 5000 4580 4140 3770 3550
29 9340 6670 5930 5730 5240 4760 4320 4060
35 10860 7750 6890 6650 6100 5530 5000 4720
41 12420 8850 7890 7600 6960 6320 5730 5400
46 13240 9450 8410 8130 7420 6740 6100 5760
52 14630 10420 9270 8960 8190 7440 6740 6350
58 15970 11390 10130 9780 8940 8130 7360 6940
73 18000 12820 11410 11040 10090 9140 8280 7820
VF410/50R16.5 AG11.75 - 16.1 32.9 14.2 99.9 153D+
INFL.
PRESS
SPEED, mph
RECOMMENDED LOAD, lbs
Mixed Application
psi Static 6 16 19 25 31 37 40
12 5220 3720 3300 3190 2930 2670 2400 2270
17 6700 4760 4250 4100 3740 3390 3080 2910
23 8110 5770 5150 4980 4540 4120 3740 3520
29 9630 6870 6100 5900 5400 4890 4430 4190
35 10750 7670 6830 6590 6010 5460 4960 4670
41 12310 8790 7820 7560 6890 6260 5680 5350
46 13440 9580 8520 8240 7530 6830 6190 5840
52 14690 10480 9320 9010 8240 7470 6760 6390
58 15970 11390 10130 9780 8940 8130 7360 6940
67 18500 13190 11740 11340 10370 9410 8520 8040
Tyre Size REC. RIM ALT. RIM Unloaded dimension Loaded Static
Radius (mm)
Rolling Circ.
(mm)
LI & SS
SW (mm) OD (mm)
VF380/55R16.5 AG12.00 - 360 830 362 2575 152D+
INFL.
PRESS
SPEED, KM/H
RECOMMENDED LOAD, KG
Mixed Application
Bar Static 10 25 30 40 50 60 65
0.8 2310 1650 1470 1420 1300 1180 1070 1005
1.2 3010 2150 1910 1850 1690 1530 1390 1310
1.6 3700 2640 2350 2270 2080 1880 1710 1610
2.0 4240 3030 2690 2600 2380 2160 1960 1845
2.4 4930 3520 3130 3020 2770 2510 2270 2145
2.8 5640 4020 3580 3450 3160 2870 2600 2450
3.2 6010 4290 3820 3690 3370 3060 2770 2615
3.6 6640 4730 4210 4070 3720 3380 3060 2885
4.0 7250 5170 4600 4440 4060 3690 3340 3150
5.0 8170 5820 5180 5010 4580 4150 3760 3550
VF410/50R16.5 AG11.75 - 410 835 360 2537 153D+
INFL.
PRESS
SPEED, KM/H
RECOMMENDED LOAD, KG
Mixed Application
Bar Static 10 25 30 40 50 60 65
0.8 2370 1690 1500 1450 1330 1210 1090 1030
1.2 3040 2160 1930 1860 1700 1540 1400 1320
1.6 3680 2620 2340 2260 2060 1870 1700 1600
2.0 4370 3120 2770 2680 2450 2220 2010 1900
2.4 4880 3480 3100 2990 2730 2480 2250 2120
2.8 5590 3990 3550 3430 3130 2840 2580 2430
3.2 6100 4350 3870 3740 3420 3100 2810 2650
3.6 6670 4760 4230 4090 3740 3390 3070 2900
4.0 7250 5170 4600 4440 4060 3690 3340 3150
4.6 8400 5990 5330 5150 4710 4270 3870 3650
Technical Data
Intl.
US
Tyre Size Rec. RIM
(inch)
Alt. RIM
(inch)
Unloaded dimensions (mm) Type Ply Rating Load Index & Speed Symbol Fabric Load table
Section Width Overall Diameter Static Load Radius Rolling Circumference

IM 4086
