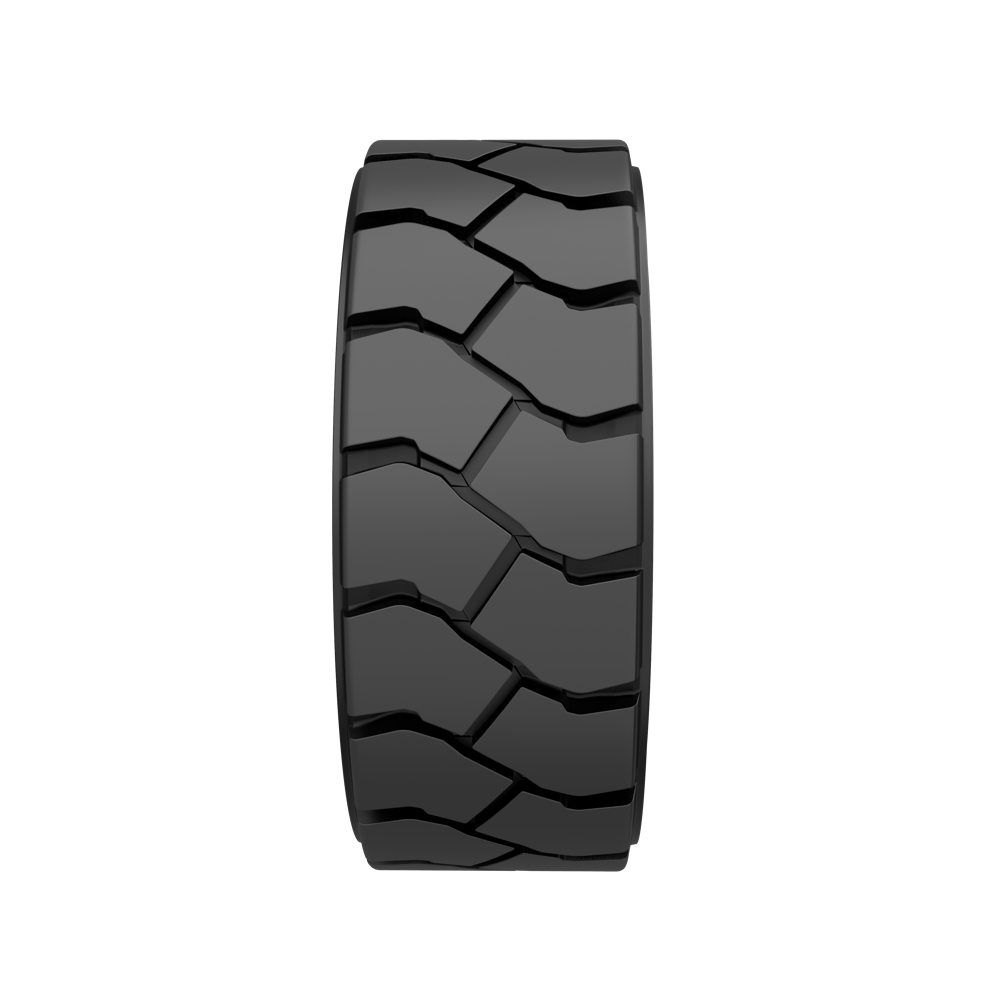

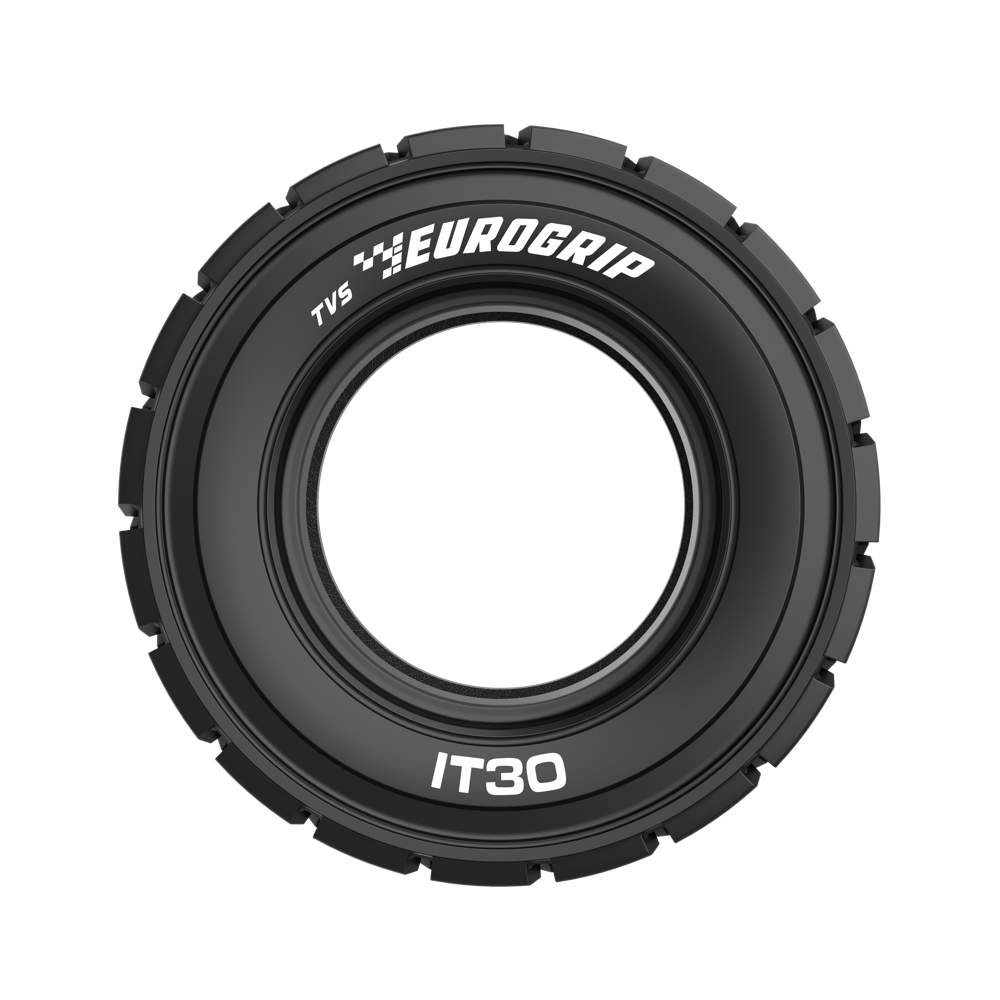

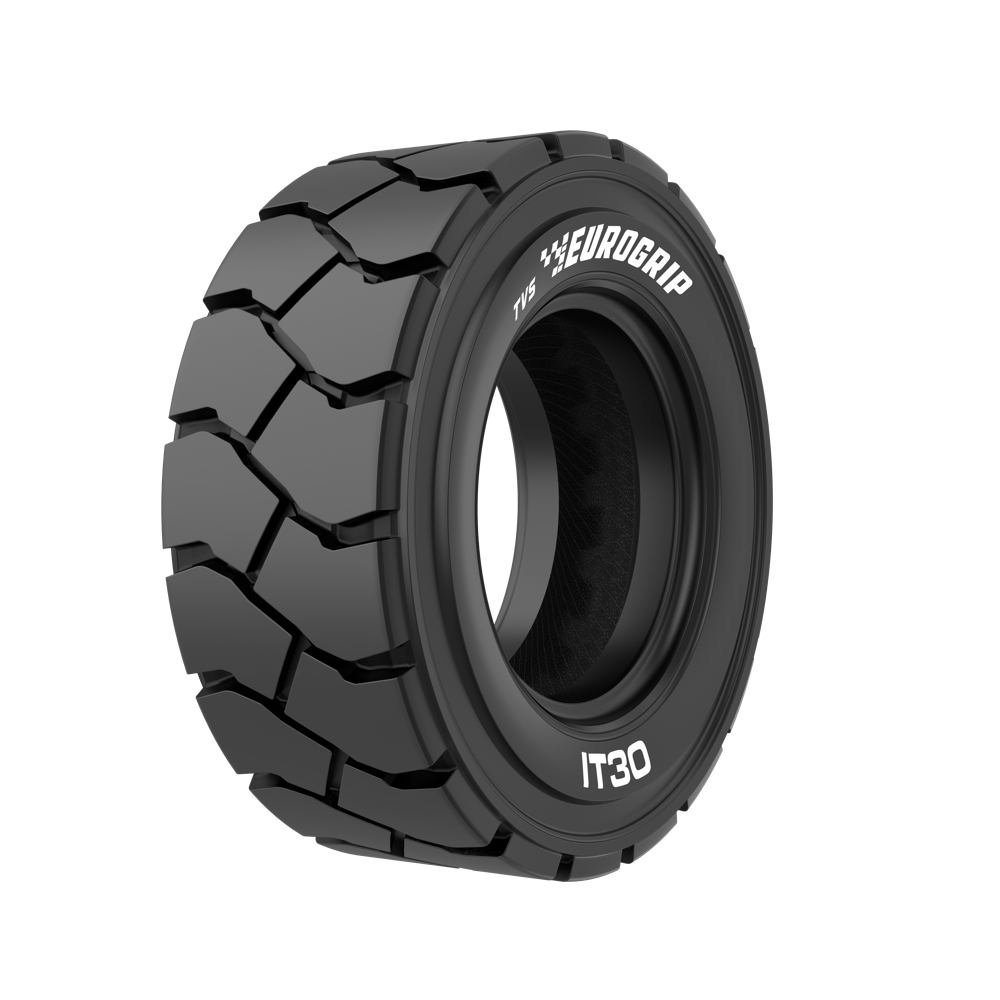

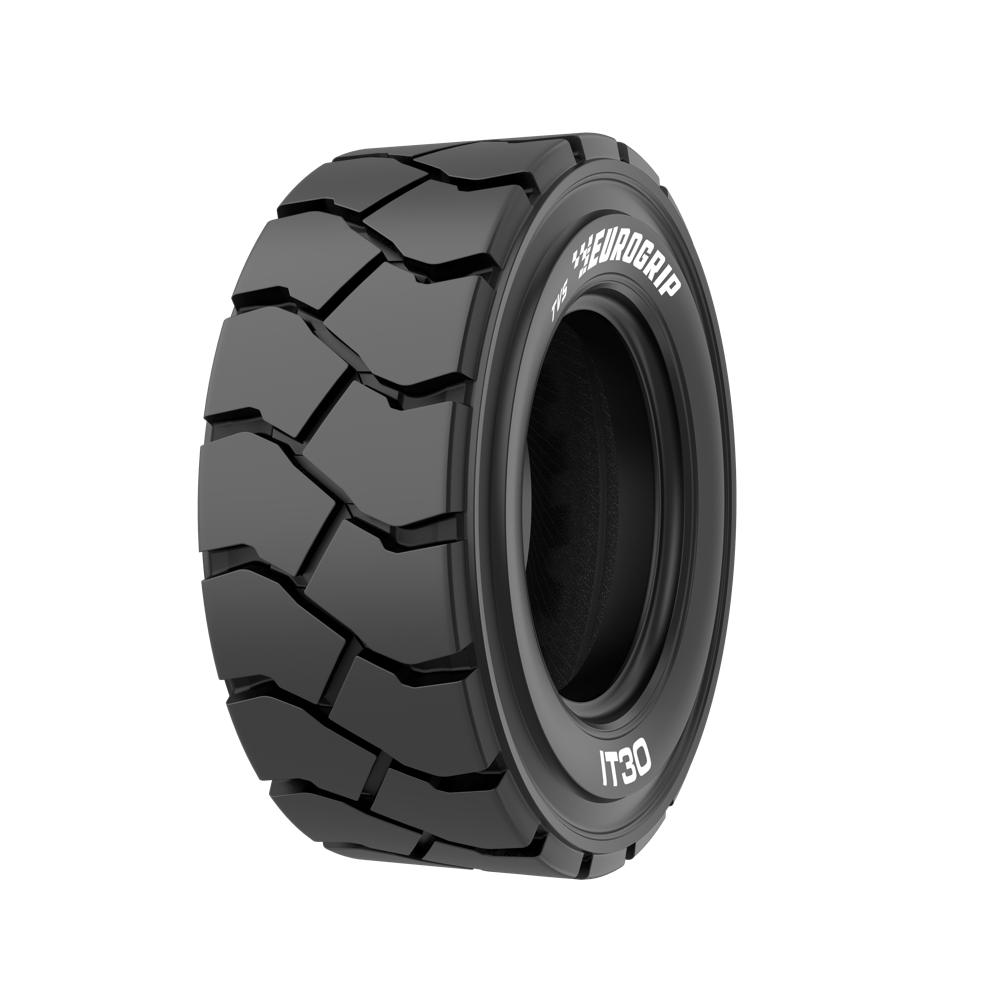

IT 30

The IT 30 IND-1 / IND-3 Industrial tyre for forklifts is designed with deep treads, which have abrasion and wear-resistant compound, to provide longer working life. It is ideal for 3 shift or round the clock operations. The strong sidewall, hardened casing and specially designed rim guard provides extra protection against punctures and damages.
 IND-1/IND-3
 A2
 Bias

Suitable for

Forklift

Heavy Duty Forklift

Empty Container Handler

Know more about this product

Enquire
Enquire now
Enquire now
Technical Data

IMPERIAL

METRIC

Technical Table 01

TYRE SIZE RIM SIZE REC. RIM ALT. RIM UNLOADED DIMENSIONS (mm) PLY RATING LOAD INDEX SPEED SYMBOL
SW OD SLR RC
15.0/70-18 18 W13 W17
W19 		400 980 440 2886 14 128 A8
16 132 A9
Technical Data
MM IN
Tyre Size TRA CODE Tube Valve Flap REC. RIM Width (inch) ALT. RIM Width (inch) Unloaded Inflated
Dimensions ± 2%		 PR LI & SS
SW (inch) OD (inch)
5.00-8 IND-1 5.00-8 T 45 56 5.00-8 3.00D 3.25I 5.9 19.1 8 106A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
2725 2095 2725 2095 3165 120
5.00-8 IND-1 5.00-8 T 45 56 5.00-8 3.00D 3.25I 5.9 19.1 10 111A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
3120 2405 3120 2405 3625 145
5.00-8 IND-1 5.00-8 T 45 56 5.00-8 3.00D 3.25I 5.9 19.1 12 112A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
3210 2470 3210 2470 3725 152
16x6-8 IND-1 16x6-8 T 45 56 16x6-8 4.33 - 6.1 16.5 18 114A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
3385 2600 3385 2600 3925 152
18x7-8 IND-1 18x7-8 T 45 56 18x7-8 4.33R 5.00F 6.9 18.3 16 125A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
4730 3640 4730 3640 5490 145
18x7-8 IND-1 18x7-8 T 45 56 18x7-8 4.33R 5.00F 6.9 18.3 18 126A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
4875 3750 4875 3750 5655 152
6.00-9 IND-1 6.00-9 T 45 56 21x9/ 6.00-9 4.00E - 6.7 21.3 10 118A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
3780 2910 3780 2910 4400 123
6.00-9 IND-1 6.00-9 T 45 56 21x9/ 6.00-9 4.00E - 6.7 21.3 14 122A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
4290 3295 4290 3295 4970 152
21x8-9 IND-1 21x8-9 T 45 56 21x9/ 6.00-9 6.00E 7.00E 8.5 20.9 16 134A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
4675 6075 4675 6075 7055 145
21x8-9 IND-1 21x8-9 T 45 56 21x9/ 6.00-9 6.00E 7.00E 8.5 20.9 18 135A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
6250 4805 6250 4805 7255 152
6.50-10 IND-1 6.50-10 T 45 56 6.50/ 7.50-10 5.00F 5.50F 7.5 23.2 10 122A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
4300 3310 4300 3310 4995 112
6.50-10 IND-1 6.50-10 T 45 56 6.50/ 7.50-10 5.00F 5.50F 7.5 23.2 12 125A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
4730 3640 4730 3640 5490 131
6.50-10 IND-1 6.50-10 T 45 56 6.50/ 7.50-10 5.00F 5.50F 7.5 23.2 14 128A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
5160 3970 5160 3970 6000 145
23x9-10 IND-1 23x9-10 T 45 56 23x9-10 6.50F - 9.1 23.0 18 139A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
6970 5360 6970 5360 8090 131
23x9-10 IND-1 23x9-10 T 45 56 23x9-10 6.50F - 9.1 23.0 20 142A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
7595 5845 7595 5845 8820 145
23x9-10 IND-1 23x9-10 T 45 56 23x9-10 6.50F - 9.1 23.0 22 143A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
7830 6020 7830 6020 9085 152
7.00-12 IND-1 7.00-12 TR75A 7.00/ 8.25-12 5.00S - 7.9 26.6 12 133A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
5910 4540 5910 4540 6860 123
7.00-12 IND-1 7.00-12 TR75A 7.00/ 8.25-12 5.00S - 7.9 26.6 14 134A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
6075 4675 6075 4675 7055 131
7.00-12 IND-1 7.00-12 TR75A 7.00/ 8.25-12 5.00S - 7.9 26.6 16 136A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
6415 4940 6415 4940 7455 145
23x10.1-12 IND-1 23x10.1-12/ 23.5x11-12 TR75A 23x10.1-12 8.00G - 10.2 23.6 18 141A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
7455 5735 7455 5735 8655 131
23x10.1-12 IND-1 23x10.1-12/ 23.5x11-12 TR75A 23x10.1-12 8.00G - 10.2 23.6 22 146A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
8555 6580 8555 6580 9935 152
27x10-12 IND-1 27x10-12 TR75A 27x10-12 8.00G - 10.2 27.4 16 146A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
8600 6615 8600 6615 9990 116
27x10-12 IND-1 27x10-12 TR75A 27x10-12 8.00G - 10.2 27.4 20 152A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
10175 7830 10175 7830 11820 145
27x10-12 IND-1 27x10-12 TR75A 27x10-12 8.00G - 10.2 27.4 24 158A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
10465 8050 10465 8050 12150 152
7.00-15 IND-1 7.00-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.00BD 5.50BD 8.1 29.1 12 138A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
6770 5205 6770 5205 7860 120
7.00-15 IND-1 7.00-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.00BD 5.50BD 8.1 29.1 14 141A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
7385 5680 7385 5680 8575 131
7.00-15 IND-1 7.00-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.00BD 5.50BD 8.1 29.1 16 143A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
7815 6010 7815 6010 9075 145
7.50-15 IND-1 7.50-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6 6.5 8.9 30.9 14 144A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
8025 6175 8025 6175 9325 134
7.50-15 IND-1 7.50-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6 6.5 8.9 30.9 16 146A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
8600 6615 8600 6615 9990 145
8.25-15 IND-1 8.25-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.5 6.00/7 9.8 32.9 14 149A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
9315 7165 9315 7165 10825 116
8.25-15 IND-1 8.25-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.5 6.00/7 9.8 32.9 16 152A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
10175 7830 10175 7830 11820 134
250-15 IND-1 250-15 TR75A 250/300-15 7.5 - 9.6 28.9 16 150A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
9605 7385 9605 7385 11155 120
250-15 IND-1 250-15 TR75A 250/300-15 7.5 - 9.6 28.9 18 153A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
10465 8050 10465 8050 12150 138
250-15 IND-1 250-15 TR75A 250/300-15 7.5 - 9.6 28.9 20 155A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
11115 8545 11115 8545 12900 145
300-15 IND-1 300-15 TR75A 250/300-15 8 - 11.0 32.3 16 156A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
11325 8710 11325 8710 13155 87
300-15 IND-1 300-15 TR75A 250/300-15 8 - 11.0 32.3 18 160A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
12900 9925 12900 9925 14985 109
300-15 IND-1 300-15 TR75A 250/300-15 8 - 11.0 32.3 20 164A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
14335 11025 14335 11025 16650 131
28x12.5-15 IND-1 28x12.5-15 TR75A 28x12.5-15/ 32x12.1-15 9.75 - 12.0 28.0 24 154A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
10695 8225 10695 8225 12415 152
32x12.1-15 IND-1 32x12.1-15 TR75A 28x12.5-15/ 32x12.1-15 9.75 - 12.8 31.9 24 163A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
13860 10660 13860 10660 16095 149
10.00-20 IND-3 10.00x20 TR29 12.00-20 7.5 8 11.4 42.1 16 164A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
14335 11025 14335 11025 16650 131
10.00-20 IND-3 10.00x20 TR29 12.00-20 7.5 8 11.4 42.1 20 166A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
15250 11730 15250 11730 17715 145
12.00-20 IND-3 12.00x20 TR78A 12.00-20 8.5 9 12.6 45.1 16 173A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
18590 14300 18590 14300 21585 131
12.00-20 IND-3 12.00x20 TR78A 12.00-20 8.5 9 12.6 45.1 18 174A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
19195 14760 19195 14760 22295 138
12.00-20 IND-3 12.00x20 TR78A 12.00-20 8.5 9 12.6 45.1 20 175A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
19780 15215 19780 15215 22975 145
12.00-20 IND-3 12.00x20 TR78A 12.00-20 8.5 9 12.6 45.1 24 179A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
22125 17025 22125 17025 25700 152
14.00-24 IND-3 - - - 10.00W - 15.6 53.5 24 186A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
27230 20950 27230 20950 31630 145
Tyre Size TRA CODE Tube Valve Flap REC. RIM Width (inch) ALT. RIM Width (inch) Unloaded Inflated
Dimensions ± 2%		 PR LI & SS
SW (mm) OD (mm)
5.00-8 IND-1 5.00-8 T 45 56 5.00-8 3.00D 3.25I 150 485 8 106A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
1235 950 1235 950 1435 825
5.00-8 IND-1 5.00-8 T 45 56 5.00-8 3.00D 3.25I 150 485 10 111A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
1415 1090 1415 1090 1645 1000
5.00-8 IND-1 5.00-8 T 45 56 5.00-8 3.00D 3.25I 150 485 12 112A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
1455 1120 1455 1120 1690 1050
16x6-8 IND-1 16x6-8 T 45 56 16x6-8 4.33 - 155 420 18 114A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
1535 1180 1535 1180 1780 1050
18x7-8 IND-1 18x7-8 T 45 56 18x7-8 4.33R 5.00F 175 465 16 125A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
2145 1650 2145 1650 2490 1000
18x7-8 IND-1 18x7-8 T 45 56 18x7-8 4.33R 5.00F 175 465 18 126A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
2210 1700 2210 1700 2565 1050
6.00-9 IND-1 6.00-9 T 45 56 21x9/ 6.00-9 4.00E - 170 540 10 118A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
1715 1320 1715 1320 1995 850
6.00-9 IND-1 6.00-9 T 45 56 21x9/ 6.00-9 4.00E - 170 540 14 122A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
1945 1495 1945 1495 2255 1050
21x8-9 IND-1 21x8-9 T 45 56 21x9/ 6.00-9 6.00E 7.00E 215 530 16 134A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
2755 2120 2755 2120 3200 1000
21x8-9 IND-1 21x8-9 T 45 56 21x9/ 6.00-9 6.00E 7.00E 215 530 18 135A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
2835 2180 2835 2180 3290 1050
6.50-10 IND-1 6.50-10 T 45 56 6.50/ 7.50-10 5.00F 5.50F 190 590 10 122A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
1950 1500 1950 1500 2265 775
6.50-10 IND-1 6.50-10 T 45 56 6.50/ 7.50-10 5.00F 5.50F 190 590 12 125A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
2145 1650 2145 1650 2490 900
6.50-10 IND-1 6.50-10 T 45 56 6.50/ 7.50-10 5.00F 5.50F 190 590 14 128A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
2340 1800 2340 1800 2720 1000
23x9-10 IND-1 23x9-10 T 45 56 23x9-10 6.50F - 230 585 18 139A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
3160 2430 3160 2430 3670 900
23x9-10 IND-1 23x9-10 T 45 56 23x9-10 6.50F - 230 585 20 142A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
3445 2650 3445 2650 4000 1000
23x9-10 IND-1 23x9-10 T 45 56 23x9-10 6.50F - 230 585 22 143A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
3550 2730 3550 2730 4120 1050
7.00-12 IND-1 7.00-12 TR75A 7.00/ 8.25-12 5.00S - 200 675 12 133A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
2680 2060 2680 2060 3110 850
7.00-12 IND-1 7.00-12 TR75A 7.00/ 8.25-12 5.00S - 200 675 14 134A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
2755 2120 2755 2120 3200 900
7.00-12 IND-1 7.00-12 TR75A 7.00/ 8.25-12 5.00S - 200 675 16 136A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
2910 2240 2910 2240 3380 1000
23x10.1-12 IND-1 23x10.1-12/ 23.5x11-12 TR75A 23x10.1-12 8.00G - 260 600 18 141A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
3380 2600 3380 2600 3925 900
23x10.1-12 IND-1 23x10.1-12/ 23.5x11-12 TR75A 23x10.1-12 8.00G - 260 600 22 146A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
3880 2985 3880 2985 4505 1050
27x10-12 IND-1 27x10-12 TR75A 27x10-12 8.00G - 260 695 16 146A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
3900 3000 3900 3000 4530 800
27x10-12 IND-1 27x10-12 TR75A 27x10-12 8.00G - 260 695 20 152A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
4615 3550 4615 3550 5360 1000
27x10-12 IND-1 27x10-12 TR75A 27x10-12 8.00G - 260 695 24 158A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
4745 3650 4745 3650 5510 1050
7.00-15 IND-1 7.00-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.00BD 5.50BD 205 740 12 138A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
3070 2360 3070 2360 3565 825
7.00-15 IND-1 7.00-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.00BD 5.50BD 205 740 14 141A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
3350 2575 3350 2575 3890 900
7.00-15 IND-1 7.00-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.00BD 5.50BD 205 740 16 143A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
3545 2725 3545 2725 4115 1000
7.50-15 IND-1 7.50-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6 6.5 225 785 14 144A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
3640 2800 3640 2800 4230 925
7.50-15 IND-1 7.50-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6 6.5 225 785 16 146A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
3900 3000 3900 3000 4530 1000
8.25-15 IND-1 8.25-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.5 6.00/7 250 835 14 149A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
4225 3250 4225 3250 4910 800
8.25-15 IND-1 8.25-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.5 6.00/7 250 835 16 152A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
4615 3550 4615 3550 5360 925
250-15 IND-1 250-15 TR75A 250/300-15 7.5 - 245 735 16 150A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
4355 3350 4355 3350 5060 825
250-15 IND-1 250-15 TR75A 250/300-15 7.5 - 245 735 18 153A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
4745 3650 4745 3650 5510 950
250-15 IND-1 250-15 TR75A 250/300-15 7.5 - 245 735 20 155A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
5040 3875 5040 3875 5850 1000
300-15 IND-1 300-15 TR75A 250/300-15 8 - 280 820 16 156A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
5135 3950 5135 3950 5965 600
300-15 IND-1 300-15 TR75A 250/300-15 8 - 280 820 18 160A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
5850 4500 5850 4500 6795 750
300-15 IND-1 300-15 TR75A 250/300-15 8 - 280 820 20 164A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
6500 5000 6500 5000 7550 900
28x12.5-15 IND-1 28x12.5-15 TR75A 28x12.5-15/ 32x12.1-15 9.75 - 305 710 24 154A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
4850 3730 4850 3730 5630 1050
32x12.1-15 IND-1 32x12.1-15 TR75A 28x12.5-15/ 32x12.1-15 9.75 - 325 810 24 163A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
6285 4835 6285 4835 7300 1030
10.00-20 IND-3 10.00x20 TR29 12.00-20 7.5 8 290 1070 16 164A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
6500 5000 6500 5000 7550 900
10.00-20 IND-3 10.00x20 TR29 12.00-20 7.5 8 290 1070 20 166A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
6915 5320 6915 5320 8035 1000
12.00-20 IND-3 12.00x20 TR78A 12.00-20 8.5 9 320 1145 16 173A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
8430 6485 8430 6485 9790 900
12.00-20 IND-3 12.00x20 TR78A 12.00-20 8.5 9 320 1145 18 174A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
8705 6695 8705 6695 10110 950
12.00-20 IND-3 12.00x20 TR78A 12.00-20 8.5 9 320 1145 20 175A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
8970 6900 8970 6900 10420 1000
12.00-20 IND-3 12.00x20 TR78A 12.00-20 8.5 9 320 1145 24 179A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
10035 7720 10035 7720 11655 1050
14.00-24 IND-3 - - - 10.00W - 395 1360 24 186A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
12350 9500 12350 9500 14345 1000
Technical Data
Intl.
US
Tyre Size Rec. RIM
(inch)		 Alt. RIM
(inch)		 Unloaded dimensions (mm) Type Ply Rating Load Index & Speed Symbol Fabric Load table
Section Width Overall Diameter Static Load Radius Rolling Circumference

IT 30

https://preview.daddy3d.com/TVS/IT30_10181/index.html
