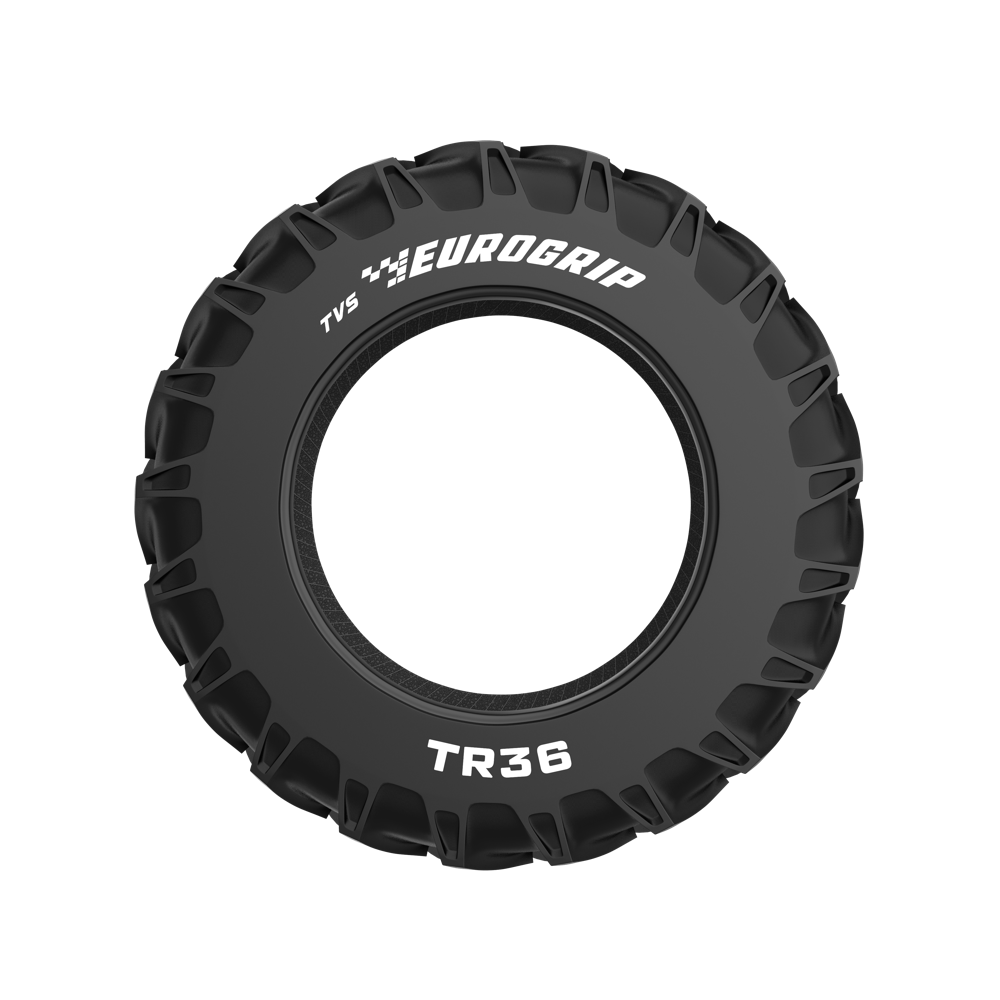

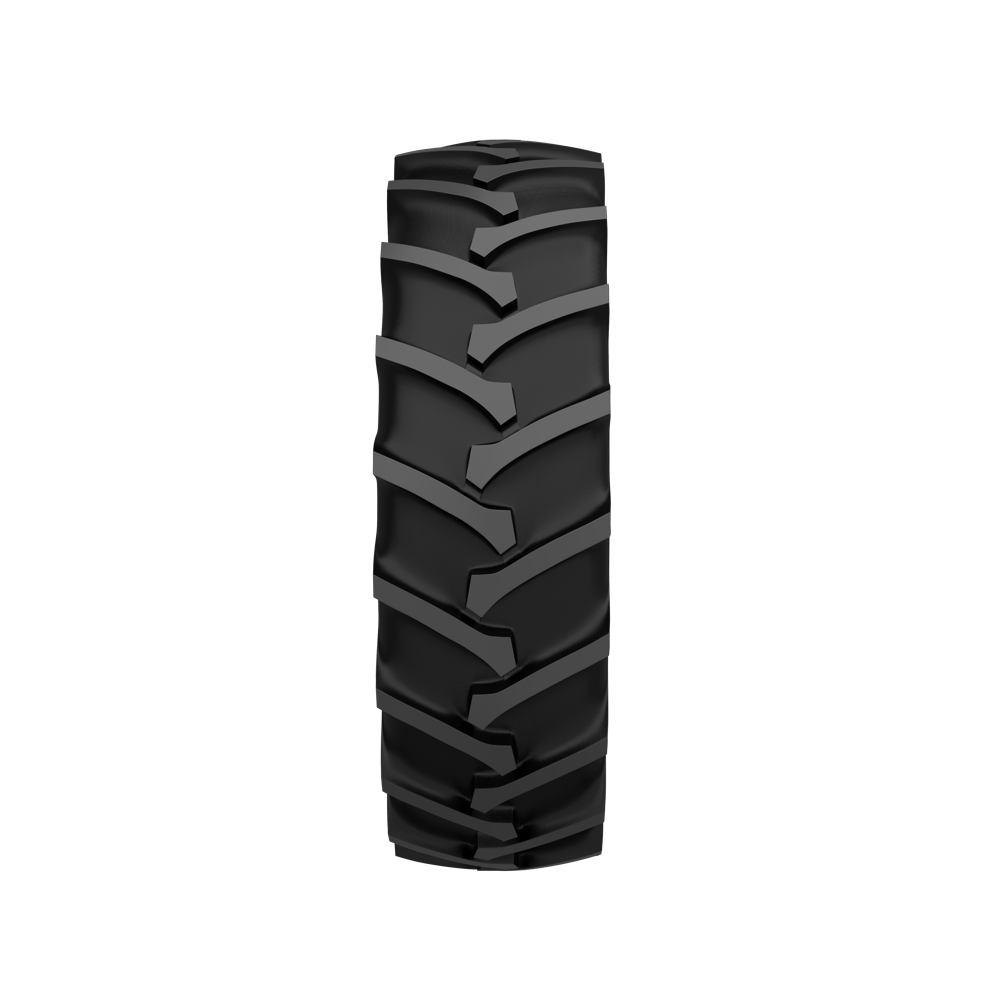

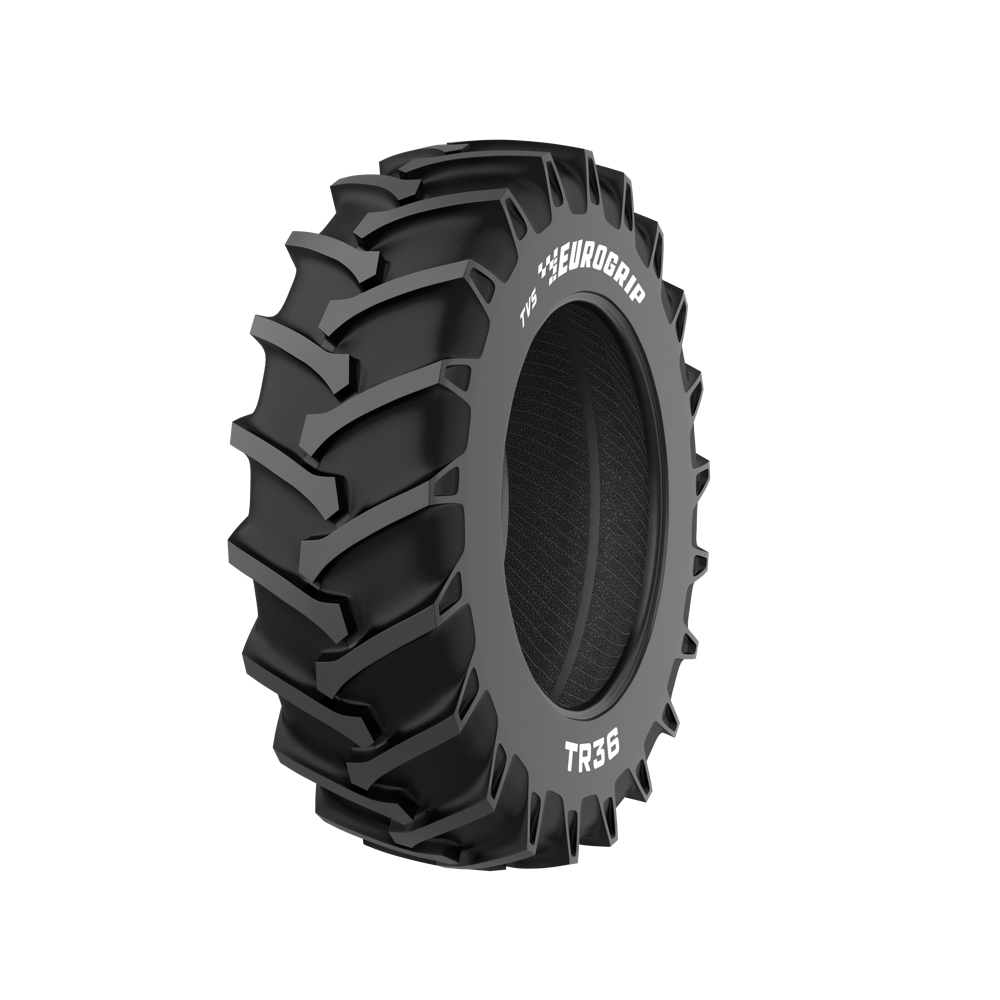

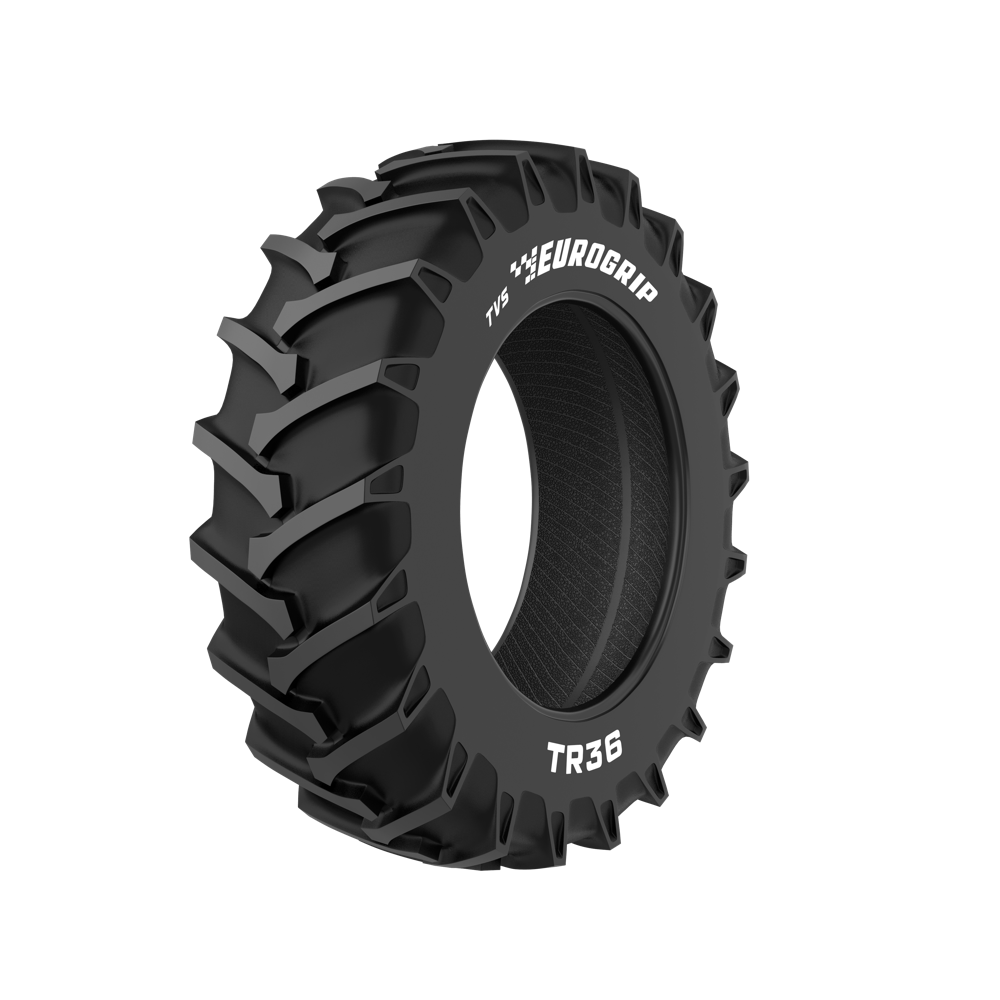

Tractor Drive Tyres
TR 36
The TVS Eurogrip TR 36 R-1 tyre is designed for harvesting and agri-transport applications. The ideally spaced R-1 lugs provide excellent traction and self-cleaning. The reinforced carcass helps in better puncture protection and better load carrying capacity.
It is suited for Combine Harvesters, Tractors, spreaders / tankers, and grain wagons.
R-1
A8
Bias
Suitable for
Tractor 2WD
Tractor MFWD
Technical Data
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | REC. RIM (inch) | Unloaded dimensions | Ply Rating | Type | LI & SS | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SW (in) | OD (in) | SLR (in) | RC (in) | |||||||||||||||||||||
| 23.1-26 | DW20 | 23.7 | 63.2 | 27.6 | 182.9 | 12 | TT | 153A8+ | ||||||||||||||||
|
||||||||||||||||||||||||
| 23.1-26 | DW20 | 23.7 | 63.2 | 27.6 | 182.9 | 16 | TL | 159A8+ | ||||||||||||||||
|
||||||||||||||||||||||||
| 23.1-26 | DW20 | 23.7 | 63.2 | 27.6 | 182.9 | 18 | TL | 162A8+ | ||||||||||||||||
|
||||||||||||||||||||||||
| Tyre Size | REC. RIM (mm) | Unloaded dimensions | Ply Rating | Type | LI & SS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SW (mm) | OD (mm) | SLR (mm) | RC (mm) | ||||||||||||||
| 23.1-26 | DW20 | 603 | 1606 | 703 | 4648 | 12 | TT | 153A8+ | |||||||||
|
|||||||||||||||||
| 23.1-26 | DW20 | 603 | 1606 | 703 | 4648 | 16 | TL | 159A8+ | |||||||||
|
|||||||||||||||||
| 23.1-26 | DW20 | 603 | 1606 | 703 | 4648 | 18 | TL | 162A8+ | |||||||||
|
|||||||||||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
